GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
3-68 Section 3-14 - Agent Configuration (R3 only)
3-14-1-3 Verifying Back Office Connection – VOC
1) On Console, invoke “Disruptive Mode” and “VCO” by left click “GE ICON” and select “Connect
Clinical Lifeline
2) Login to FFA Site from Remote PC using Chrome web browser
As of 2018, FFA Site address is https://ffa.am.health.ge.com
3) In System ID field, type the CRM Number of the machine and select [Get Started]

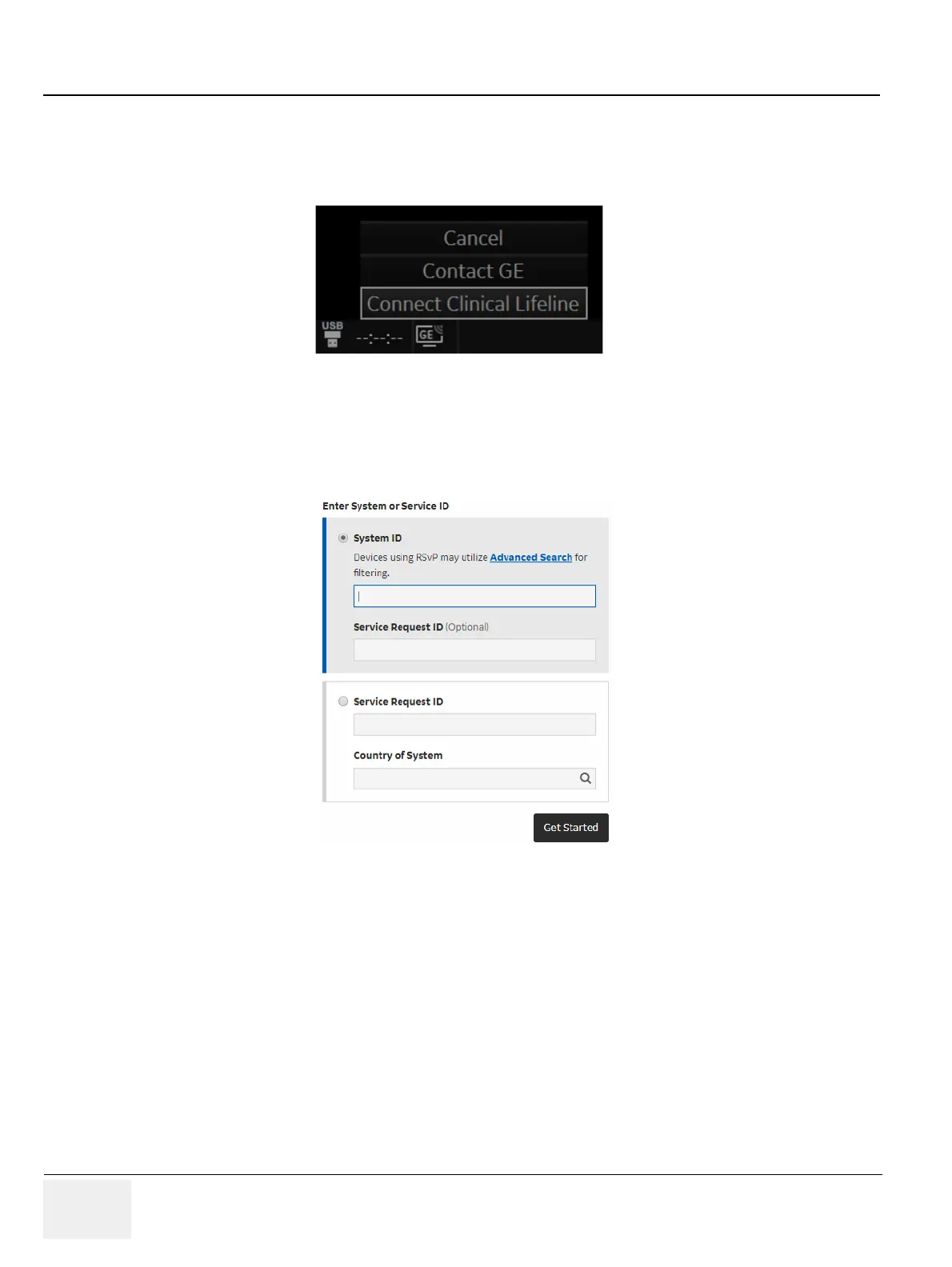

Figure 3-43 Connecting Clinical Lifeline
Figure 3-44 FFA Site

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
