7-10 Section 7-4 - Screen Captures and Logs

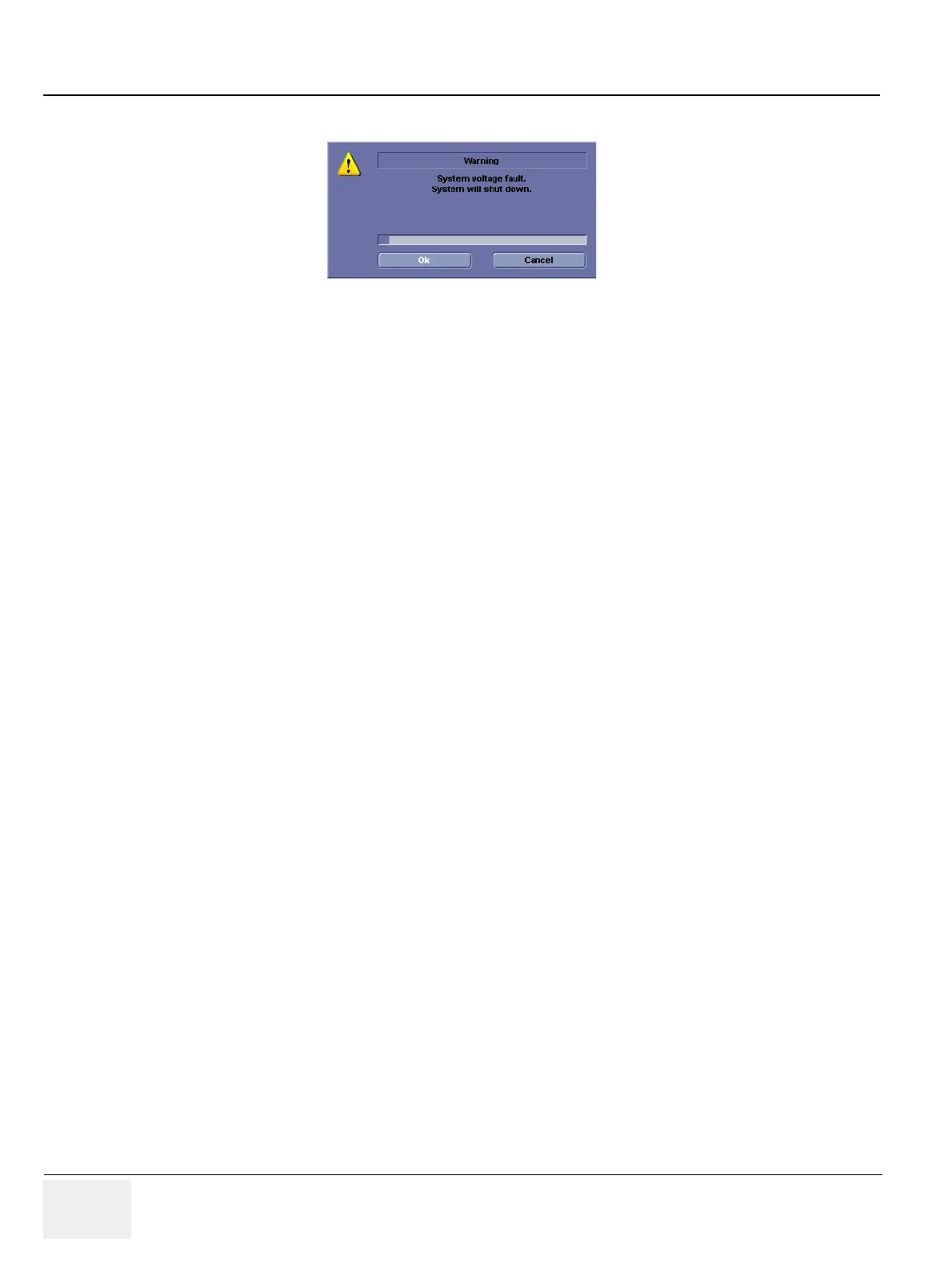

7-4-3-3 System voltage failure
7-4-3-3-1 Cause
System detected unexpected voltage level from voltage level monitoring circuits.
7-4-3-3-2 What to Do
1) Press OK and reboot the system.
2) If problem persists, then shut down the system, turn OFF breaker and reboot.
7-4-3-3-3 Log message of the Voltage error
(Example)
Error ; acqHouseKeeping(540); MCB_AFE_3V3_0= 2.5 outside tolerance limits. UpperBound =
3.6 LowerBound = 2.970, Soft Limits are usually narrower than upperBound and lower bound

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
