4-3-2 Mechanical Parts Functional Check

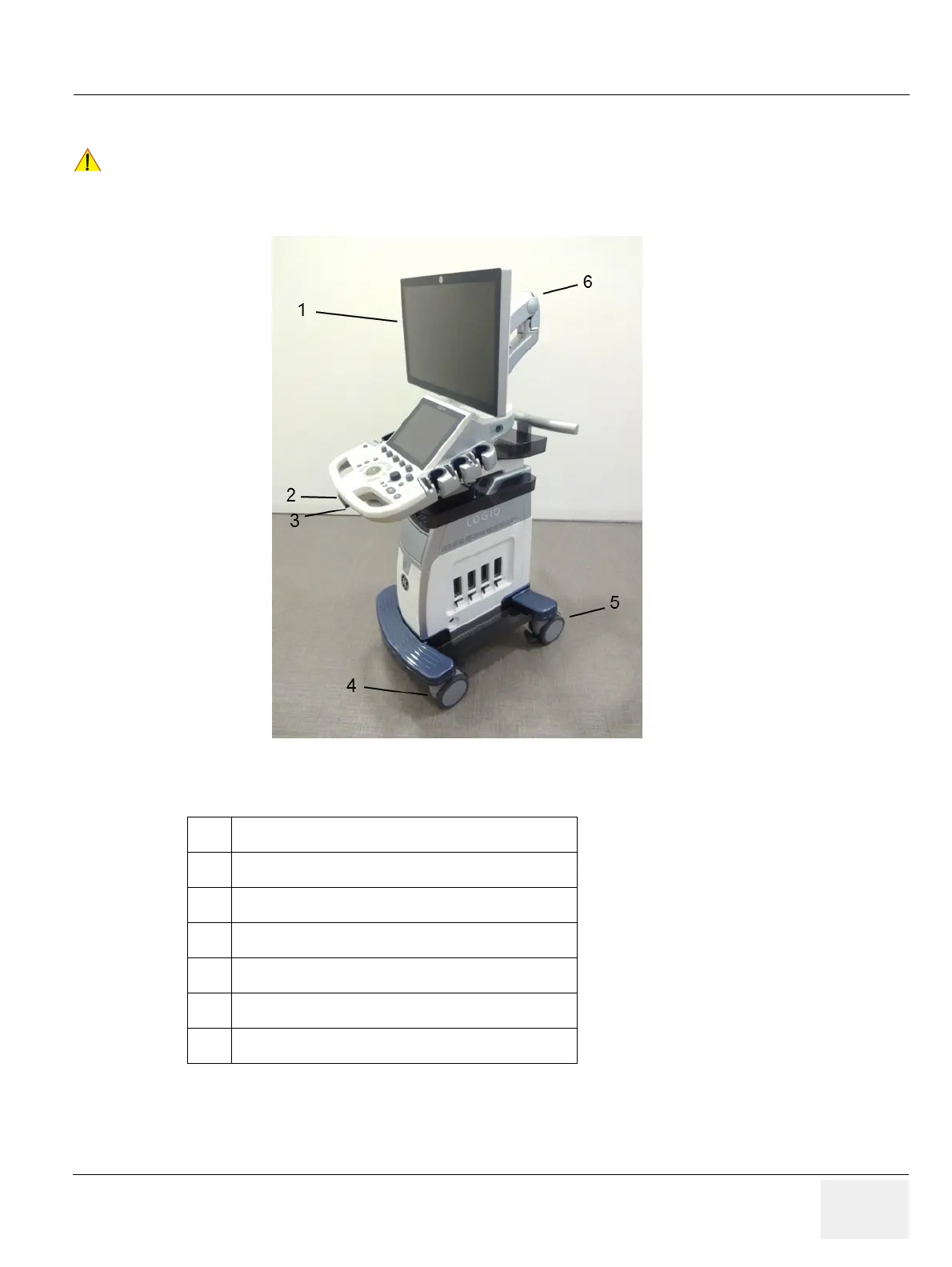

Figure 4-4 System Mechanical Checkpoint
CAUTION
!! CAUTION:
Pay attention to moving parts and pinch point when performing mechanical parts functional
check.
Location
1
Main LCD
2
OPIO Swivel Lock
3
OPIO UP_DOWN Lock
4
Total Lock Caster
5
Swivel-Lock Caster
6
LCD Arm
