8-82 Section 8-14 - Replacement of OPIO and Related Parts

Section 8-14

Replacement of OPIO and Related Parts

NOTE: This section describes removal and installation of OPIO and related parts.

OPIO Assy itself, Main PWA Assy, LCD Touch module Assy, HUB Board, Encoder, Freeze key Assy,

OPIO AN Key & Gel warmer board and Trackball Assy.

8-14-1 Manpower

1 person, 5 minutes.

8-14-2 Tools

Standard Phillips Screwdriver.

8-14-3 Removal Procedure

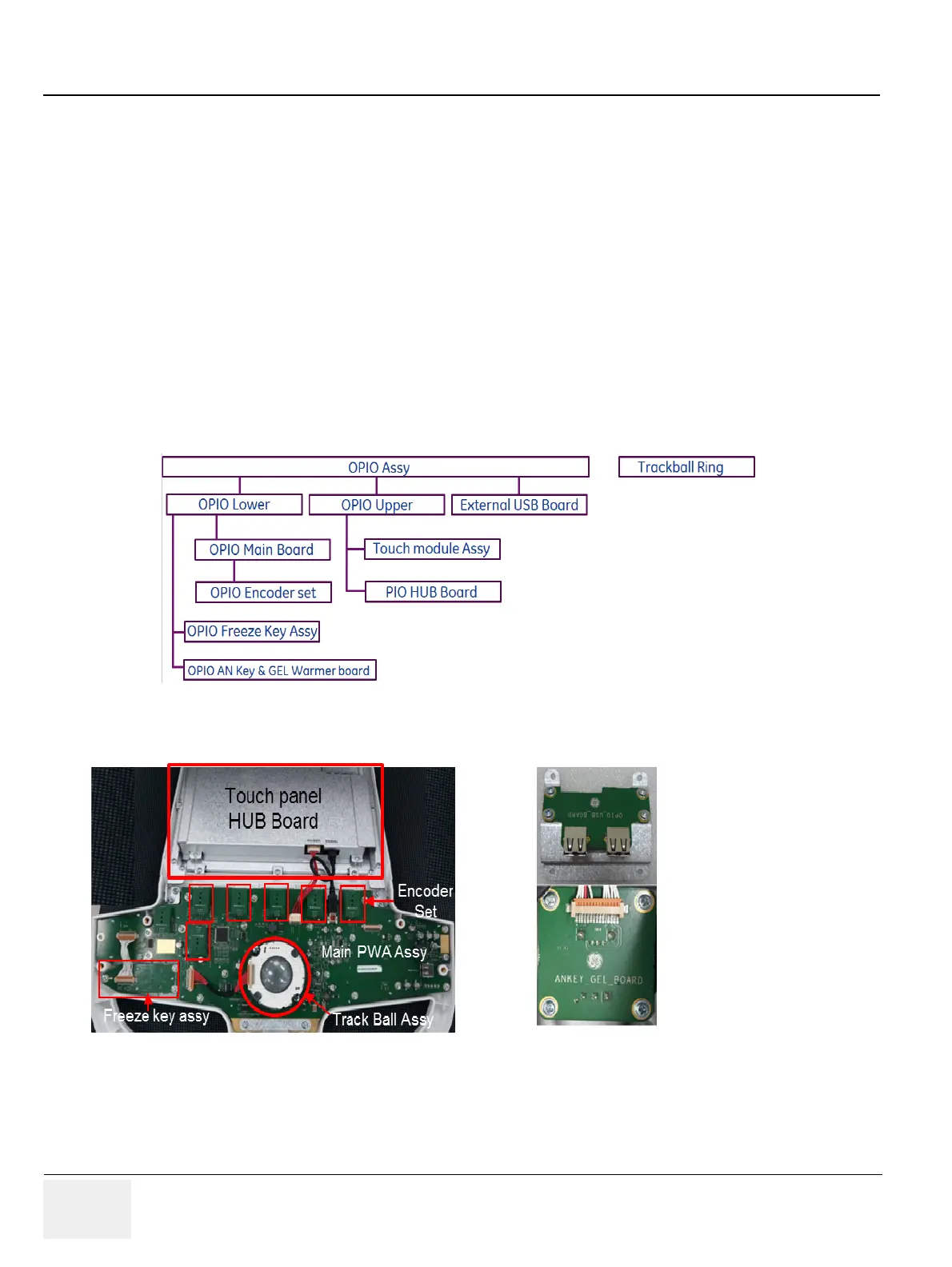

Nesting of the parts are as follows.

For example, to access Encoder for repair, OP Panel must be removed and then OPIO Main PWA assy

must be removed.

Figure 8-72 OP Panel Assy

External USB Board

OPIO AN Key & GEL

Warmer board

Main Page
