8-17-15 Separating HDD

1) Open the front cover. (refer to section 8-6)

2) Remove 4 screws around HDD Bracket Refer to following figure.

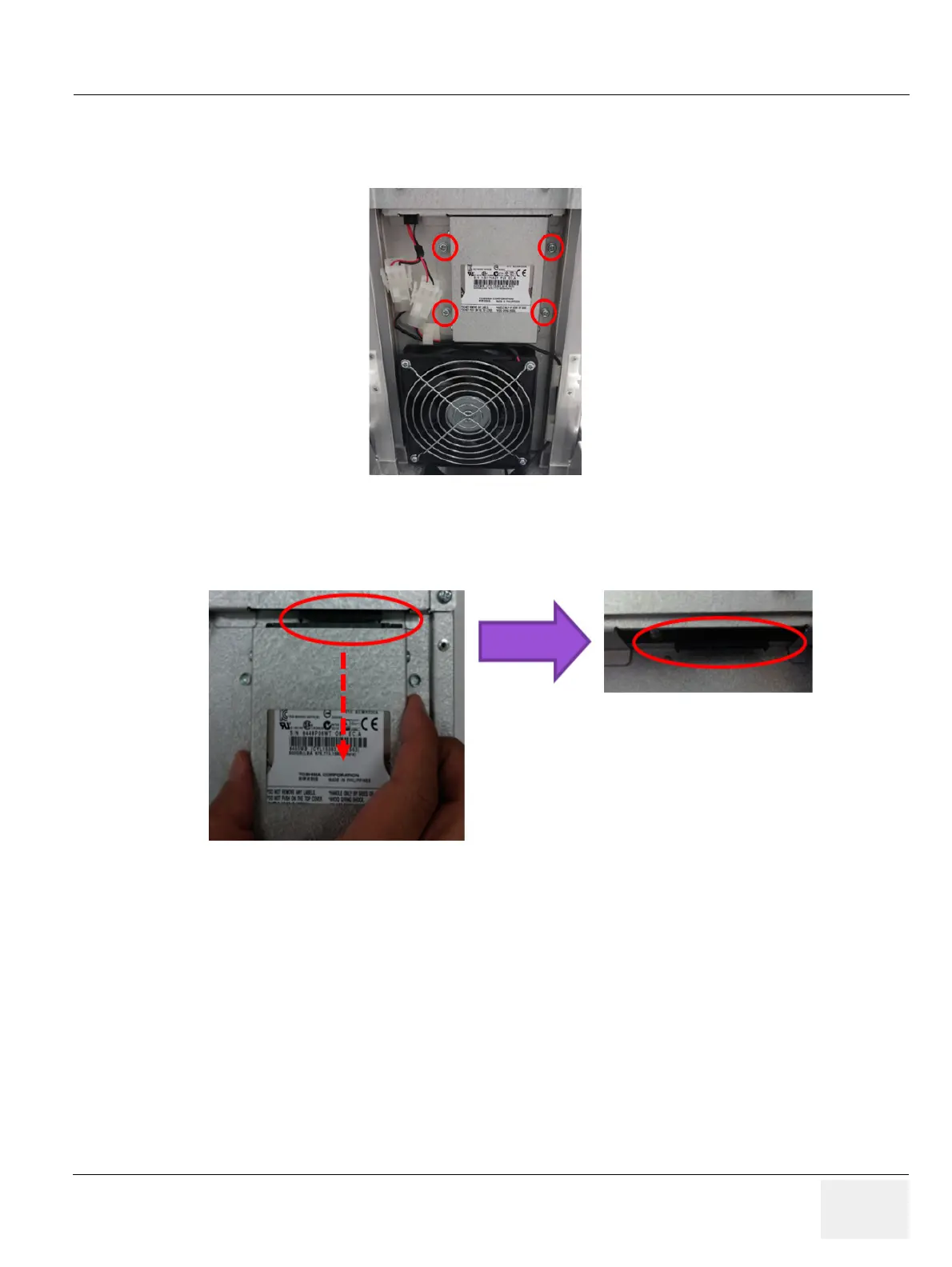

Figure 8-131 Screw points around HDD Bracket.

3) Carefully pull down HDD assy. Refer to following figure.

NOTE: Be careful not to damage HDD connector

Figure 8-132 Removal of HDD assy and position of HDD connector
