6-2 Section 6-3 - LCD Monitor Adjustment
Section 6-3
LCD Monitor Adjustment
The LOGIQ P9/P7 has a free adjustable LCD monitor in relation to the user interface.
The digital control panel is located at the front of the color monitor. It is NOT recommended to change
the pre-adjusted settings. However, if you are not satisfied with the factory settings, use these
controls to program those you prefer in each resolution.
NOTE: All changed values will only be saved by selecting “Exit” from the OSD.
If not, the adjusted values will be lost after loss of power.

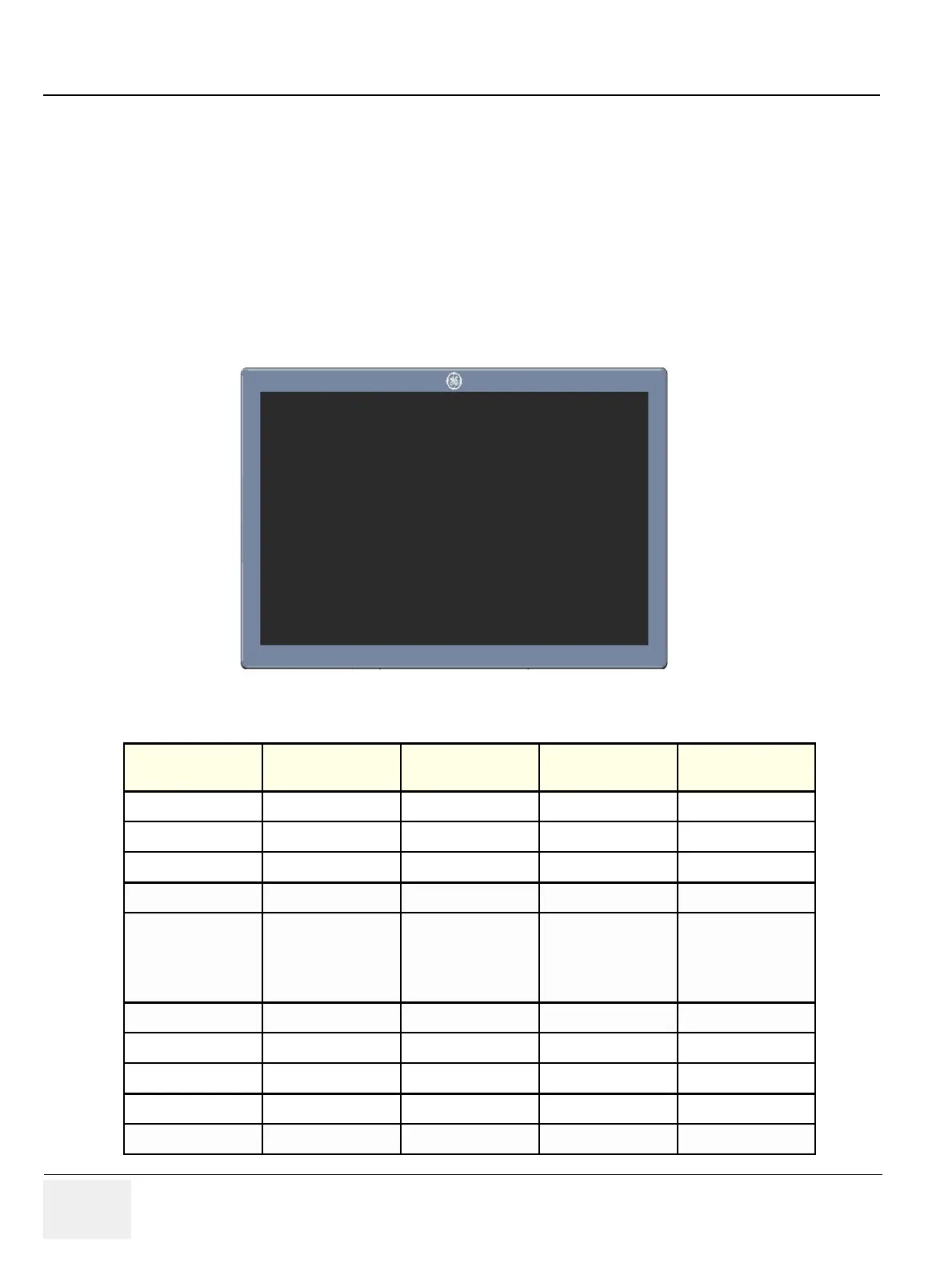

Figure 6-1 Monitor Adjustment buttons
Table 6-2
Main Menu Sub Menu Range
Setting for LOGIQ
P9/P7
1 Color Contrast 0~100% 100%
Dim Brightness 0~100% 100%
Brightness 0~100% 80%
Gamma 2.2 or 2.4 2.4
Color temperature
6500K/7500K/
9000K/9500K/
11000K/13000K/
USER
13000K
Gain - R 0~100% 50%
Gain - G 0~100% 50%
Gain - B 0~100% 50%
Return
Exit

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
