GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-71
Section 8-10
Replacement of Side Tray & Foot Rest Cover
8-10-1 Manpower
1 person, 15 min.
8-10-2 Tools
Standard Phillips Screwdriver.
NOTE: “Short” type driver preferable for Foot Rest Cover removal/installation.
8-10-3 Removal Procedure
8-10-3-1 Removal Procedure - Side Tray.
Procedures are common for both the Left and Right Side Tray.
1) Remove 2 screws and carefully lift up the side tray.

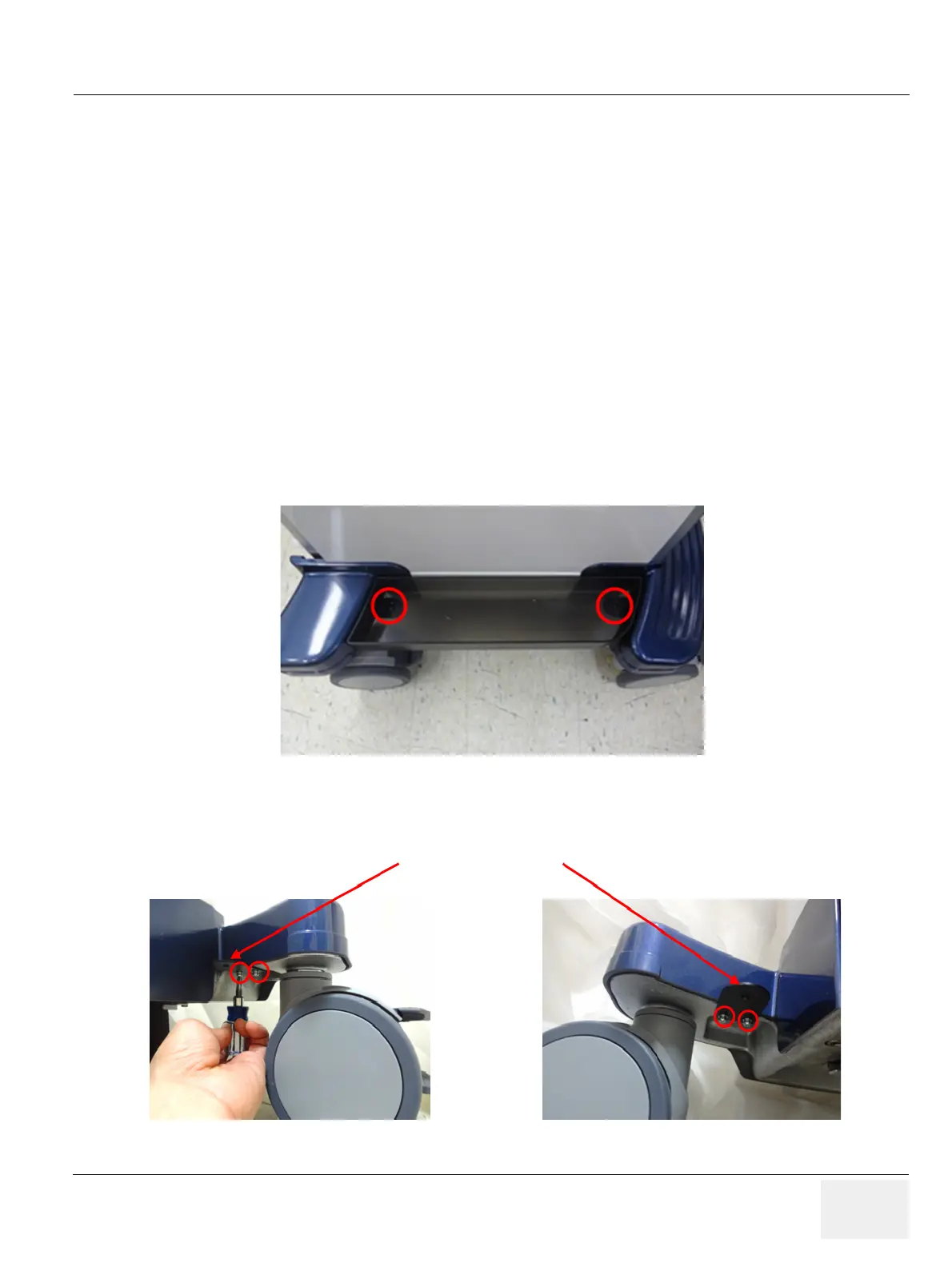

Figure 8-56 Side Tray screw points
2) Remove 2 screws and carefully lift up the side tray.
Figure 8-57 SIDE TRAY FIX BRKT screw points
SIDE TRAY FIX BRKT
