Chapter 3 - Setup Instructions 3-5
Section 3-3
Receiving and Unpacking the Equipment
The LOGIQ P9/P7 ultrasound system, together with peripherals, probes and accessories are shipped
from the factory in a single durable shipping crate which is mounted on a raised wooden platform base.
* Weight is approximate and will vary depending upon the supplied peripherals
Before unpacking the unit:
• Inspect the crate for visible damage.
• Inspect the Drop and Tilt Indicator for evidence of accidental shock or tilting during transit (damage
incident, see: Figure 3-3 below).
!! CAUTION:
Please read this section carefully before unpacking the LOGIQ P9/P7 ultrasound system and its
(optional) peripherals.
!! CAUTION:
Transport only with forklift or stacker truck.
During transport pay attention to the point of gravity (“tilt and drop” indicator)!
Have two people available to unpack the LOGIQ P9/P7.
Attempts to move the unit considerable distances (or on an incline) by one person alone, could
result in personal injury, and/or damage to the system.
Table 3-4 Shipping Carton - Dimensions and Weight
Description Height Width Depth
Weight*
LOGIQ P9/P7
incl. peripherals and accessories
1550 mm / 61 inch 706 mm / 27.7 inch 904 mm / 35.6 inch 120 kg / 267 lbs

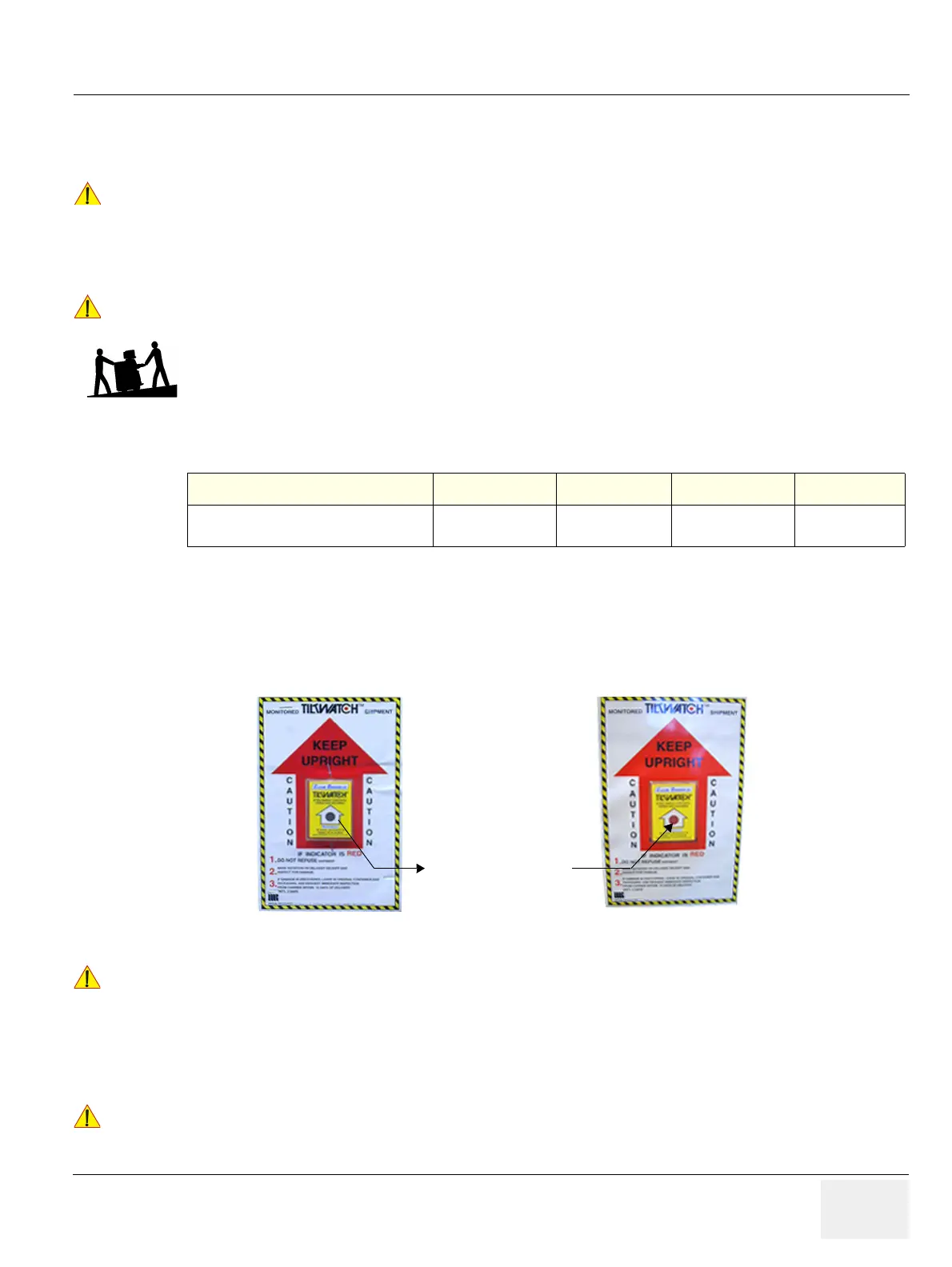

Figure 3-3 Drop and Tilt Indicator
!! NOTICE:
The device must only be transported in the original packaging!
Each shipping crate is composed of wooden base, cardboard box, re-usable plastic caps and cushions
inside. It is recommended to keep and store the shipping crate and all other packing materials (including
the support foams, anti-static plastic cover, etc.), in case the unit has to be moved to a different location.
Unpack the devices such a way that packaging can be reused.
For warranty purposes, storage of the above is required for one year from date of purchase.
!! NOTICE:
If the shipping crate is damaged, please inform the GE sales representative immediately.
