3-6 Section 3-3 - Receiving and Unpacking the Equipment
Section 3-3 Receiving and Unpacking the Equipment (cont?)

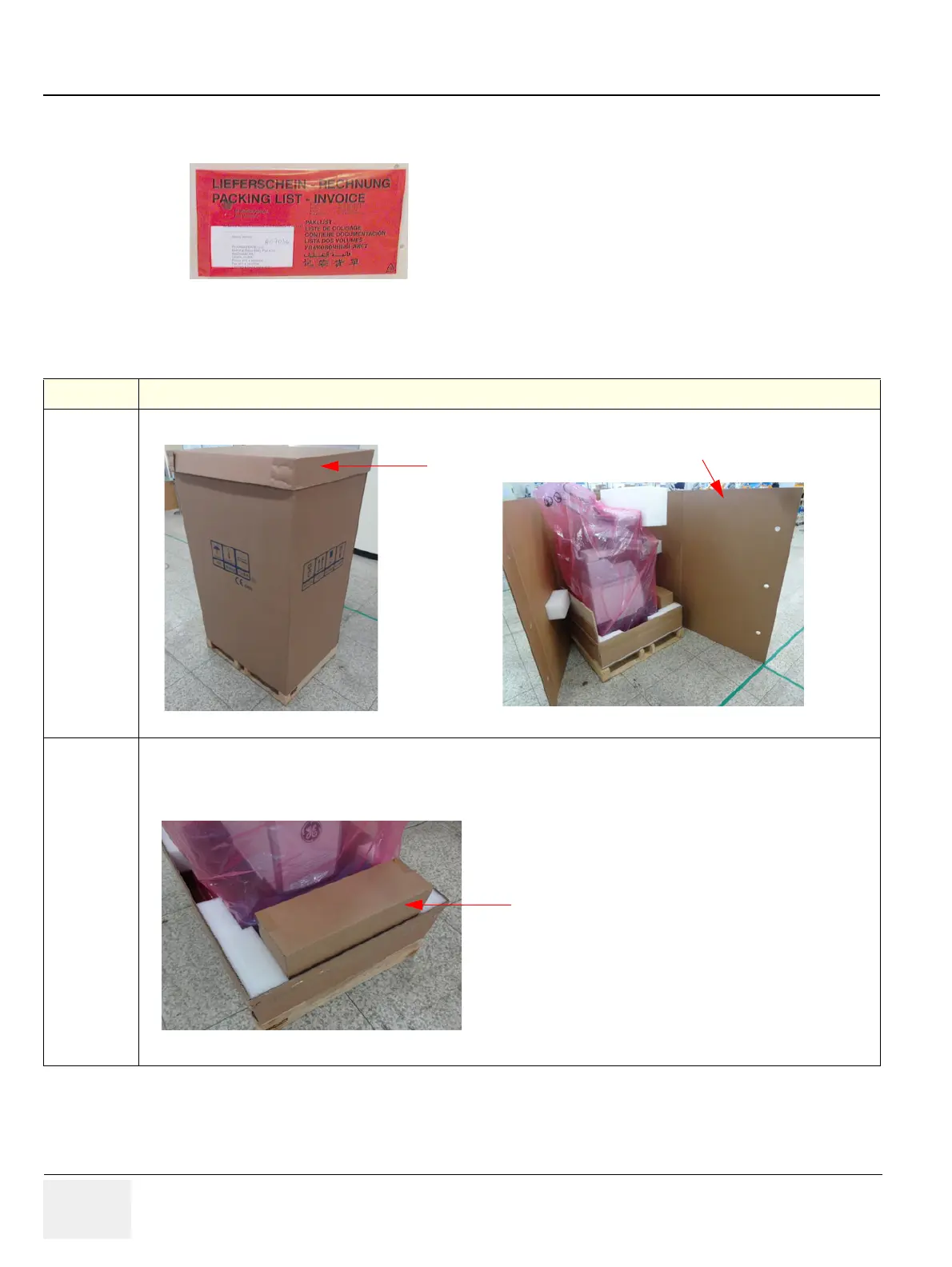

Figure 3-4 envelope at front panel of the crate
Table 3-5 Unpacking Procedure
Step Task
1.
Remove the top cover, then remove the out sleeve.
2.
Remove the option box on front of the system.
Check whether delivery is complete
(according to packing list) and check visual damage!
The envelope with delivery address, packing list and
invoice is located on the front panel of the crate.
top cover
out sleeve
Option box on front of the system

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
