GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-104 Section 8-17 - Replacement around Nest Box

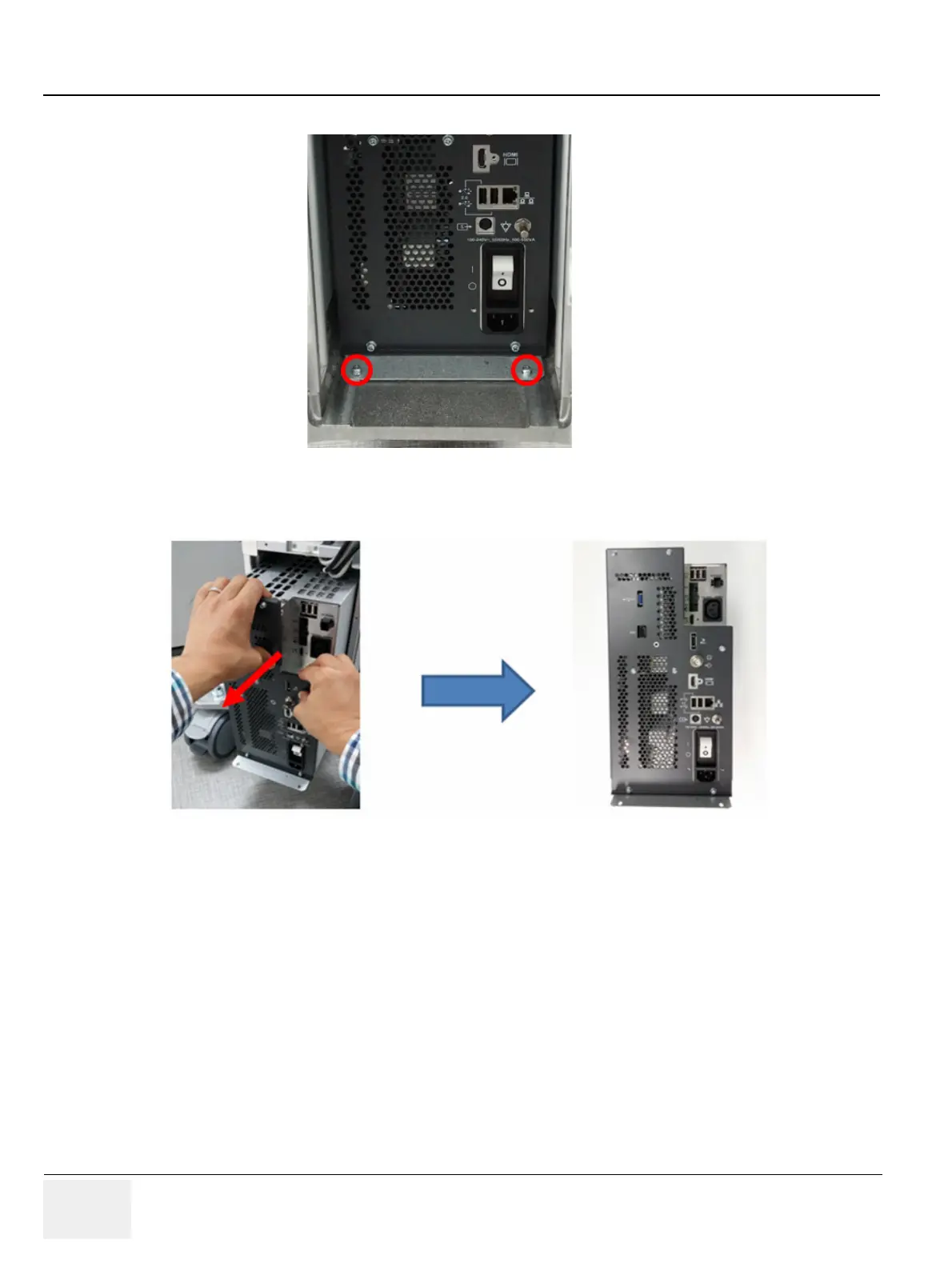

8) Remove 2 screws on rear side.

Figure 8-111 Rear side screw points

9) Pull out Nest Box.

Figure 8-112 Nest Box

8-17-6 Installation Procedure - Nest Box.

Parts to be installed in reverse order of removal.
