8-46 Section 8-3 - System Software - Installation/Upgrade Procedure

8-3-7-6 Software DVD / USB Storage

Remove the rear cover and store the software DVD / USB in the system.

1) Remove the rear cover.

2) Store the Software DVD in the pocket. (R1, R2, R2.5 only)

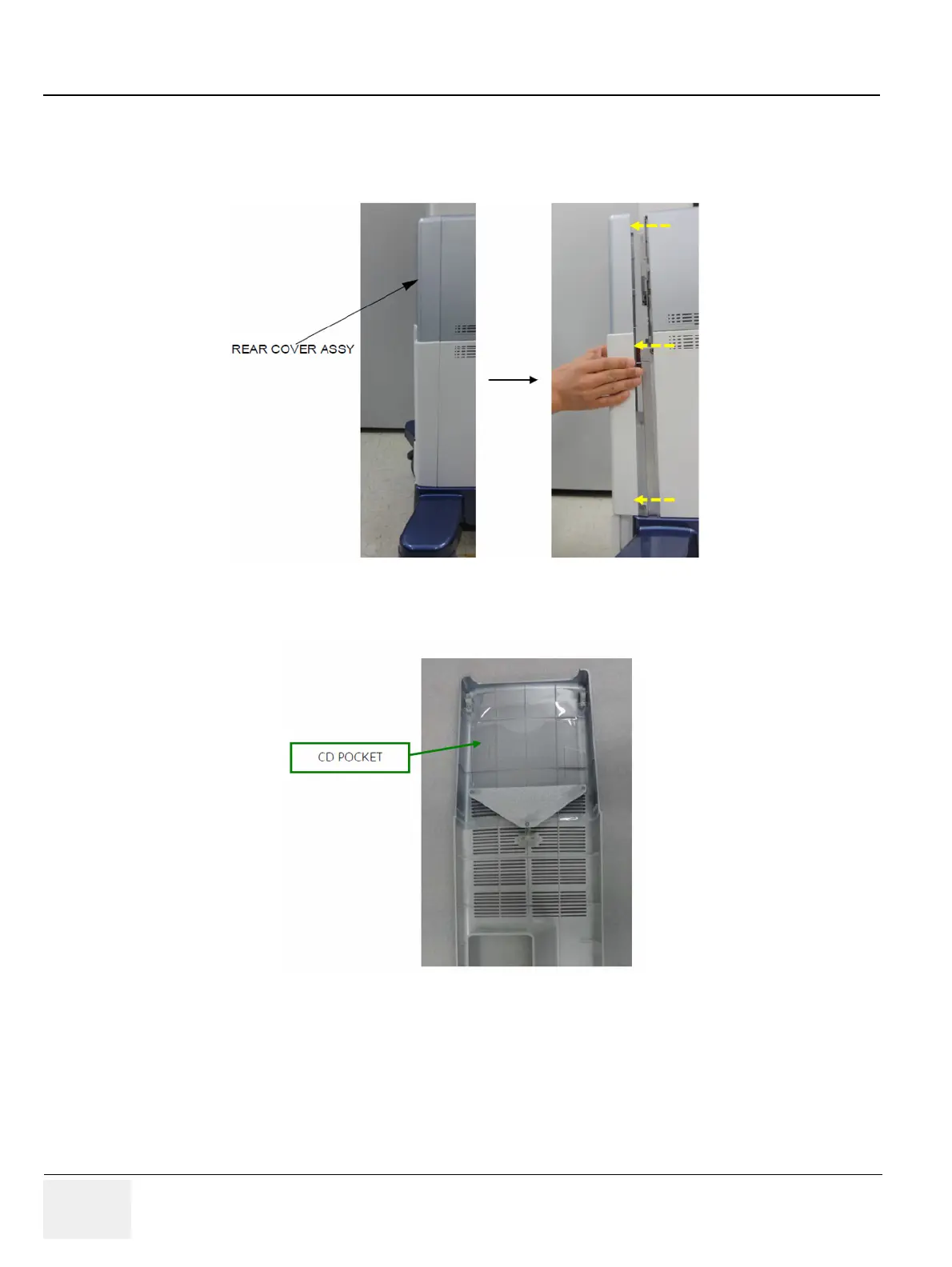

Figure 8-29 Removing the rear cover

Figure 8-30 CD pocket
