GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-75

4) Unscrew 2 screws, then separate the Monitor from the Monitor Stand Arm. Refer to the figure

below.

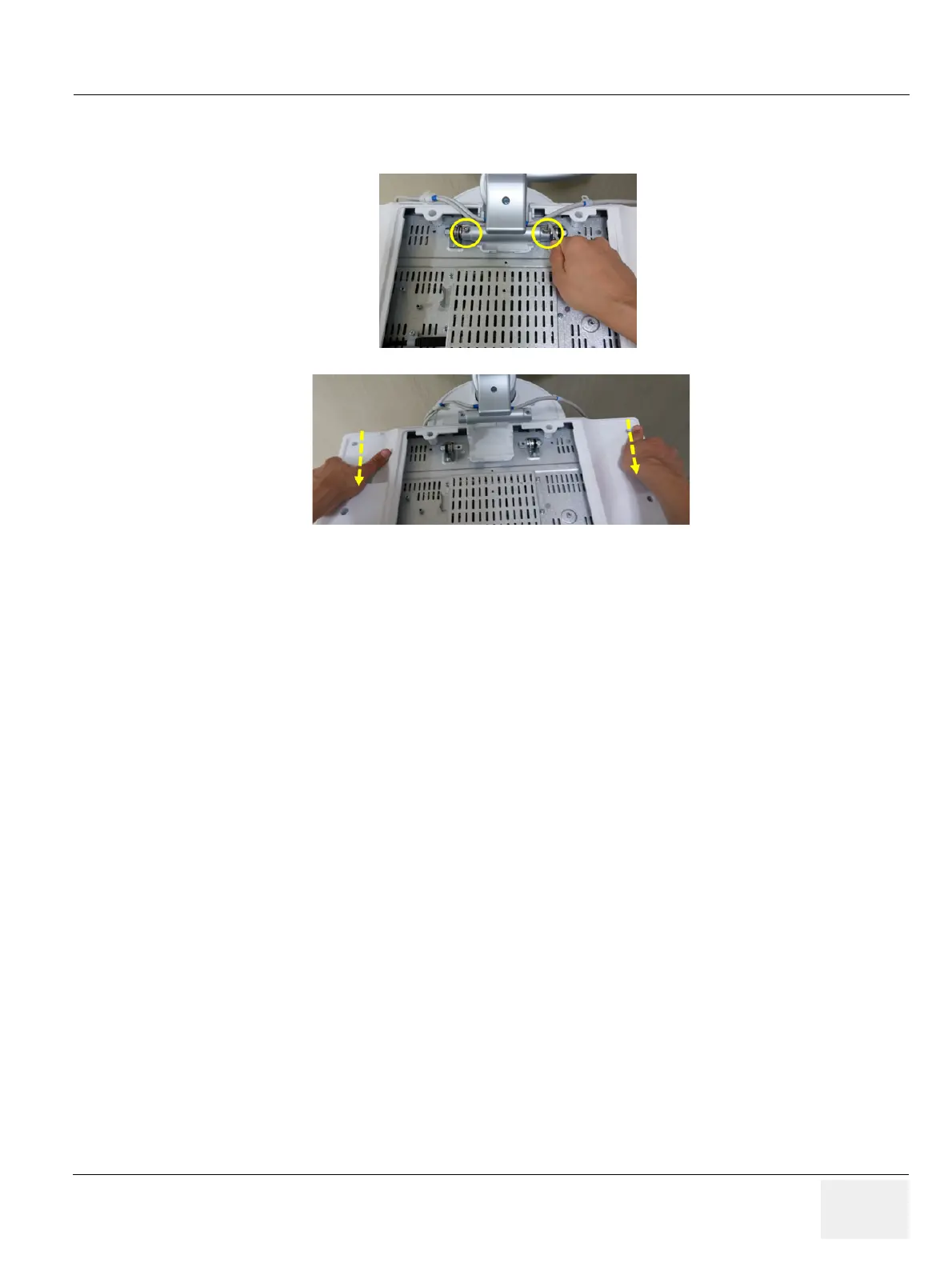

Figure 8-63 Unscrewing 2 screws & separating the Monitor

8-11-5 Monitor Installation Procedure

Parts to be installed in reverse order of removal.
