GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
6-6 Section 6-3 - LCD Monitor Adjustment
6-3-3 21.5 inch Wide Monitor Adjustment (R2.x.x and later)
All Monitor settings have been optimized at the factory, so normally, there should be no need for any
further adjustments.
1) Go to Utility second touch panel
2) Adjust Room profile, Color Profile, Gamma, Brightness/Contrast (Roomprofile-User defined) as
neccesary.

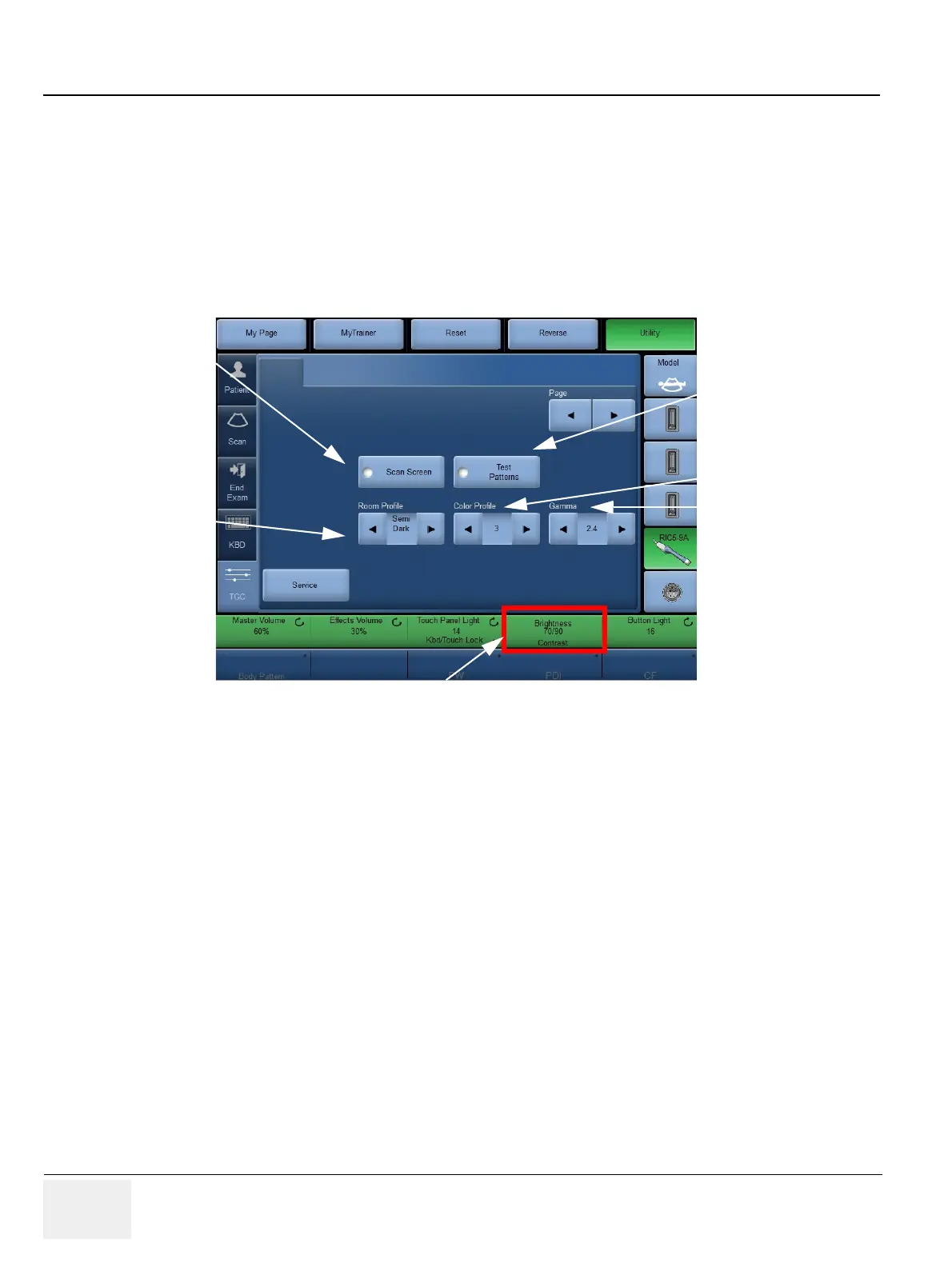

Figure 6-4 Monitor Adjustment
Display Test patterns
while the Utility is active
Select Color Profile
Select Gamma
Display scan screen
while the Utility is ac-
tive
Select Room Profile
Adjust Brightness and Constrast for Room profile
“User Defined”

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
