8-66 Section 8-8 - Replacement of Side Cover

Section 8-8

Replacement of Side Cover

8-8-1 Manpower

1 person, 15 min.

8-8-2 Tools

Standard Phillips Screwdriver.

8-8-3 Removal Procedure

8-8-3-1 Removal Procedure - Side Cover (L)

1) Remove Top Cover.

2) Remove 3 screws for Side Cover (L).

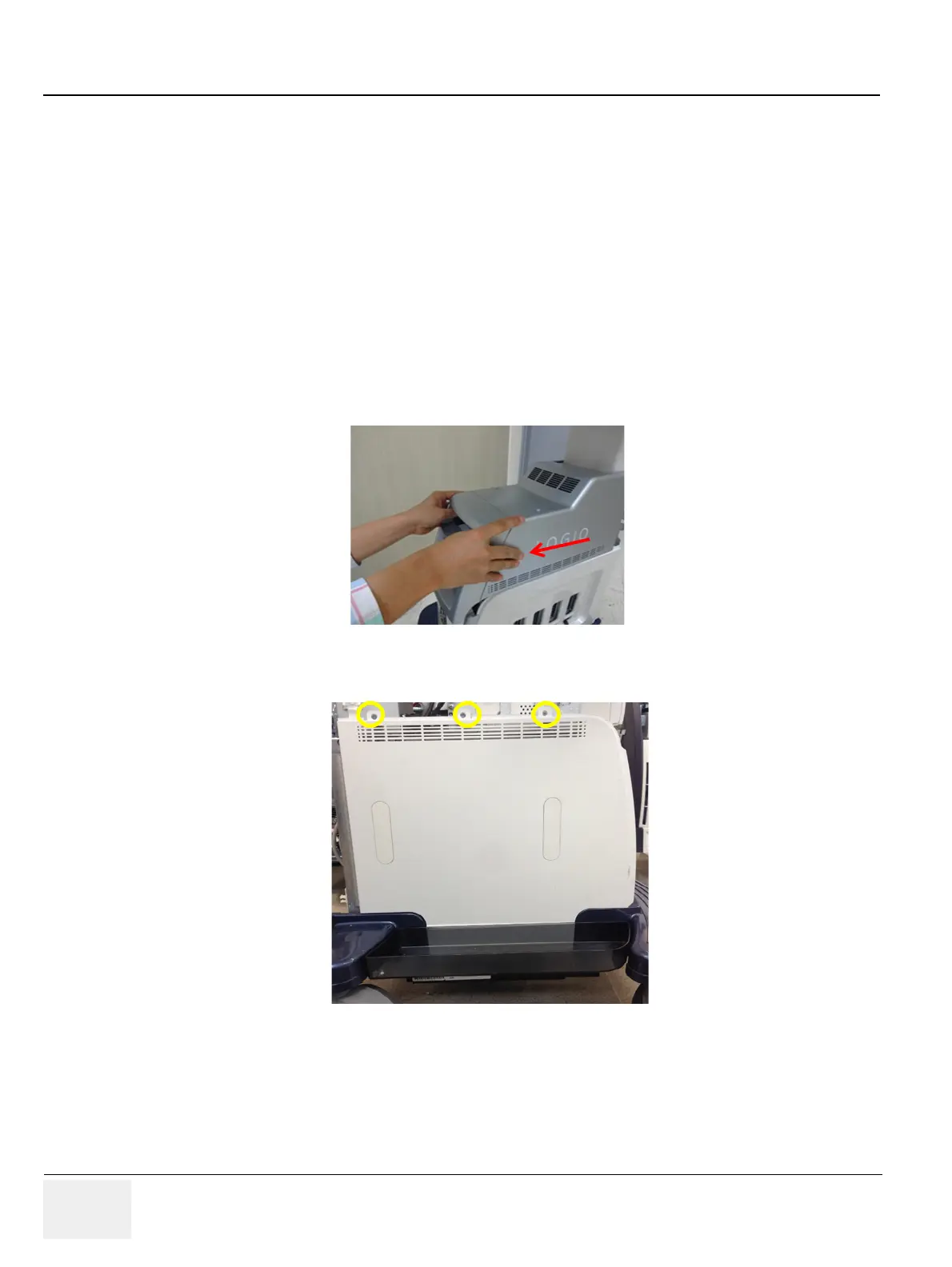

Figure 8-49 Side Cover screw

Figure 8-48 Removal of Top cover
