GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-175

Section 8-45

Replacement of battery pack for LP7-P9 R2 ext battery pack

8-45-1 Manpower

1 person, 30 minutes

8-45-2 Tools

Standard Phillips Screwdriver, Hex-Wrench

8-45-3 Removal Procedure

1) Unscrew 2 screws and then pull out the BATTERY PACK COVER BRKT LP7_P9 from 6 points of

LATCH.

2) Unscrew 2 screws to remove CONNECTOR BRKT.

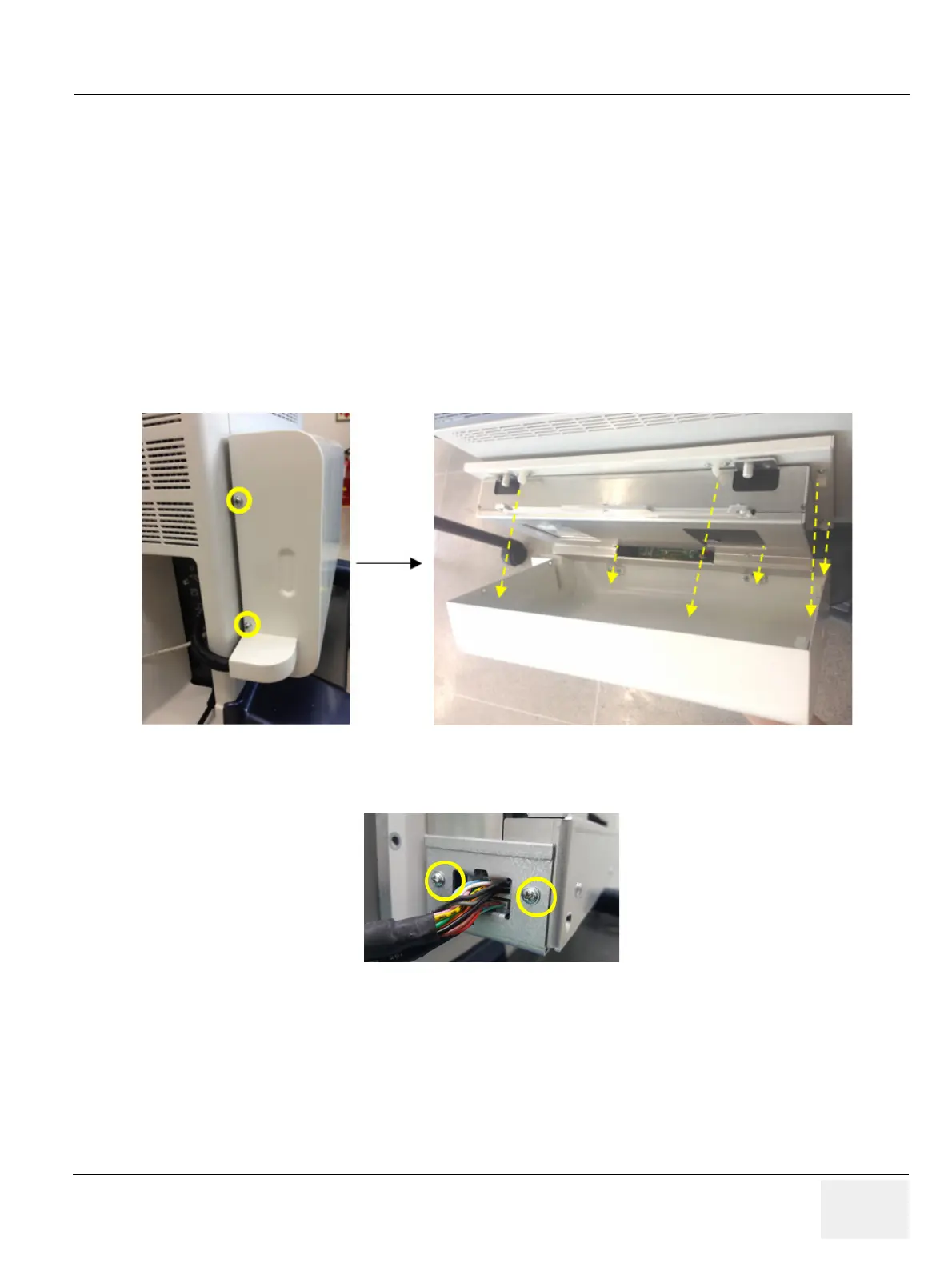

Figure 8-206 Removing the BATTERY PACK COVER BRKT LP7_P9

Figure 8-207 Unscrewing 2 screws to remove CONNECTOR BRKT
