GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-176 Section 8-45 - Replacement of battery pack for LP7-P9 R2 ext battery pack

3) Disconnect BATTERY SIG Harness and PWR Harness.

4) Unscrew 4 screws.

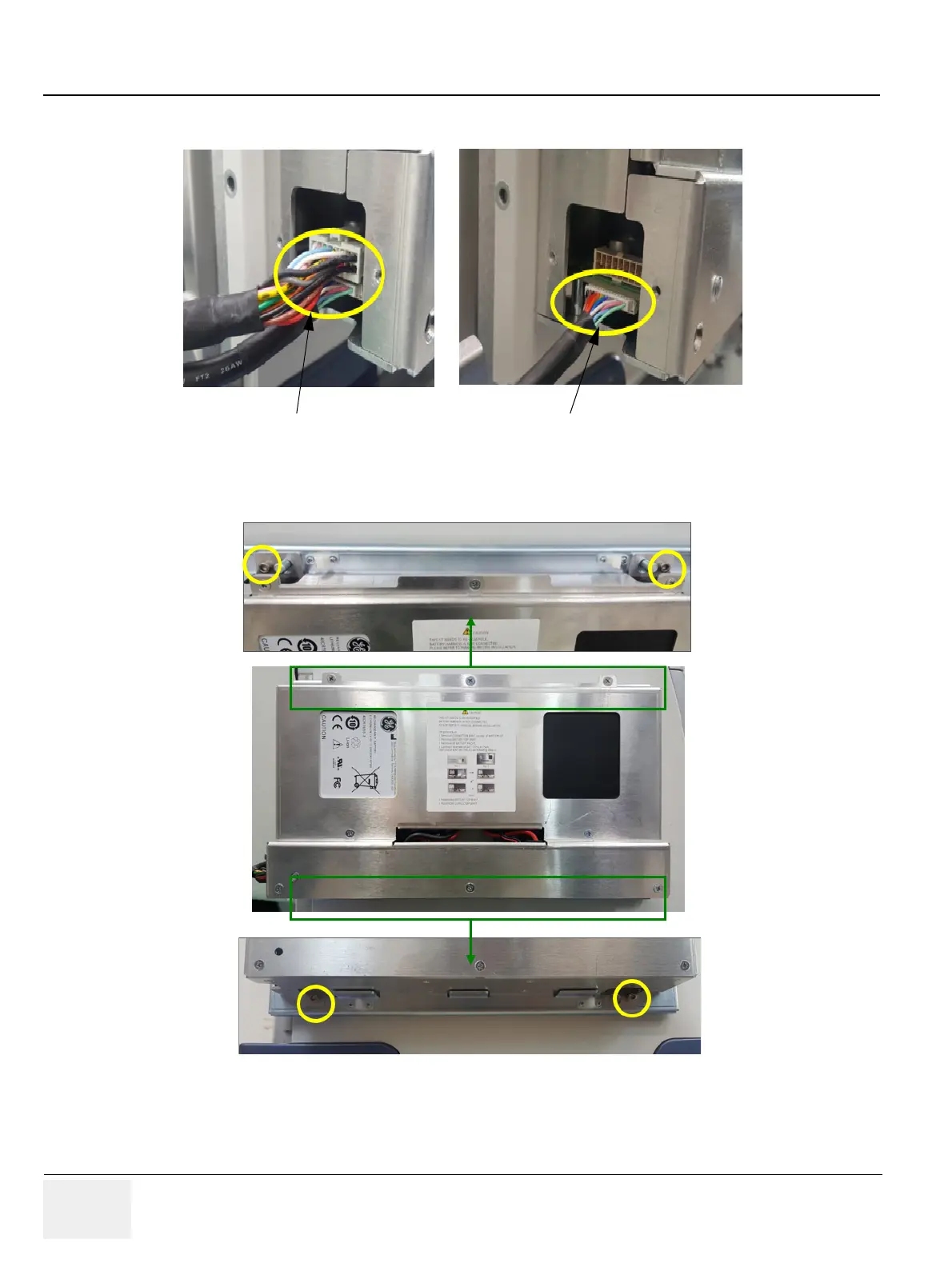

Figure 8-208 Disconnecting BATTERY Harnesses

Figure 8-209 Unscrewing 4 screws

PWR Harness SIG Harness
