GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-177

5) Disassemble LP7-P9 R2 EXT BATTERY PACK from extrude shape of BATTERY PACK FRAME

BRKT.

6) Unscrew 8 screws to remove BATTERY PACK TOP BRKT.

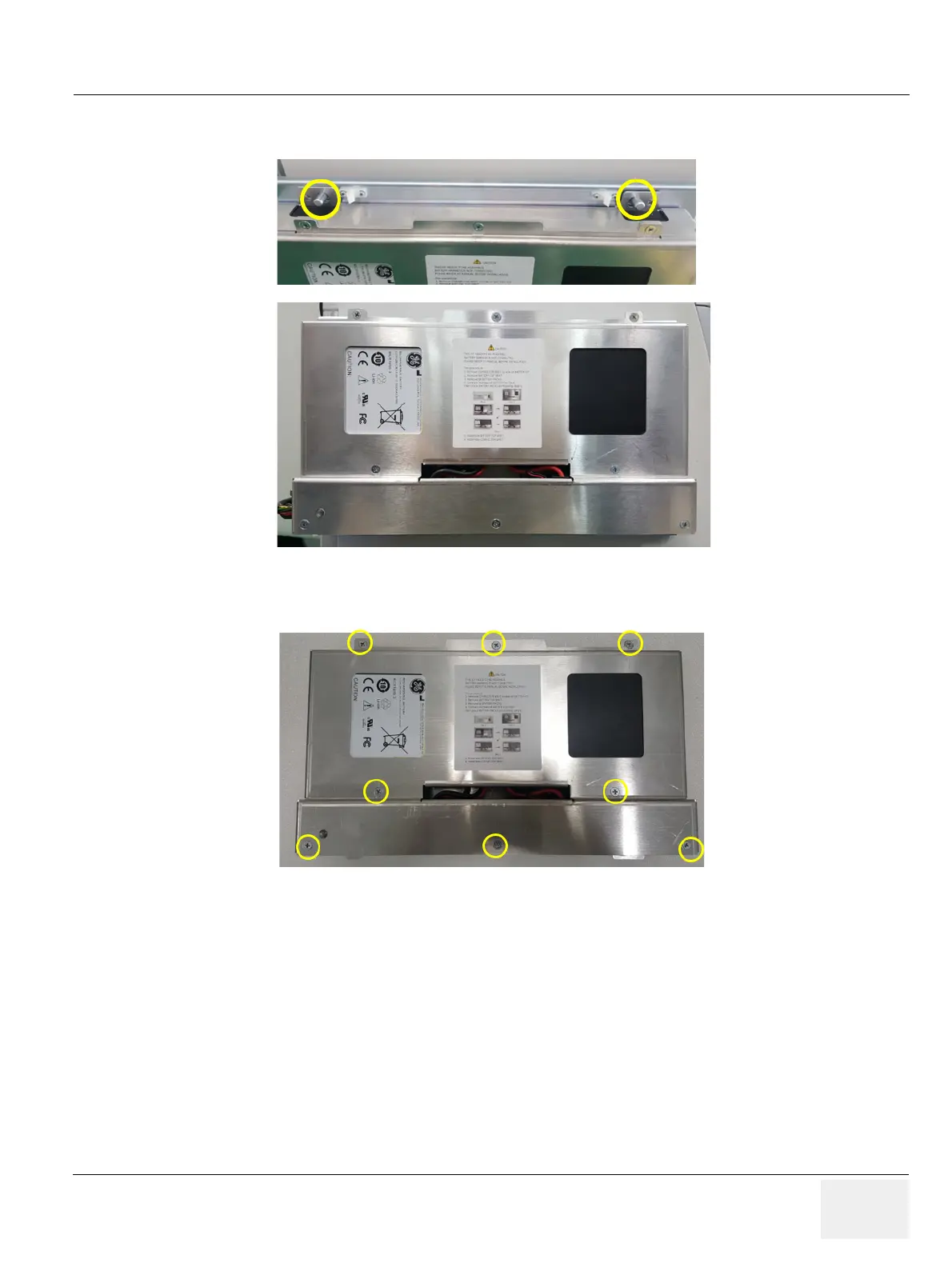

Figure 8-210 Removing LP7-P9 R2 EXT BATTERY PACK

Figure 8-211 Unscrewing 8 screws to remove BATTERY PACK TOP BRKT
