GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-98 Section 8-16 - Replacement of Key Caps (by special native language keys)
Section 8-16
Replacement of Key Caps (by special native language keys)
8-16-1 Manpower
1 person, 30 minutes.
8-16-2 Tools
• Regular Standard Phillips Screwdriver
• Screwdriver (Diameter : 3mm)
8-16-3 Preparations
1) Power Off/Shutdown the system.
8-16-4 Removal Procedure
1) Remove '1' Key, ‘Left Shift' Key, ‘F5’ Key, ‘6’ Key, ‘7’ Key, ‘H’ Key, ‘J’ Key, ‘N’ Key, ‘Back space’
Key, ‘Right Shift’ Key and ‘Pg Up’ Key by using fingertips. Refer to below Figure 8-75.

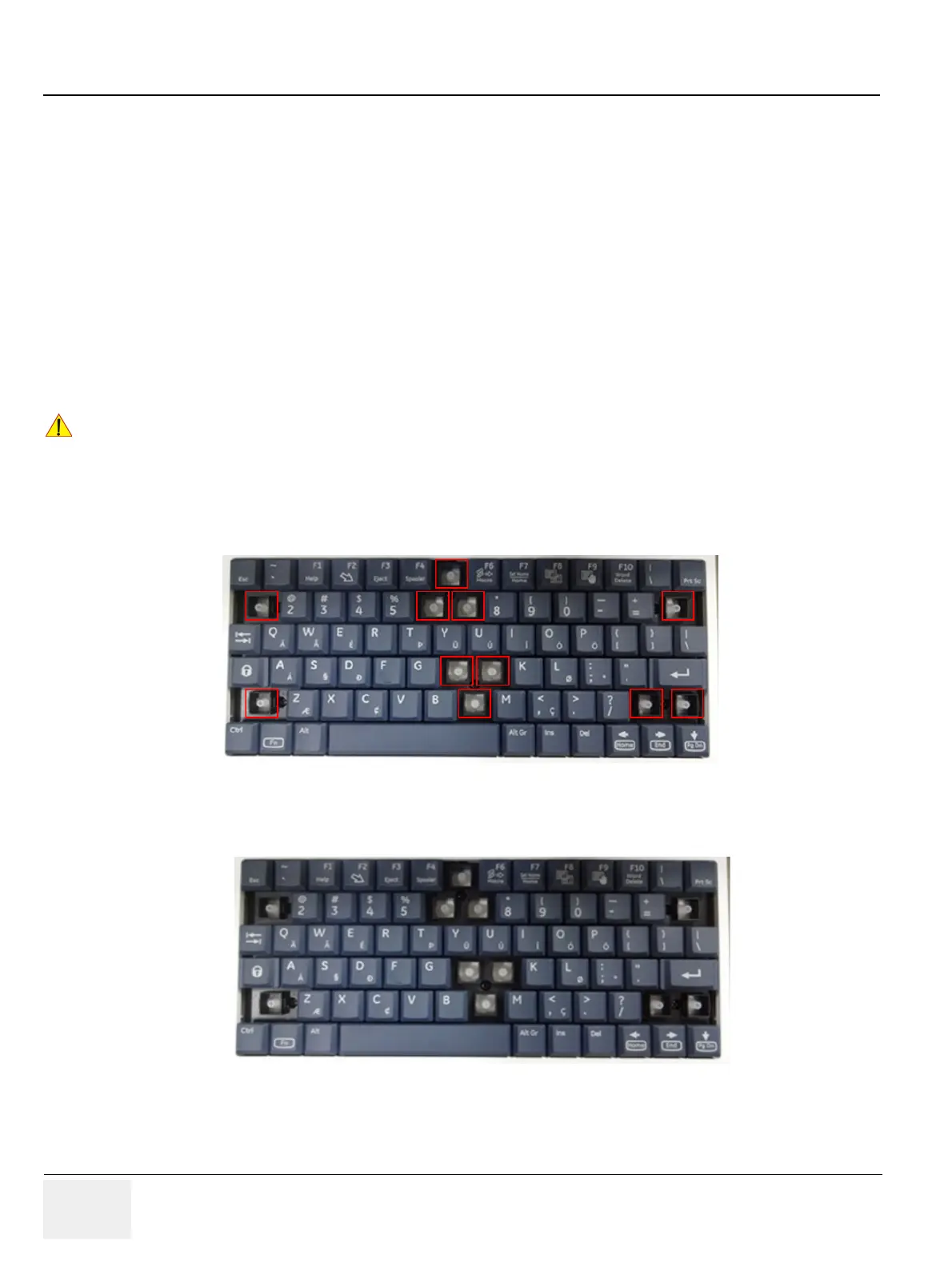

Figure 8-101 Remove key : ‘1’, ‘Left Shift’, ‘F5’, ‘6’, ‘7’, ‘H’, ‘J’, ‘N’, ‘Back space’, ‘Right Shift’, ‘Pg Up’
2) Remove the 6 screws using the plus(+) screwdriver. Refer to below Figure 8-76
Figure 8-102 Loosen the 6 screws
CAUTION
!! CAUTION:
Before you replace the boards, please make sure you wear the Ground strap, which prevents
ESD problems just in case.

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
