8-182 Section 8-46 - Replacement of battery pack for LP7-P9 R2 Battery option

5) Disconnect 2 connectors of BATTERY and unscrew 4 screws to remove BATTERY ASSY.

6) Unscrew 4 screws to remove BATTERY TOP BRKT. Then remove POLARIS BATTERY PACK.

8-46-4 Installation Procedure

All components to be installed in reverse order of removal.

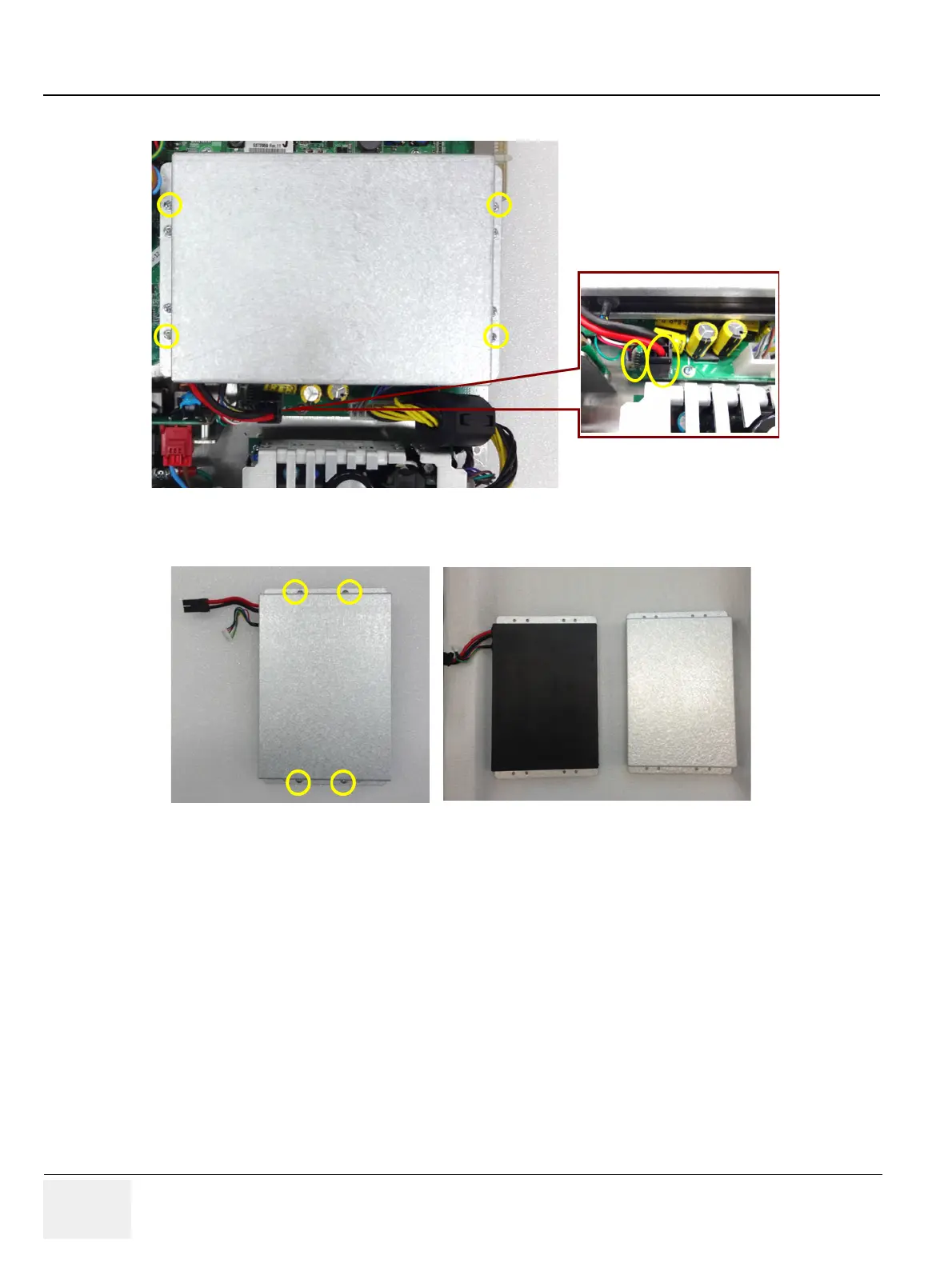

Figure 8-220 Removing BATTERY ASSY

Figure 8-221 Removing BATTERY TOP BRKT to remove POLARIS BATTERY PACK
