8-138 Section 8-25 - Replacement of Battery

2) Unscrew 4 screws and disconnect 2 connectors from Battery. Refer to following figure.

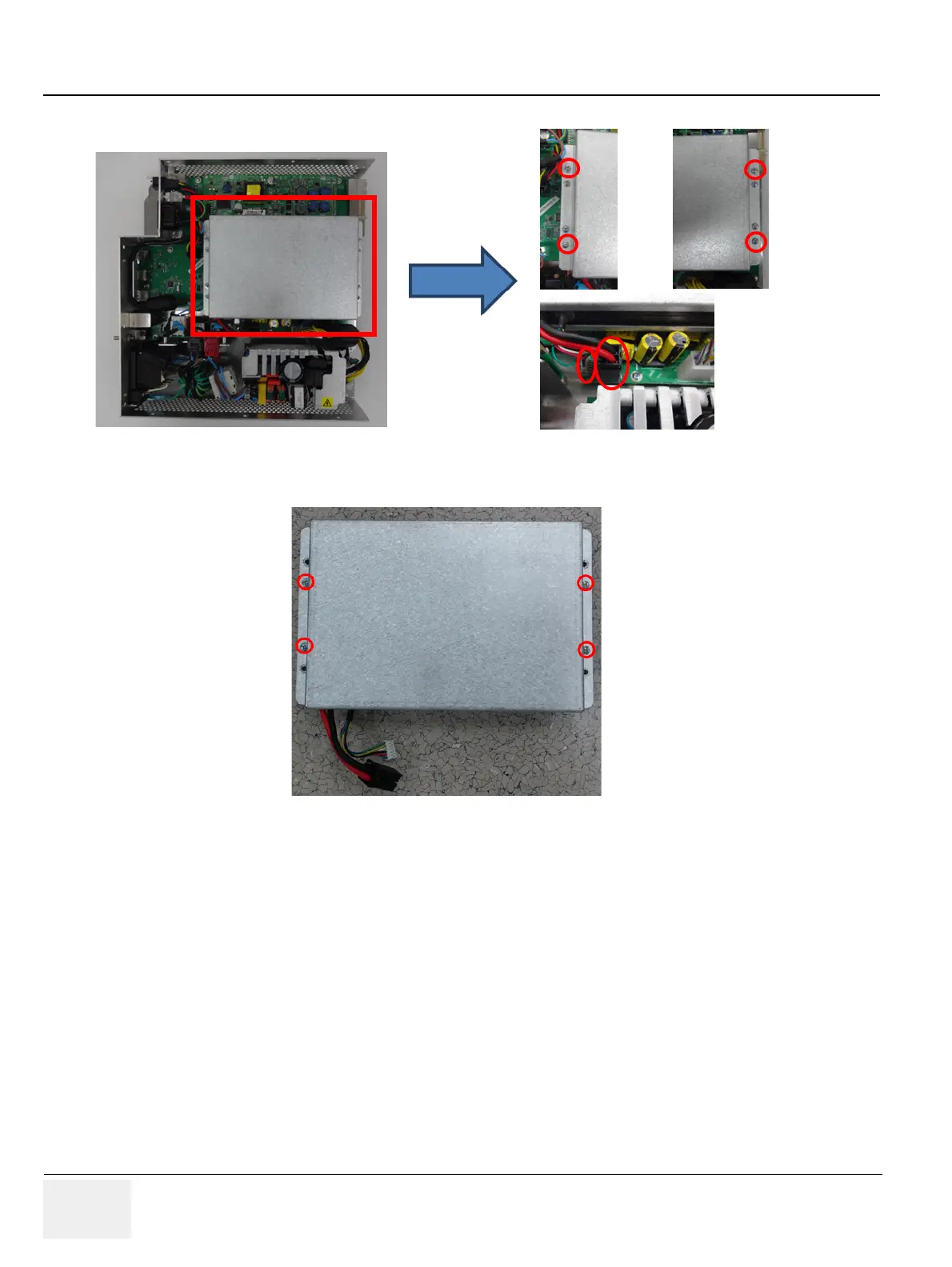

Figure 8-161 Screw points and Connectors on battery assy

3) Unscrew 4 screws to remove Battery bracket

Figure 8-162 Removal of Battery bracket

8-25-4 Installation Procedure

Install components in reverse order of removal.

8-25-5 Functional Check

Refer to section 4-4 for Functional Diag Test List.
