GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 1 - Introduction 1-5
1-2-3 Product Icons
The following table describes the purpose and location of safety labels and other important information
provided on the equipment.

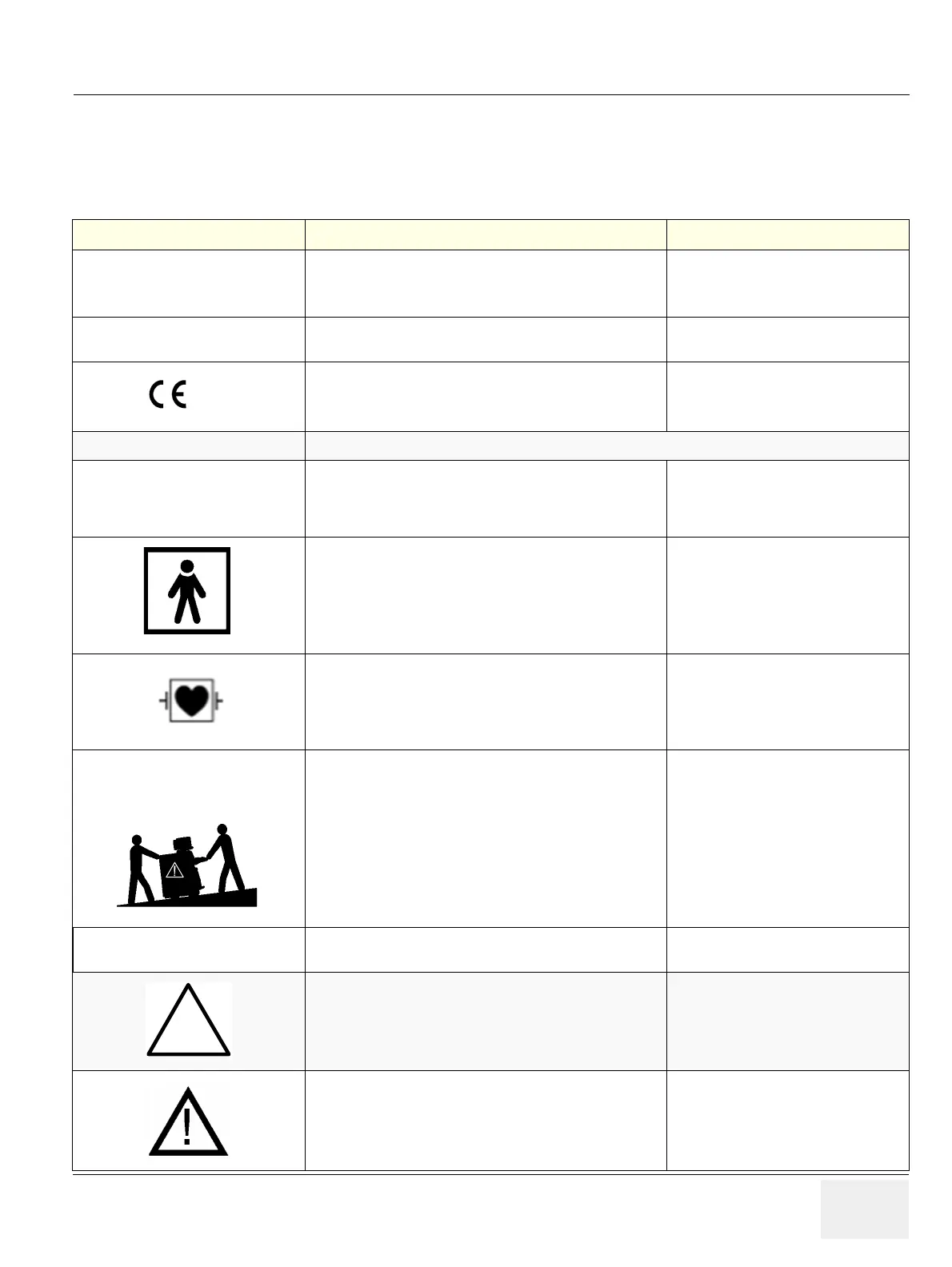

Table 1-5 Product Icons
LABEL/SYMBOL PURPOSE/MEANING LOCATION
Identification and Rating Plate
Manufacturer's name and address
Model and serial numbers
Electrical ratings
Rear side of the unit
on each probe
Device Listing/Certification Labels
Laboratory logo or labels denoting conformance with industry
safety standards such as UL or IEC.
Rear side of the unit
Council Directive 93/42/EEC concerning medical devices: The
CE mark affixed to the equipment testifies compliance to the
directive.
Rear side of the unit
on the plug of each probe
Type/Class Label
Used to indicate the degree of safety or protection.
IP Code (IPX 1)
IP Code (IPX 7)
Indicates the degree of protection provided by the enclosure
per IEC 60529.
IPX 1 - protected against dripping water
IPX 7 - protected against the effects of immersion
Footswitch
Probes
Equipment Type BF (man in the box, symbol IEC 60878-5333)
indicates B Type equipment having even more electrical
isolation than standard Type B equipment because it is
intended for intimate patient contact.
Probe connectors
Main label on rear of system
To identify a defibrillation-proof type CF (heart in box with
“electrodes”, symbol IEC 60878-5336) applied part complying
with IEC 60601-1.
Front side of the ECG-preamplifier
“CAUTION
This unit weighs...
Special care must be used to avoid..."
This precaution is intended to prevent injury that may result if
one person attempt to move the unit considerable distances or
on an incline due to the weight of the unit.
Used in the Service and User Manual
which should be adjacent to equipment
at all times for quick reference.
"DANGER -
Risk of explosion used in..."
The system is not designed for use with flammable anesthetic
gases.
Indicated in the Service Manual.
"CAUTION" The equilateral triangle is usually used in
combination with other symbols to advise or warn the user.
various
ATTENTION - Consult accompanying documents " is
intended to alert the user to refer to the operator manual or
other instructions when complete information cannot be
provided on the label.
Rear side of Power Supply
To Next Page
