GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
5-20 Section 5-7 - Mechanical Descriptions
Section 5-7
Mechanical Descriptions
5-7-1 Physical Dimensions
Dimentions and Weight
• Height: 1,375mm (Minimum), 1,570mm (Max.)
• Width: 530mm (Monitor), 430mm (Operator Panel)
•Depth:740mm
• Weight: 60kg (133 lbs)
5-7-2 LCD Monitor
The LOGIQ P9/P7 has a free adjustable LCD monitor in relation to the user interface.
• position up/down: +/- 7.5 cm
• position left/right: +/- 18cm
• rotation up/down: +90°/-15°
• rotation left/right: +/- 90°
5-7-3 OPIO Positioning
The control console can be rotated, translated and adjusted in height.

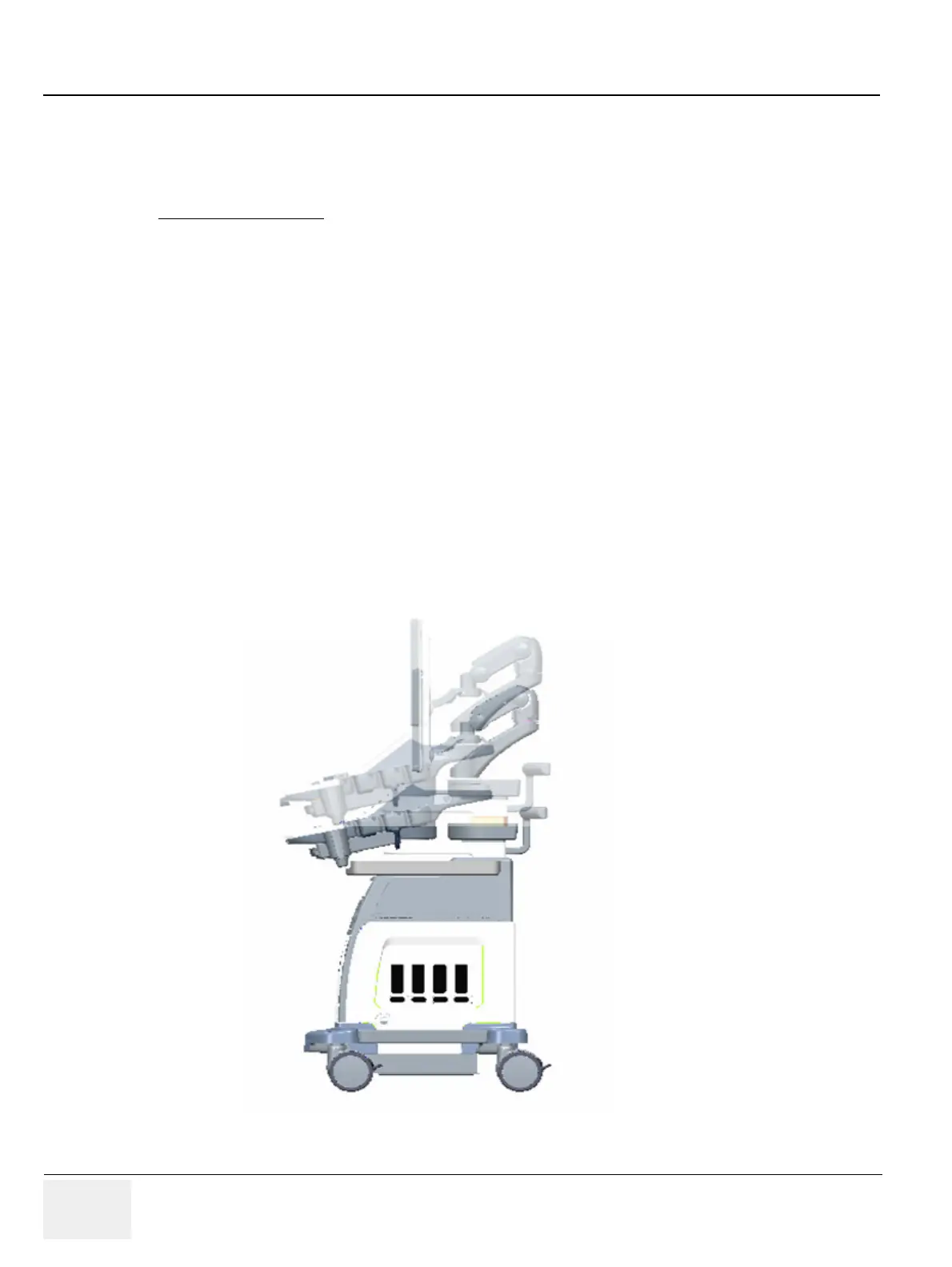

Figure 5-8 adjustable Control Console
Highest
810mm
Lowest
910mm

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
