The LOGIQ P9/P7 ultrasound system comes equipped with product labels and icons.
These labels and icons represent pertinent information regarding the operation of the unit.
* Required for Asia.
1) LCD Caution Label
2) Gender Caution Label (Only for India, China, Korea)
3) Multi Caution Label
4) LOGIQ P9/P7 Rating Label (For China, Korea, Japan)
5) LOGIQ P9/P7 Rating Label
6) UL Label

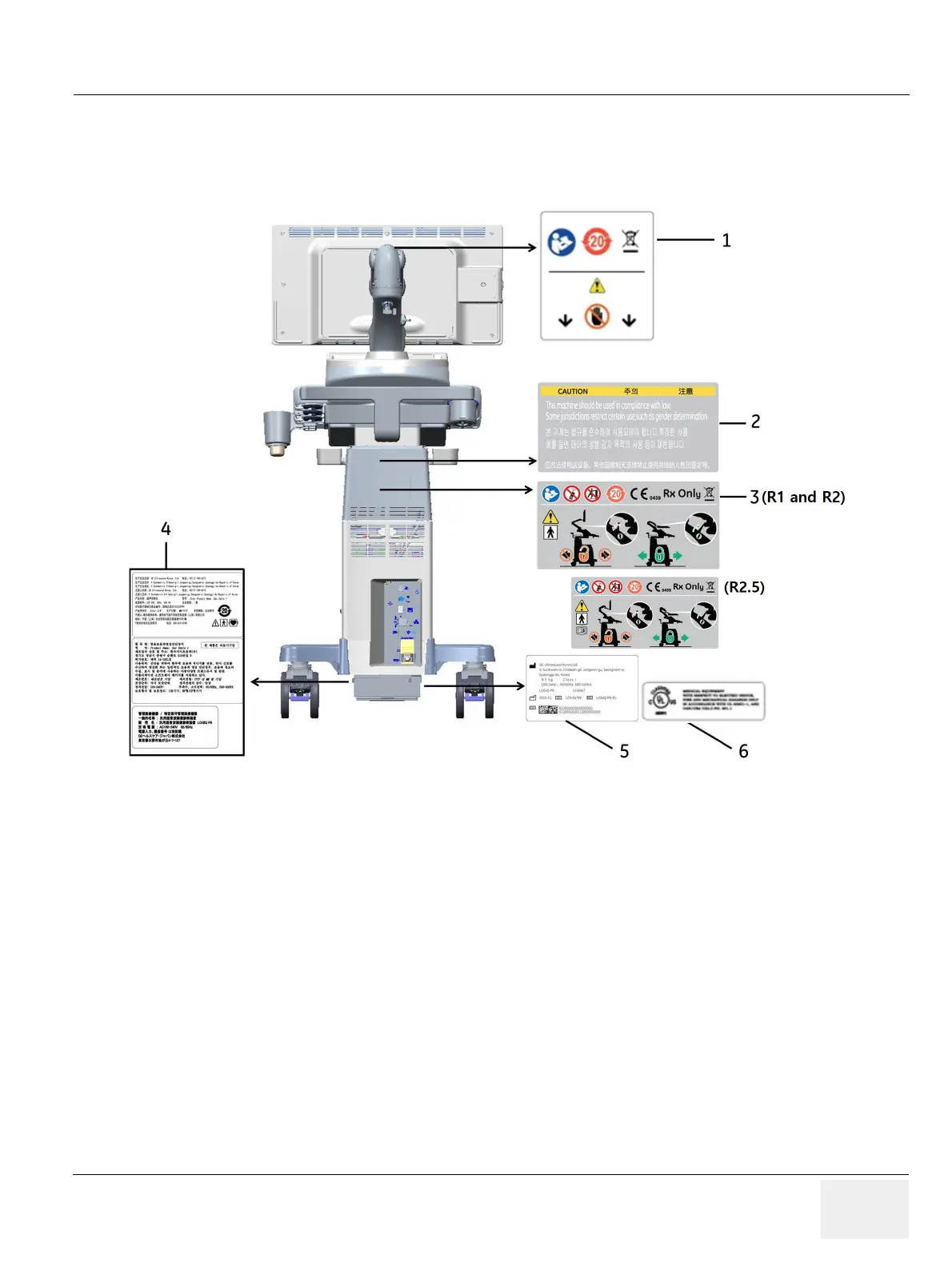

Figure 1-1 Label Location (R1, R2 and R2.5)

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
