GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-101
Section 8-17
Replacement around Nest Box
NOTE: This section covers replacement of components related to Nest Box.
: MPI,MCB,MDC,MIO,CWD,DCWD,EEPROM,DC4D,Battery,HDD and SOM
8-17-1 Manpower
1 person, 15 minutes for each part.
8-17-2 Tools
Standard Phillips Screwdriver.
8-17-3 Pre-Work
1) Front cover removed. (refer to section 8-6-3)
2) Rear cover removed. (refer to section 8-9-3)
8-17-4 Nest Box Access
1) Remove Rear Cover. (refer to section 8-9)
2) Remove 2 screws and Power Cord Fix Bracket.

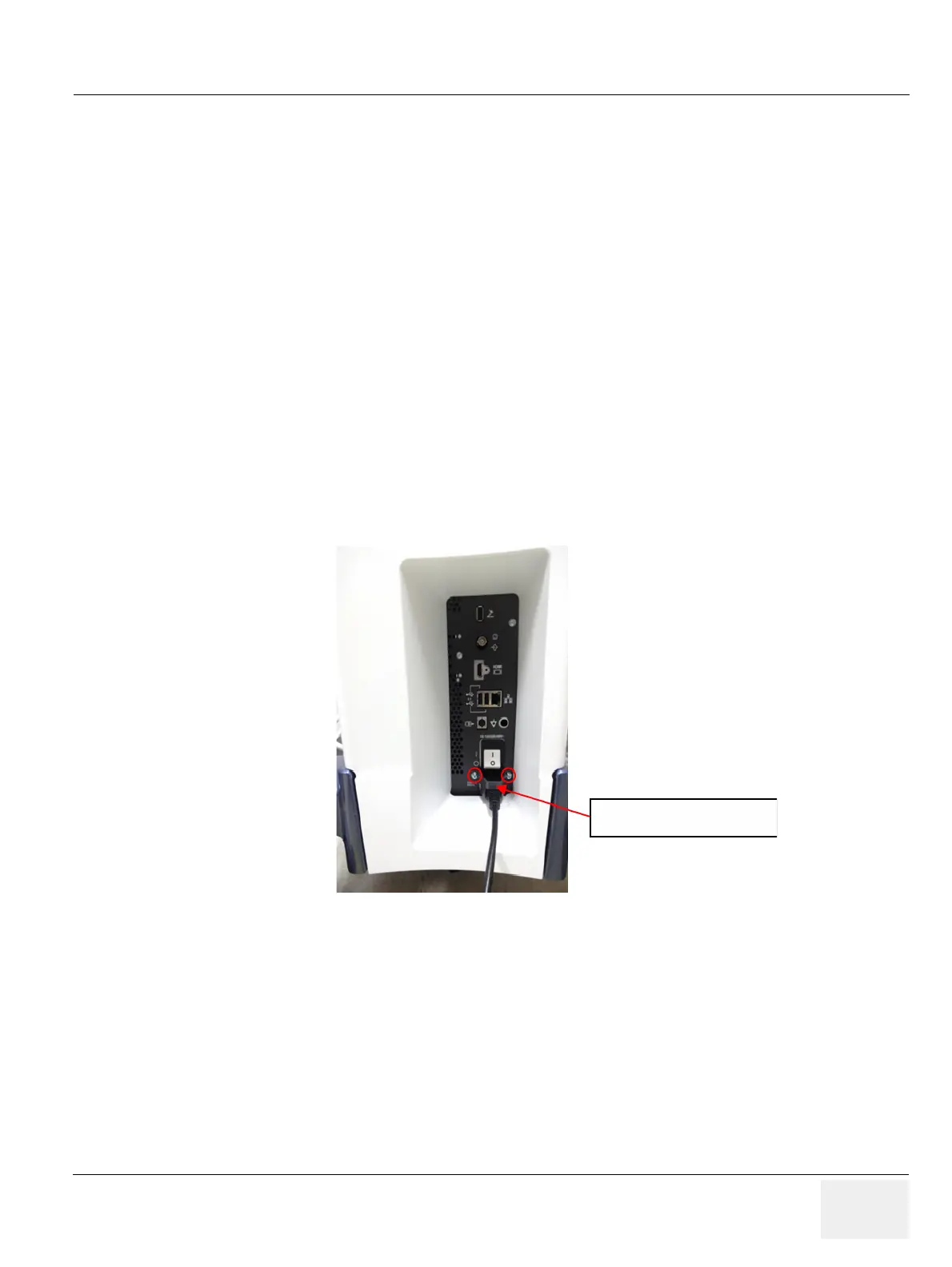

Figure 8-106 Power Cord Fix Bracket.
Power cord Fix Bracket

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
