GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 3 - Setup Instructions 3-69

4) At CONNECT mode, Select [Connect] of the “Virtual Console” on Remote Console

5) After selecting [Connect] button, operator may need to wait long time to launch the remote service

desktop

6) Verify console desktop can be viewed from Remote PC

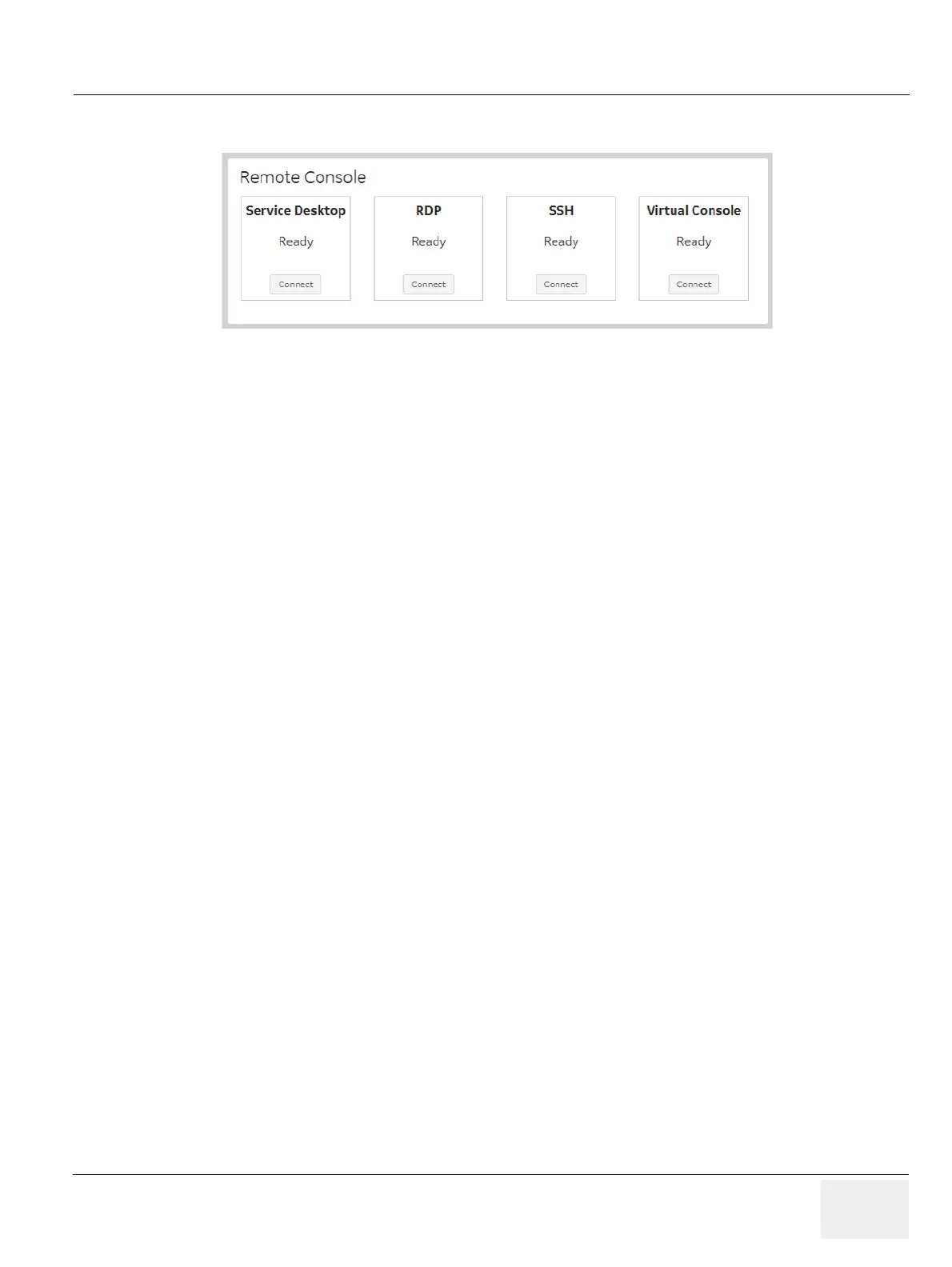

Figure 3-45 Remote Console
