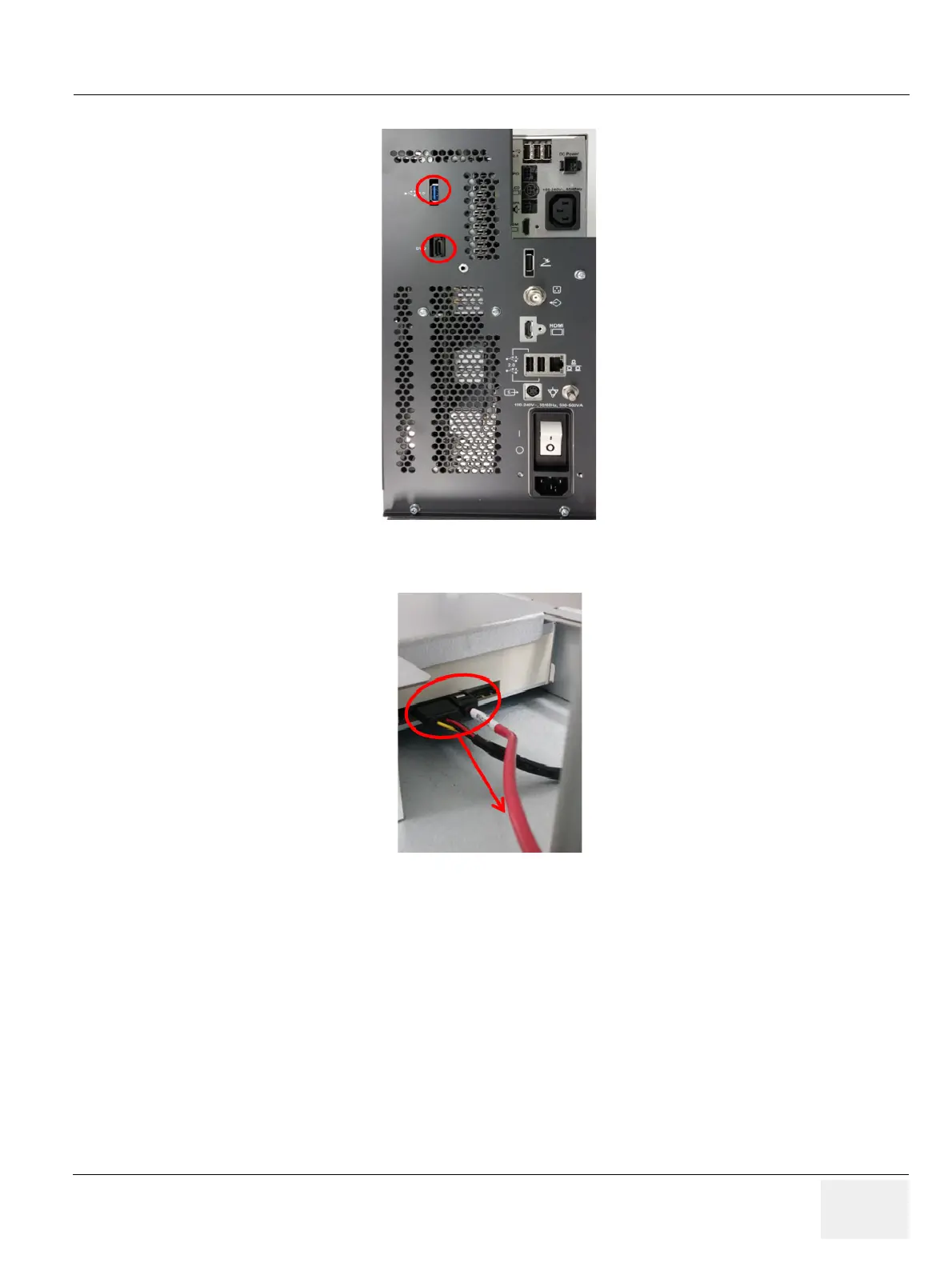

3) Disconnect 2 DVD cables from the rear panel. Refer to following figure.

Figure 8-171 DVD cable connectors

4) Disconnect 2 DVD cables from the DVD.

Figure 8-172 Removal of DVD cables from the DVD

5) Carefully pull out the cables.
