Chapter 4 - Functional Checks 4-41
12) Calibrated carefully 16 calibration points in touch panel.
NOTE: Figure 4-35 is intended to be shown upside-down.
13) Press the Yes when pop-up the window like section 4-44
14) Functional Check in section 4-3-8

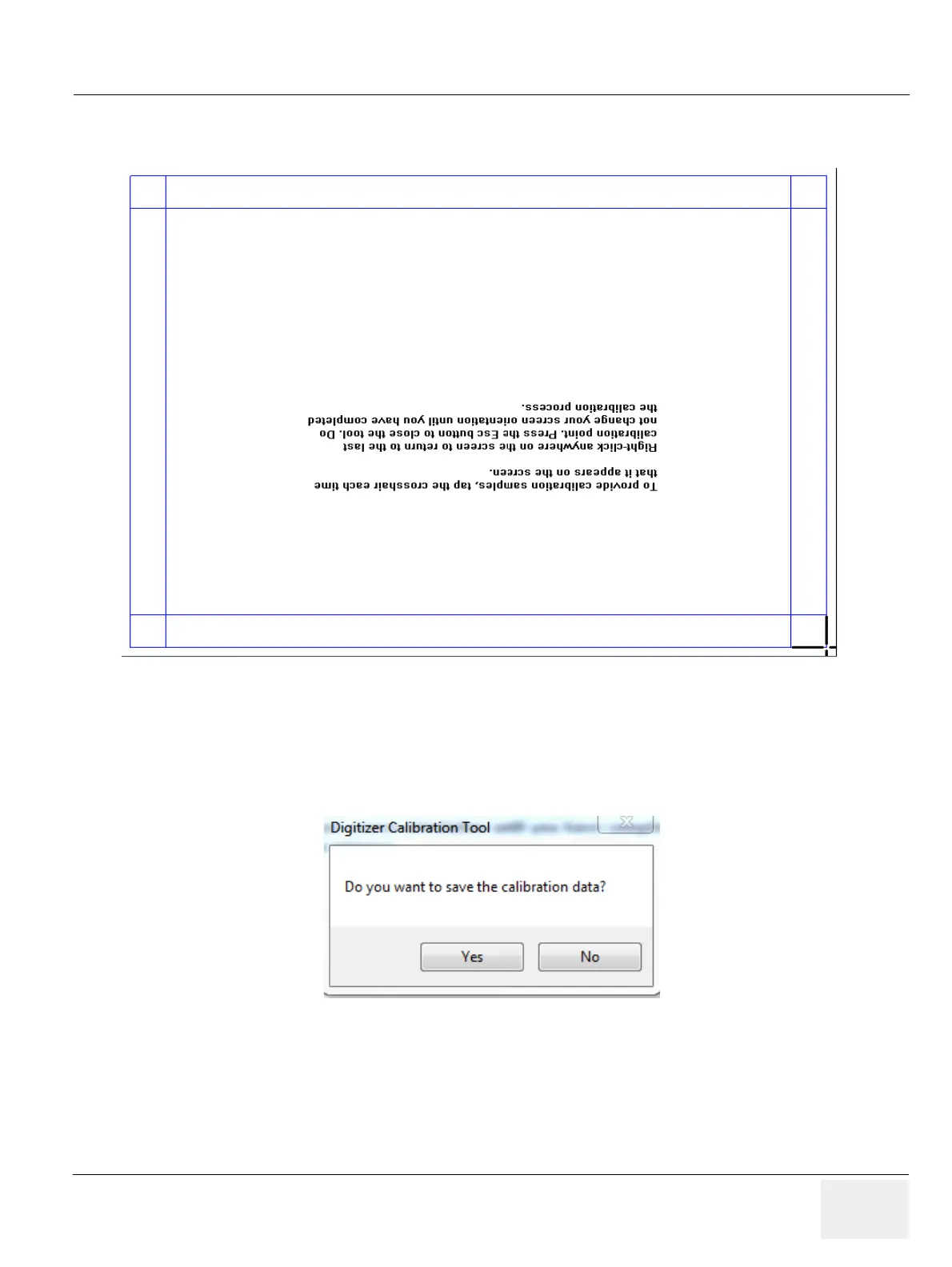

Figure 4-43 Calibration Layout
Figure 4-44 Digitizer Calibration Tool
