GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
7-4 Section 7-2 - Collect Vital System Information
A request confirmation screen is displayed:
4) Write down and keep the Reference Number for follow up procedures, then click OK
.
NOTE: If the service platform is not configured an Error message is displayed. The request is NOT sent!
The request is saved in QUEUE for reviewing and/or resending.

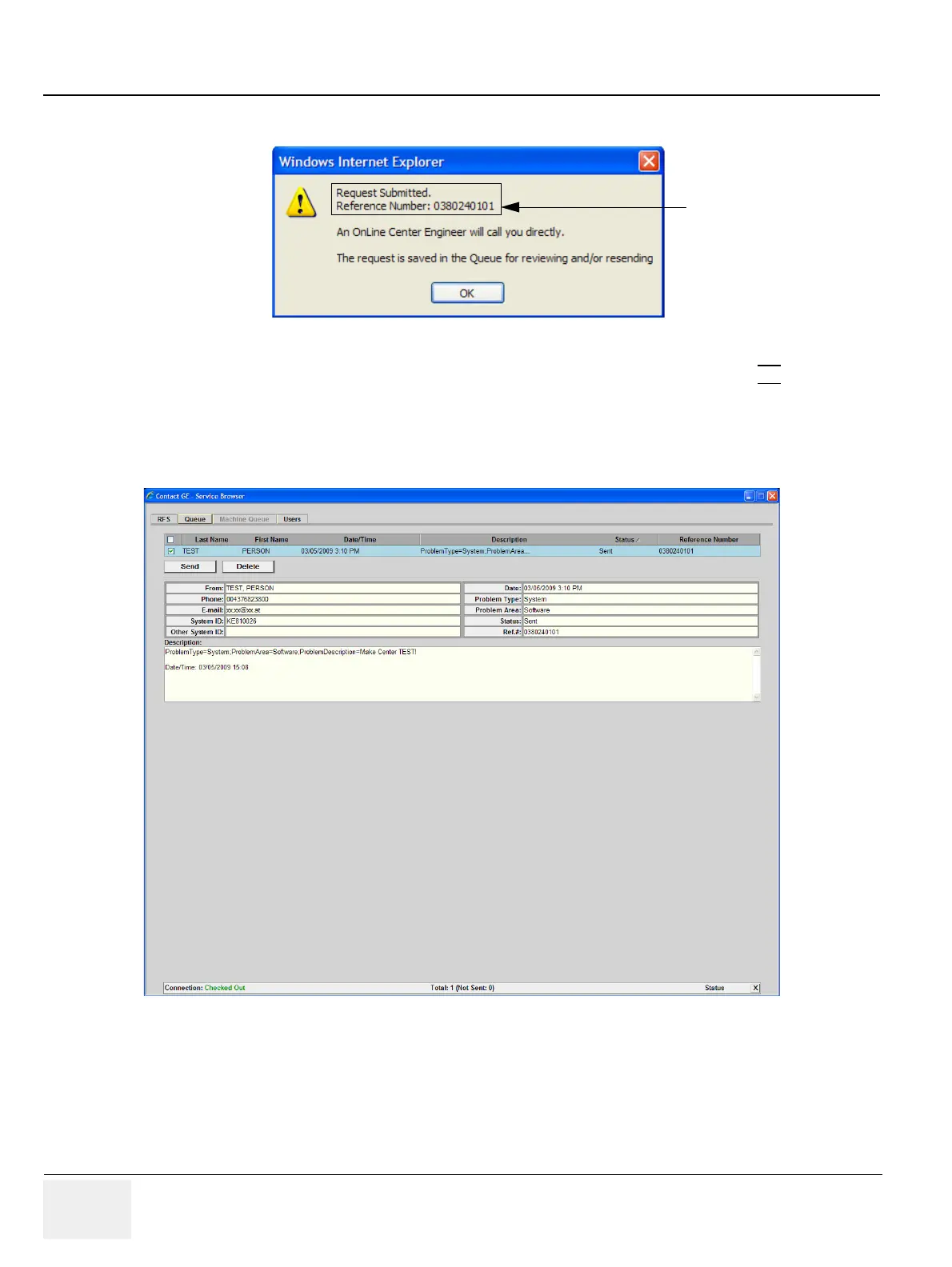

Figure 7-4 Request submitted
Figure 7-5 Contact GE - Queue
write down and keep
the Reference Number

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
