GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-27

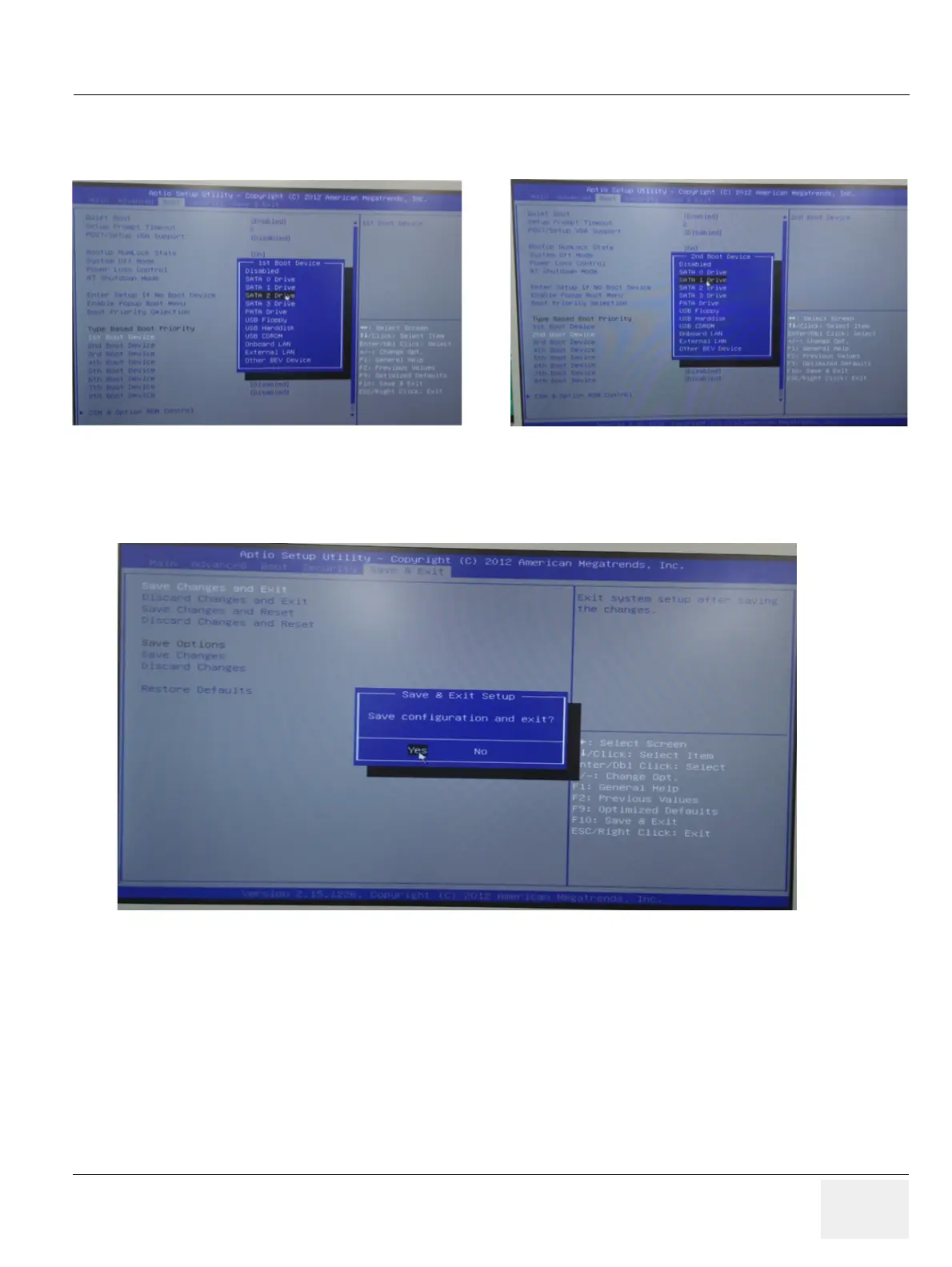

4) Go to “Boot” in BIOS menu and change the setting value from “SATA 1 Drive” to “SATA 2 Drive” in

‘1st Boot Device’, change the setting value from “SATA 2 Drive” to “SATA 1 Drive” in ‘2nd Boot

Device’

5) Go to “Save & Exit” in BIOS menu and select “Save Changes and Exit”. Then, the system will re-

boot.

6) Press DVD-Drive eject button.

7) Place the Base System Software DVD on the tray.

8) Wait few moments for DVD drive to read DVD contents.
