GE LOGIQ P9 Service Manual

GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 1 - Introduction 1-11
For hardware installation procedures see: Chapter 3 - Connection of Auxiliary Devices, on page 3-11.
CAUTION
!! CAUTION:
Please observe that some printers may not be medical devices! If the Bluetooth Printer and/or
Line Printers are no medical devices, they have to be located outside of the patient environment
(according to IEC 60601-1 / ANSI/AAMI ES60601-1).
CAUTION
!! CAUTION:
Auxiliary equipment must only be connected to the main console with the special main outlet
provided for the electrical safety of the system.
CAUTION
!! CAUTION:
Auxiliary equipment with direct main connection requires galvanic separation of the signal and/
or control leads.
WARNINGWARNING
!! WARNING:
After each installation, the leakage currents have to be measured according to
IEC 60601-1 respectively ANSI/AAMI ES60601-1.
NOTICE
!! NOTICE:
All peripherals mounted on the LOGIQ P9/P7 system chassis must be firmly secured in position.

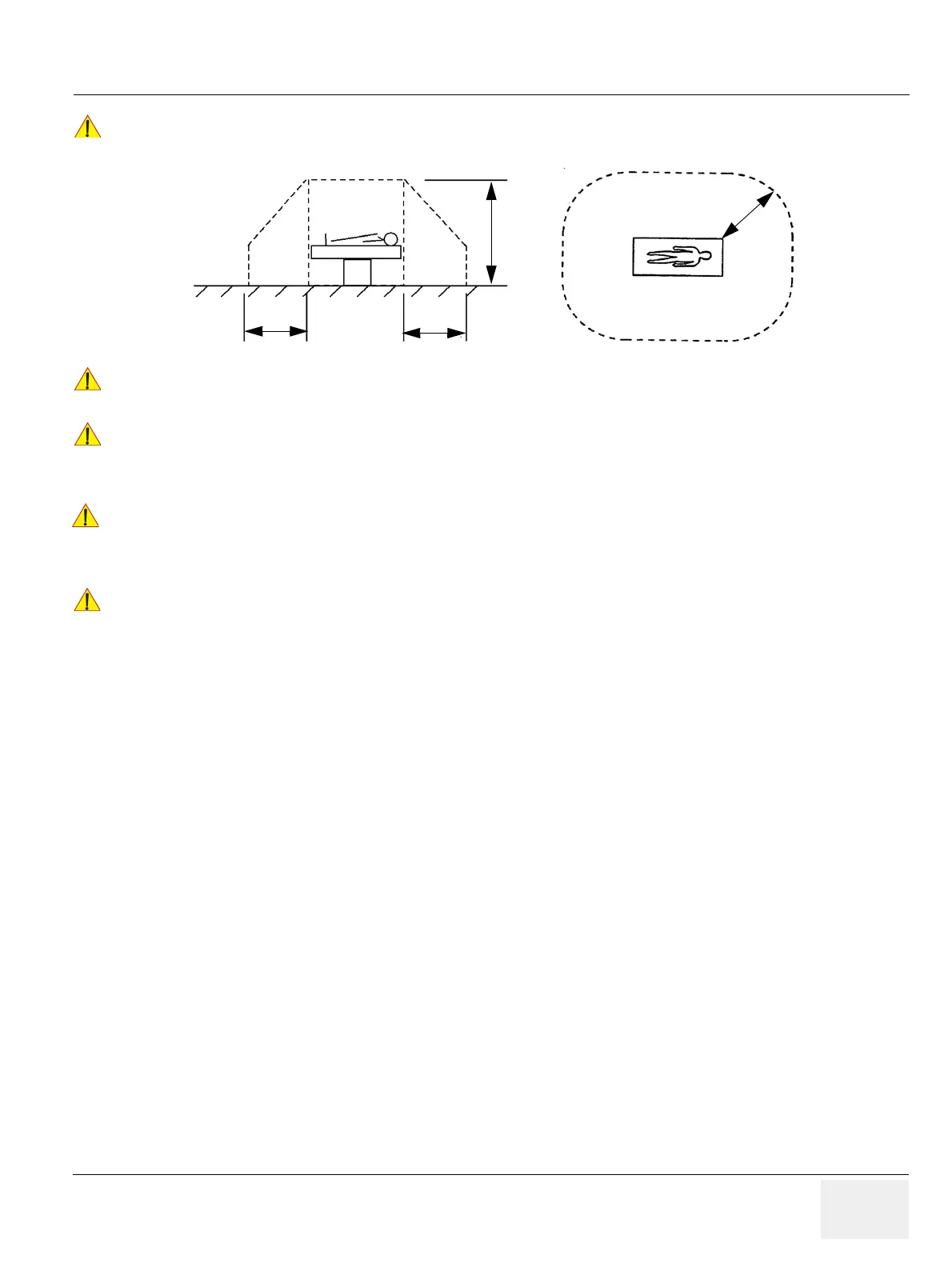

2,5 m
1,5 m
1,5 m1,5 m

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
