GE LOGIQ P9 Service Manual

GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 10 - Care & Maintenance 10-15
2) Press Download.

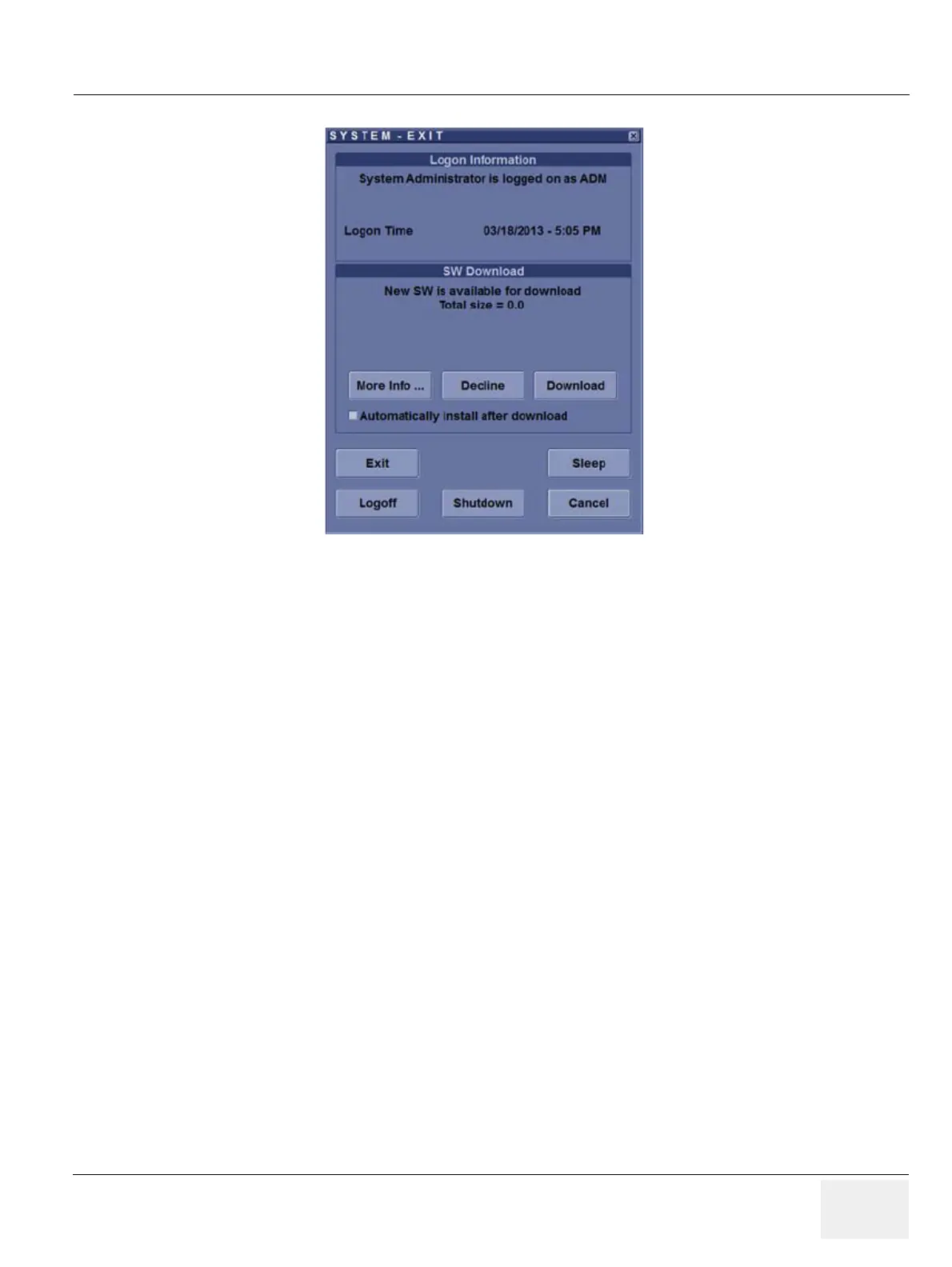

Figure 10-7 System - Exit Dialog Window
The download process starts. The progression of the download process is displayed.
NOTE: The download step can be paused. While paused, you can return to normal operation. However, once
the software installation has begun, the system is not useable until the software installation is done. The
installation can take up to 45 minutes to complete. While installing, DO NOT turn off system power or
the system can be left in a unusable mode. For this reason, you may want to perform the software
download one evening and then install the software the next evening.
NOTE: A typical software update of about 600 Mb may take up to 60 minutes to download, but times may vary
depending on your location and network connection. If you are downloading both the Operating System
and software update, the total size is about 9 GB and will take much longer to download.

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
