IIONTf,'A
V45 INTERCEPTOR,
CLUTCH
SYSTEM

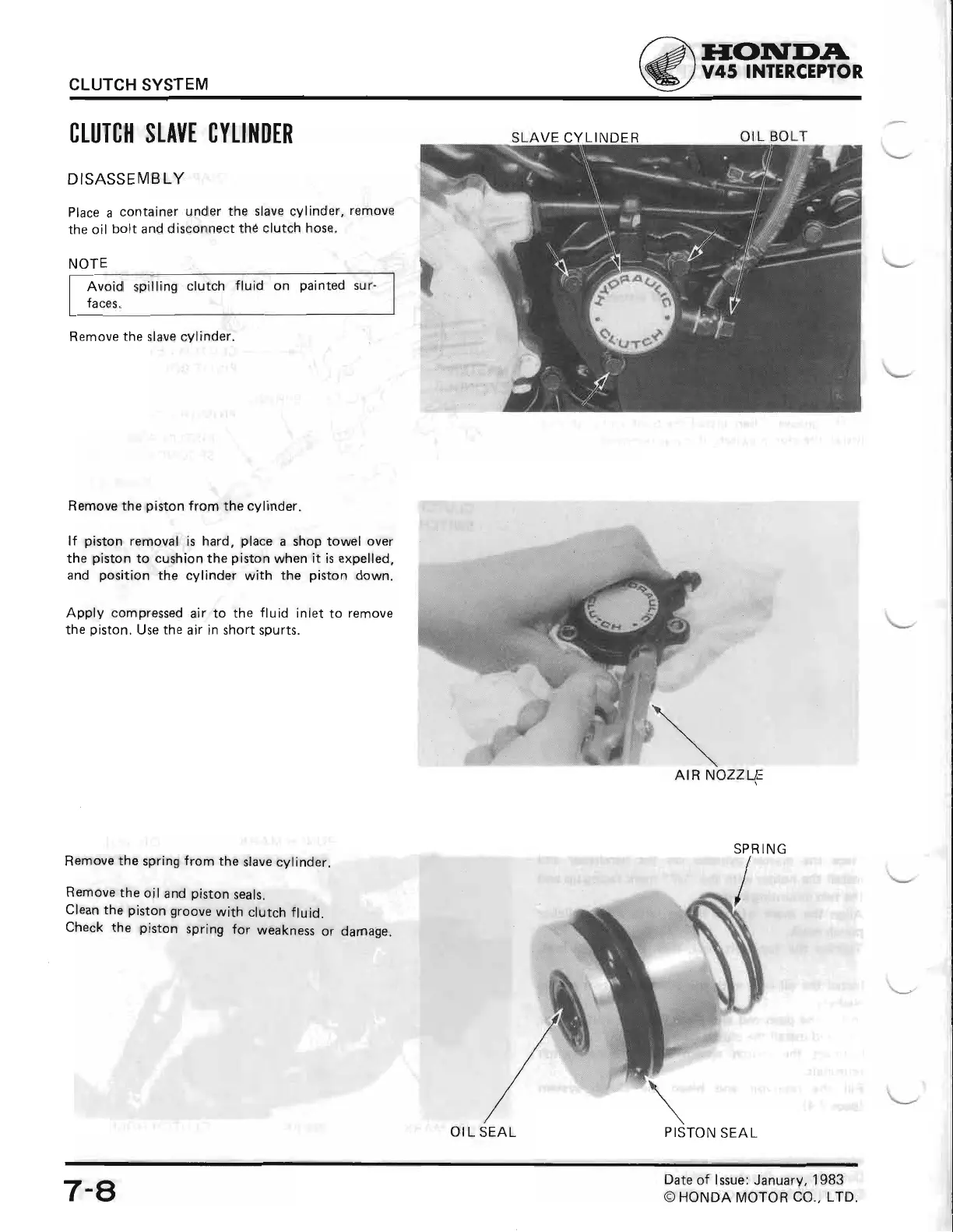

CLUTC||
SLAI|E
CYLINDER
DISASSEMB LY
Place
a
container
under
the slave cylinder,
remove
the oil bolt and
disconnect
the
clutch hose.
NOTE
Avoid spilling
clutch
fluid
on
painted
sur-
faces.
Remove
the slave cylinder.
Remove
the
piston
from the cylinder.
lf
piston
removal is hard,
place
a shop towel over
the
piston
to cushion the
piston
when
it is expelled,
and
position
the cylinder
with
the
piston
down.
Apply compressed
air to the
fluid
inlet to
remove
the
piston.
Use the air in
short spurts.
Remove the
spring
from
the
slave
cylinder.
Remove
the oil
and
piston
seals.
Clean
the
piston
groove
with
clutch
fluid.
Check
the
piston
spring for
weakness
or
damage.
\
PISTO
AIR NOZZLE
SPRING
N
SEAL
SLAVE CYLINDER
OIL BOLT
7-8.
OIL SEAL
Date
of
lssue:
January,
1983
O
HONDA
MOTOR
CO., LTD.
