V45 INTER,CEPIOR
COOLING
SYSTEM

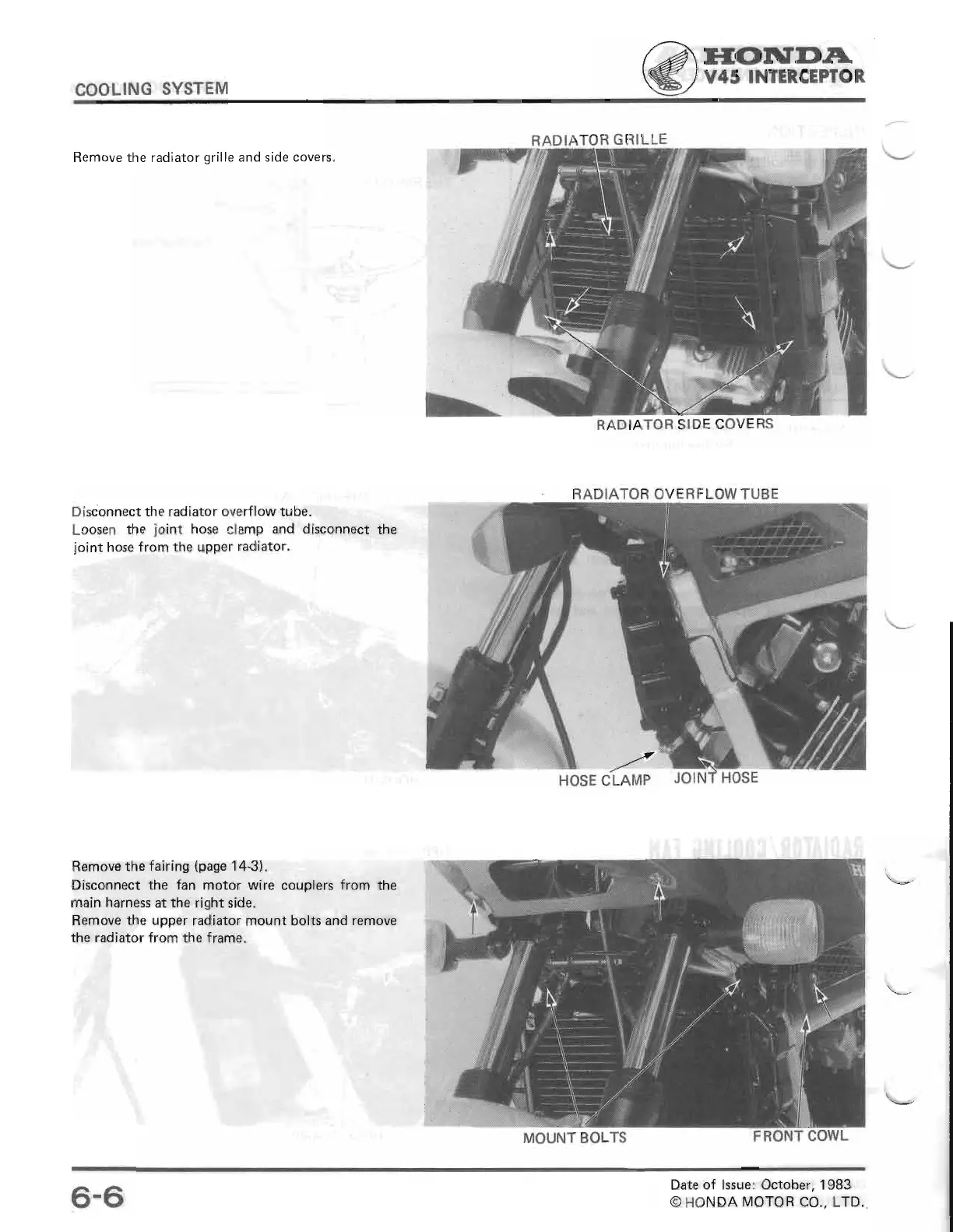

Remove
the radiator
grille
and side covers.
Disconnect the
radiator overflow tube.
Loosen
the
joint
hose clamp and disconnect the
joint
hose
from the upper
radiator.
Remove
the
fairing
(page
1 4-3).
Disconnect the fan motor wire
couplers
from
the
main harness
at
the right
side.
Remove the upper radiator mount
bolts and
remove
the
radiator from
the
frame.
RADIATOR
GRILLE
RADIATOR
SIDE
COVERS
RADIATOR
OVERFLOW
TUBE
,:
:1'
HOSE
CLAMP
6-6
MOUNT
BOLTS
