V45
INTERCEPTOR
CYLINDER
HEAD/VALVE

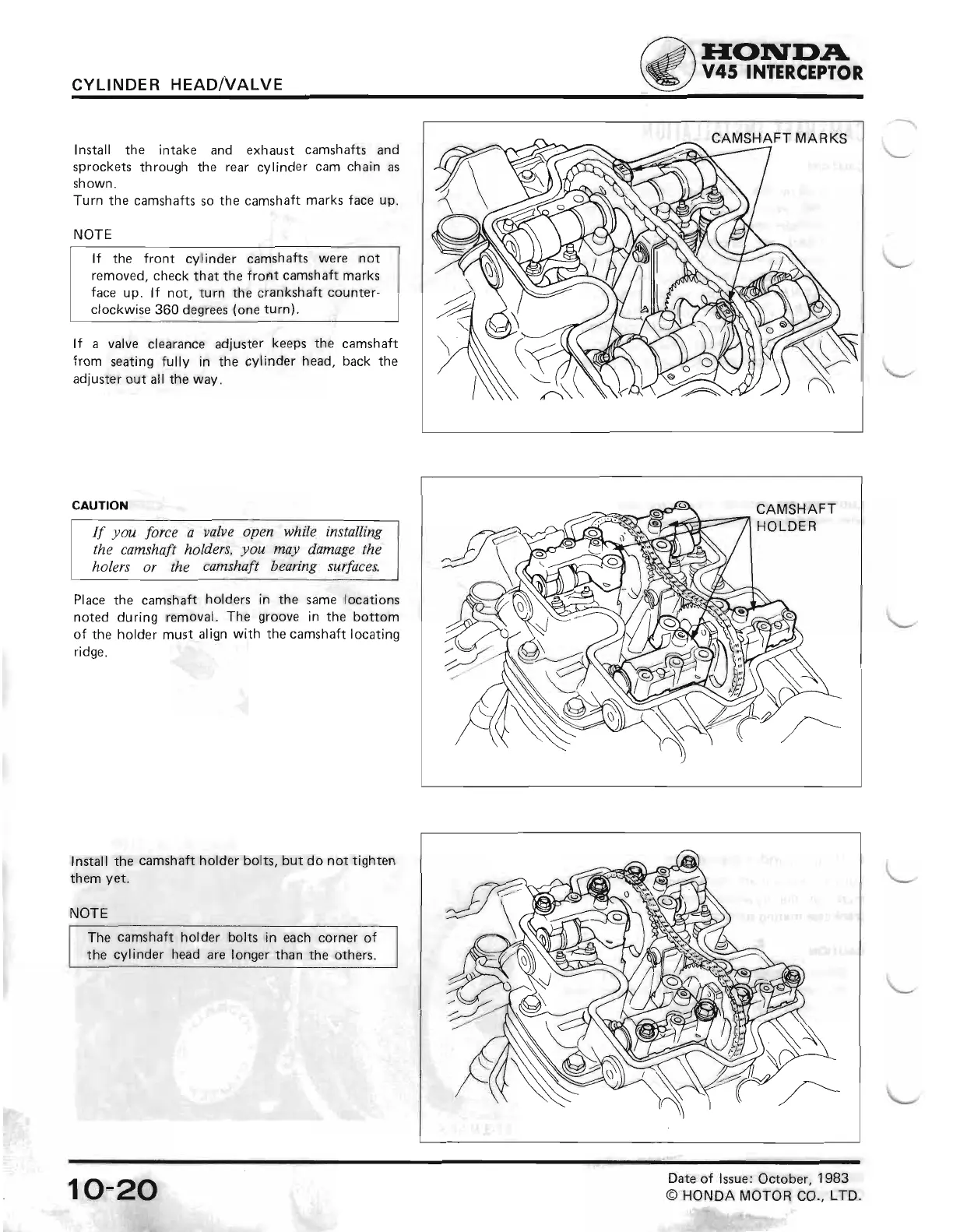

Install the
intake and exhaust
camshafts
and
sprockets through
the rear cylinder
cam chain as
shown.
Turn
the
camshafts so the camshaft marks face up.
NOTE
lf
the
front
cylinder camshafts were not
removed,
check that
the
front
camshaft marks
face
up.
lf
not,
turn the crankshaft counter-
clockwise
360
degrees
(one
turn).
lf a valve
clearance adjuster
keeps
the
camshaft
from
seating
fully
in the cylinder head, back
the
adjuster out
all the way.
CAUTION
If
you
force
a valve open
while
installing
the
camshaft holders,
you
may damage
the
holers
or the camshaft bearing surfaces.
Place
the
camshaft
holders in
the same locations
noted
during removal.
The
groove
in
the bottom
of the holder
must align with the camshaft locating
ridge.
Install
the
camshaft
holder
bolts, but do not tighten
them
yet.
NOTE
The
camshaft
holder bolts in
each corner of
the
cylinder
head are longer than
the others.
CAMSHAFT MARKS
2
'\
ii..1::,;;,
rilt{du,,
10-20
Date of lssue:
October, 1983
