Honda InterceptorVF700F - VFR75001790052.PDF

IIOTVDA
V45
INTERCEPTOR

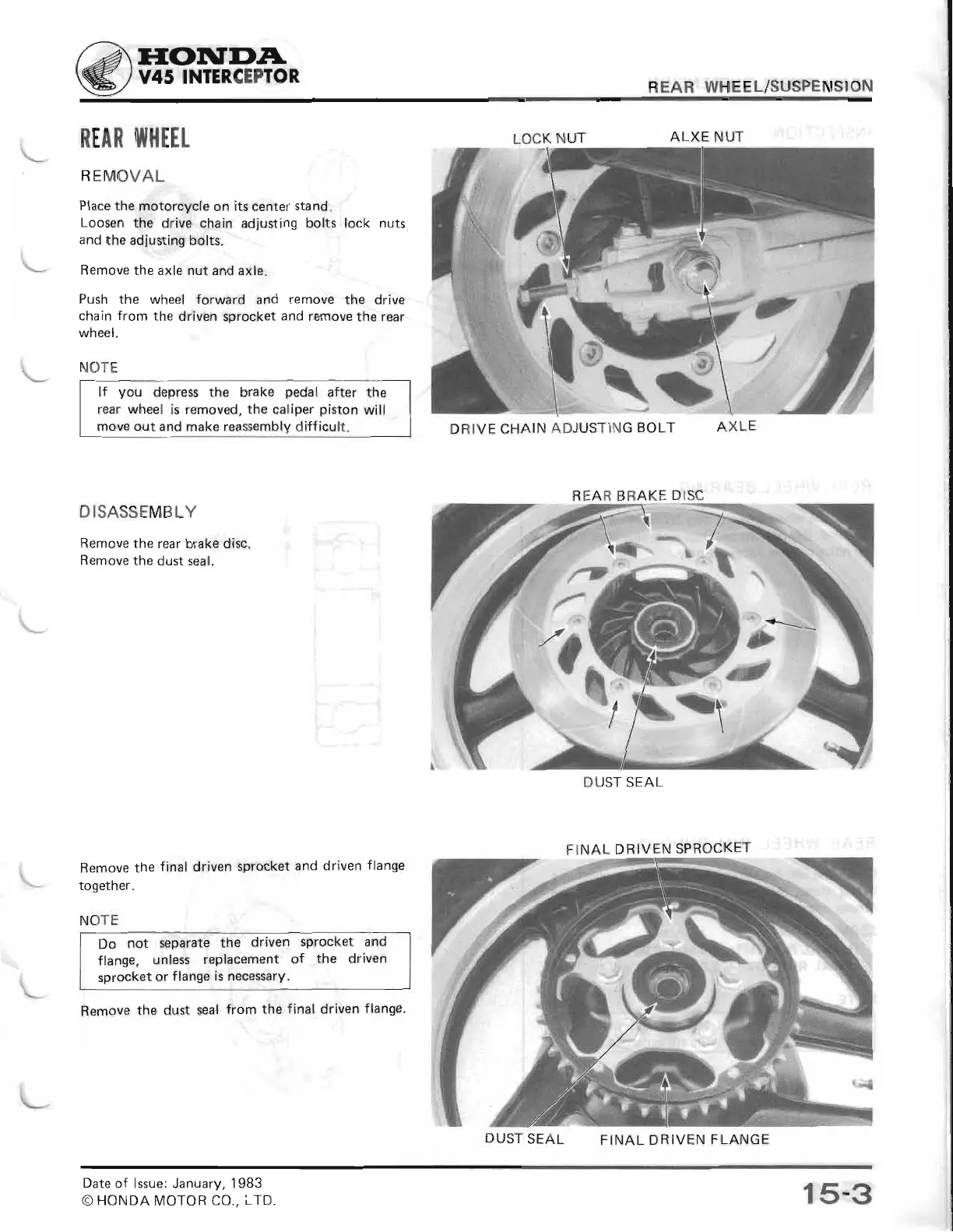

REAR
WHEEL/SUSPENSION
REAR l|l]|ETL
REMOVAL
Place
the motorcycle
on
its
center
stand.
Loosen
the
drive chain adjusting
bolts lock
nuts
and
the adjusting
bolts.
Remove
the axle nut
and axle.
Push the
wheel forward
and remove
the
drive
chain from
the
driven sprocket
and remove
the rear
wheel.
NOTE
lf
you
depress the
brake
pedal
after
the
rear wheel is
removed, the
caliper
piston
will
move out and make
reassembly
difficult.
DISASSEMB
LY
Remove
the
rear brake
disc.
Remove
the
dust seal.
Remove the
final driven
together.
NOTE
sprocket
and driven
flange
Do
not separate
the
driven
sprocket
and
f lange,
unless replacement
of
the
driven
sprocket
or
flange is necessary.
Remove
the
dust seal
from
the
final driven
flange.
LOCK
NUT
DRIVE CHAIN
ADJUSTING
BOLT
AXLb
REAR
BRAKE DISC
ALXE
NUT
DUST SEAL
FINAL
DRIVEN
SPROCKET
DUST
SEAL
FINAL DRIVEN FLANGE
15-3
Date of lssue: January, 1983
@
