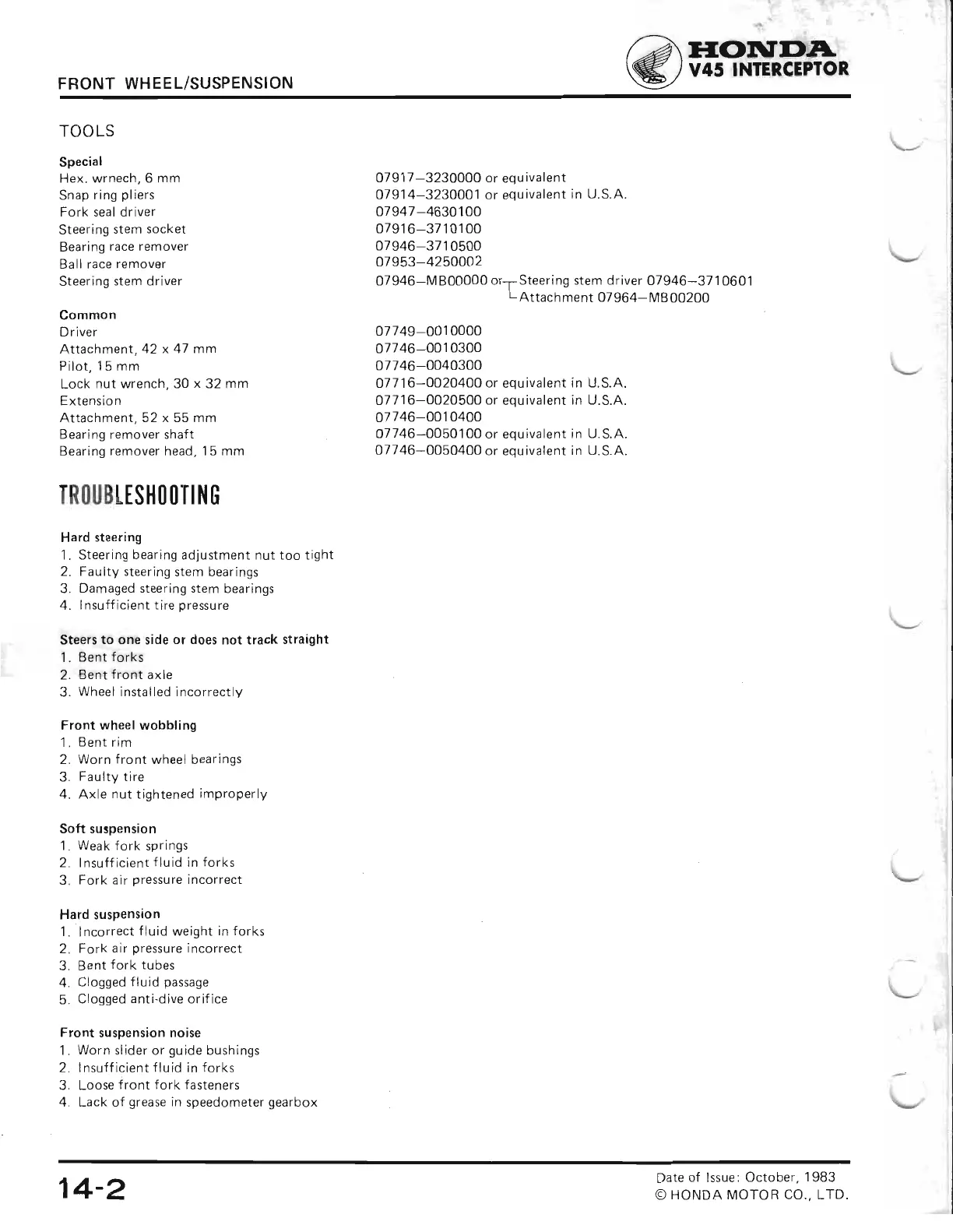

FRONT
WHEEL/SUSPENSION
TOOLS
Special
Hex. wrnech,
6 mm
Snap
ring
pliers
Fork seal driver
Steering
stem
socket
Bearing
race
remover
Ball race remover
Steering
stem driver
Common
Driver
Attachment,
42 x 47 mn
Pilot, 15
mm
Lock
nut wrench, 30
x
32 mm
Extension
Attachment, 52 x 55
mm
Bearing
remover shaft
Bearing
remover
head,
15
mm
TROUBLES1|OOTI NG
Hard steering
1 . Steering
bearing adjustment
nut too tight
2.
Faulty
steering
stem bearings
3. Damaged steering stem bearings
4. Insuff icient tire
oressure
Steers
to one side
or does not track
straight
1.
Bent forks
2.
Bent
front
axle
3.
Wheel installed incorrectly
Front wheel
wobbling
1. Bent rim
2.
Worn
front
wheel
bearings
3.
Faulty
tire
4. Axle nut
tightened
improperly
Soft suspension
1
.
Weak
fork
springs
2. Insufficient fluid in forks
3.
Fork
air
pressure
incorrect
Hard suspension
1. Incorrect fluid
weight
in forks
2.
Fork
air
pressure
incorrect
3.
Bent fork tubes
4. Clogged
f luid
passage
5.
Clogged anti-dive orif ice
Front suspension noise
1.
Worn slider
or
guide
bushings
2.
Insuff
icient
f
luid
in forks
3. Loose
iront fork fasteners
4. Lack of
grease
in speedometer
gearbox
07917
-3230000
or
equivalent
07914*3230001 or
equivalent
in U.S.A.
07947-4630100
0791 6-371 0r 00
07946-371 0500
07953-4250002
07946-M
800000
or-- Steeri ng stem d river
07946-37
1
0601
L
Attachment
07964-MB00200
07749-001
0000
07746-001
0300
07746-0040300
07716-0020400 or
equivalent
in U.S.A.
07716-0020500 or
equivalent
in U.S.A.
07746-001
0400
07746-0050100 or equivalent in U.S.A.
07746-0050400
or equivalent
in U.S.A.
-
