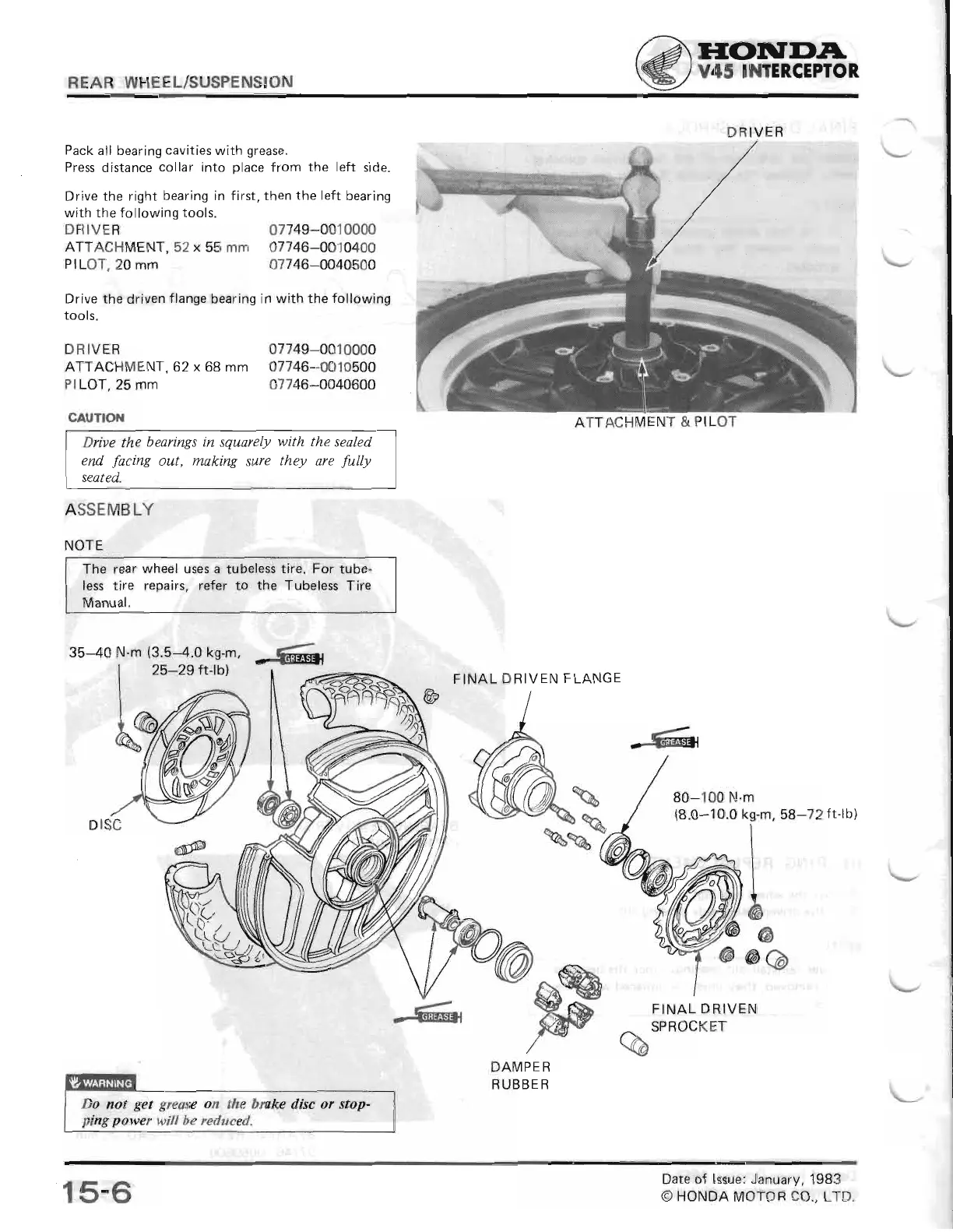

REAR WHEEL/SUSPENSION
Pack
all bearing
cavities
with
grease.
Press
distance collar
into
place
from
the
left
side.
Drive the right bearing in
first, then
the left
bearing
with the following
tools.
DR
IVER
07749-001 0000
ATTACHMENT,52
x
55 mm
07746-0010400
PILOT,
20 mm
07746-0040500
Drive the
driven
flange
bearing in with
the following
tools.
DRTVER
07749-0010000
ATTACHMENT,62
x
68 mm
07746-0010500
PlLOT,25
mm
07746-0040600
CAUTION
Dive
the bearings
in squarely with
the sealed
end
facing
out, making
sure they are
fully
seated.
ASSEMBLY
NOTE
The rear wheel
uses a
tubeless
tire.
For
tube-
less tire
repairs,
refer
to the
Tubeless
Tire
Manual.
35-40 N.m
(3.5-4.0
ks-T,
-
6{
FINAL
DRIVEN
FLANGE
80-100
(8.0-10
N'm
.0 kg-m
ht
N\I
Wb
@@
,
58-72
ft-lb)
DRIVER
ATTACHMENT & PILOT
25-29
ft-tb)
w%
DAMPER
RUBBER
@@@
FINAL
DRIVEN
SPROCKET
15-6
