IIONTf,DA
V45
INTERCEPTOR

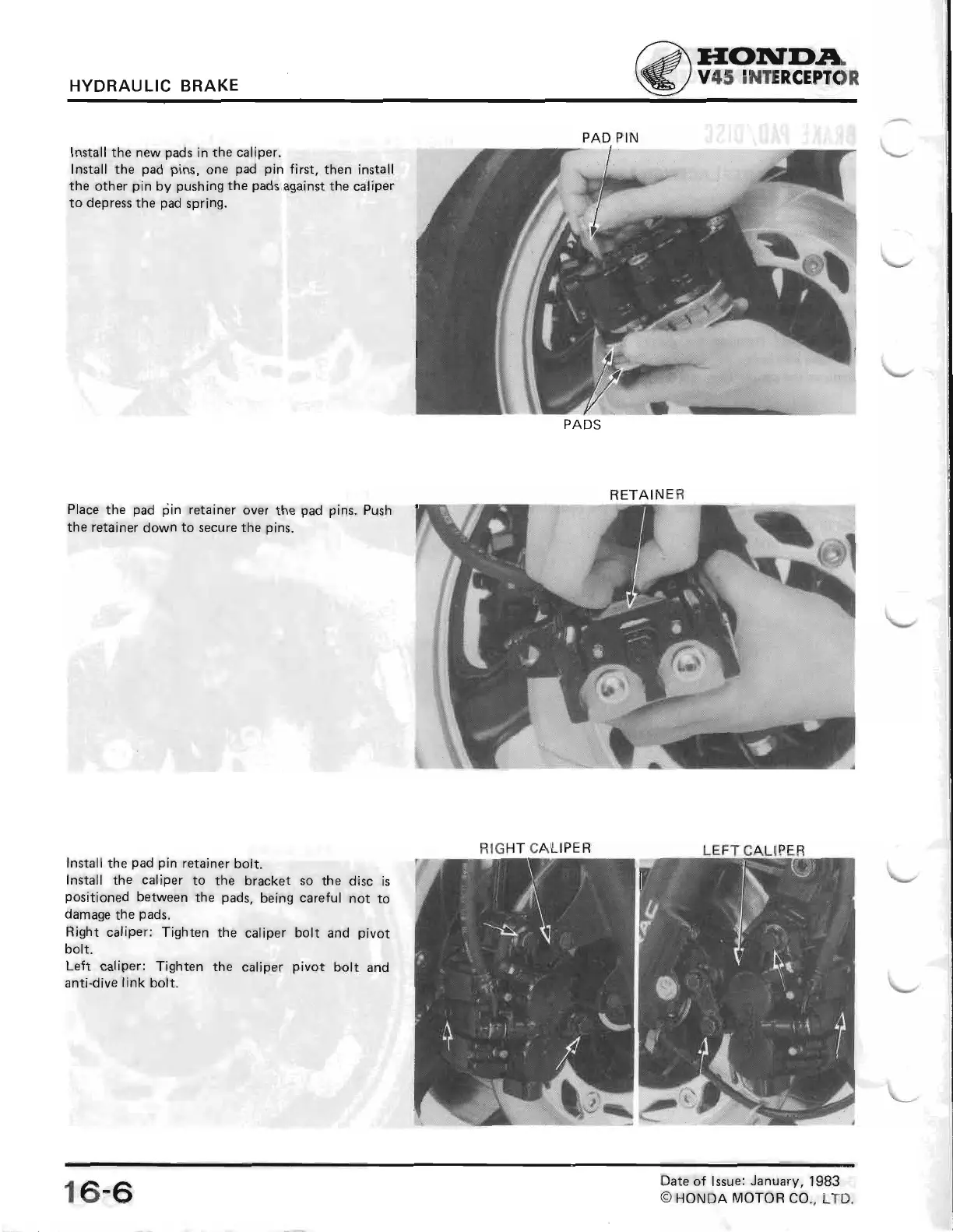

HYDRAULIC BRAKE
Install the new
pads
in the caliper.
Install the
pad pins,
one
pad pin
first,
then
install
the
other
pin
by
pushing
the
pads
against the caliper
to depress the
pad
spring.
Place
the
pad
Siin
retainer over
the
pad pins.
Push
the retainer
down
to
secure the
pins.
Install the
pad pin
retainer
bolt.
Install
the caliper
to
the bracket
so the
disc
is
positioned
between
the
pads,
being
careful
not
to
damage
the
pads.
Right
caliper:
Tighten
the caliper
bolt
and
pivot
bolt.
Left
caliper:
Tighten
the
caliper
pivot
bolt
and
anti-dive
link
bolt.
PAD PIN
PADS
RETAINER
RIGHT CALIPER
LEFT
CALIPER
16-6
Date
of lssue:
January,
1983
