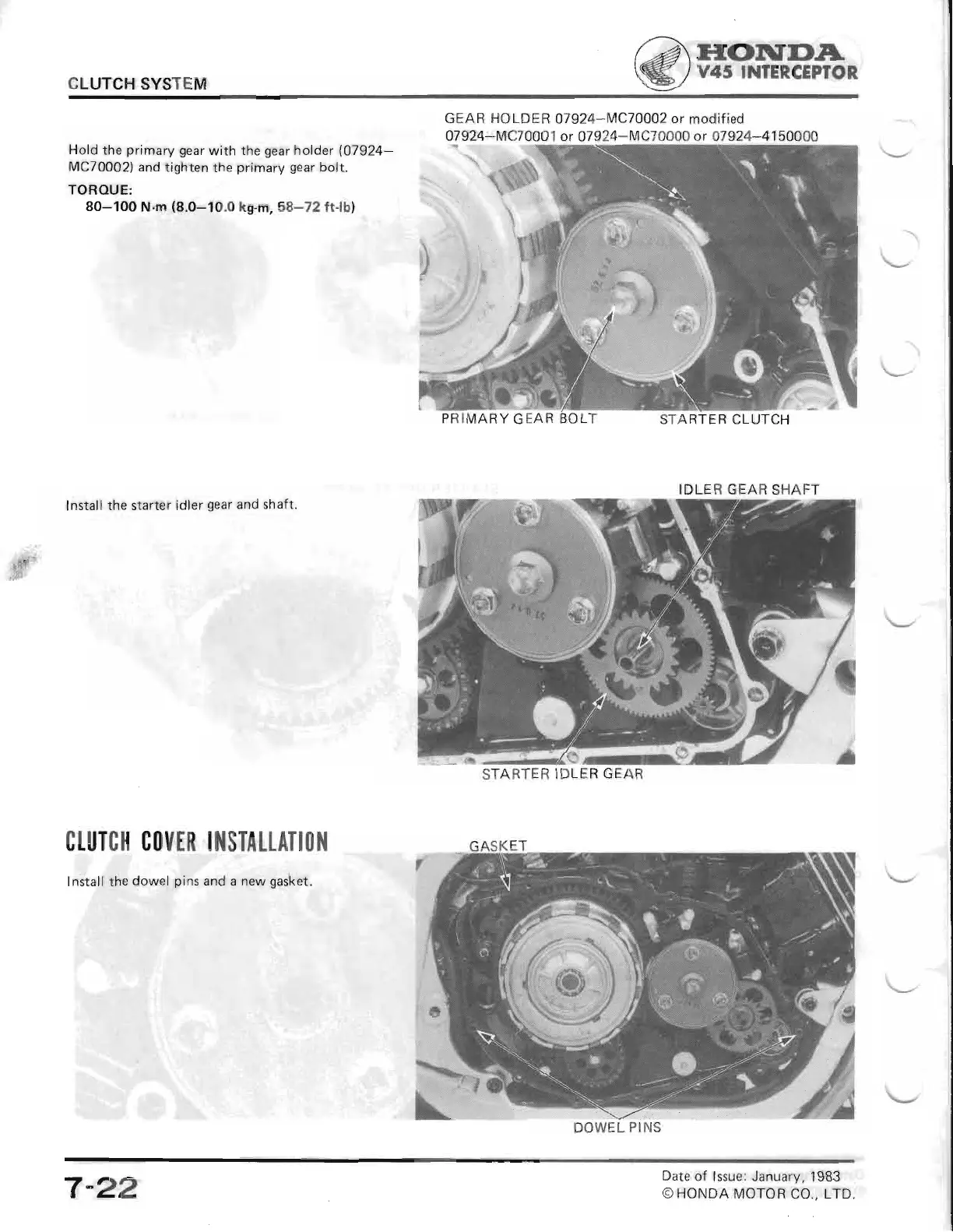

INTERCEPTOR
CLUTCH
SYSTEM
Hold
the
primary
gear
with the
gear
holder
107924-
MC70002)
and tighten
the
primary gear
bolt.
TORQUE:
80-100
N.m
(8.0-10.0
ks-m,
58-72 ft-lb)
Install the starter
idler
gear
and shaft.
CTUTC]|
COI|ER IIISTALIATIOl{
Install the
dowel
pins
and a new
gasket.
GEAR HOLDER
07924-MC70OO2
or modified
07
924-MC7 O00 1 o r
07 924-MC7 0000 o r
07 924-41 5O0O0
STARTER CLUTCH
**
"-$ij
IDLER GEAR
SHAFT
$
STARTER
IDLER
GEAR
DOWEL
PINS
7-22
