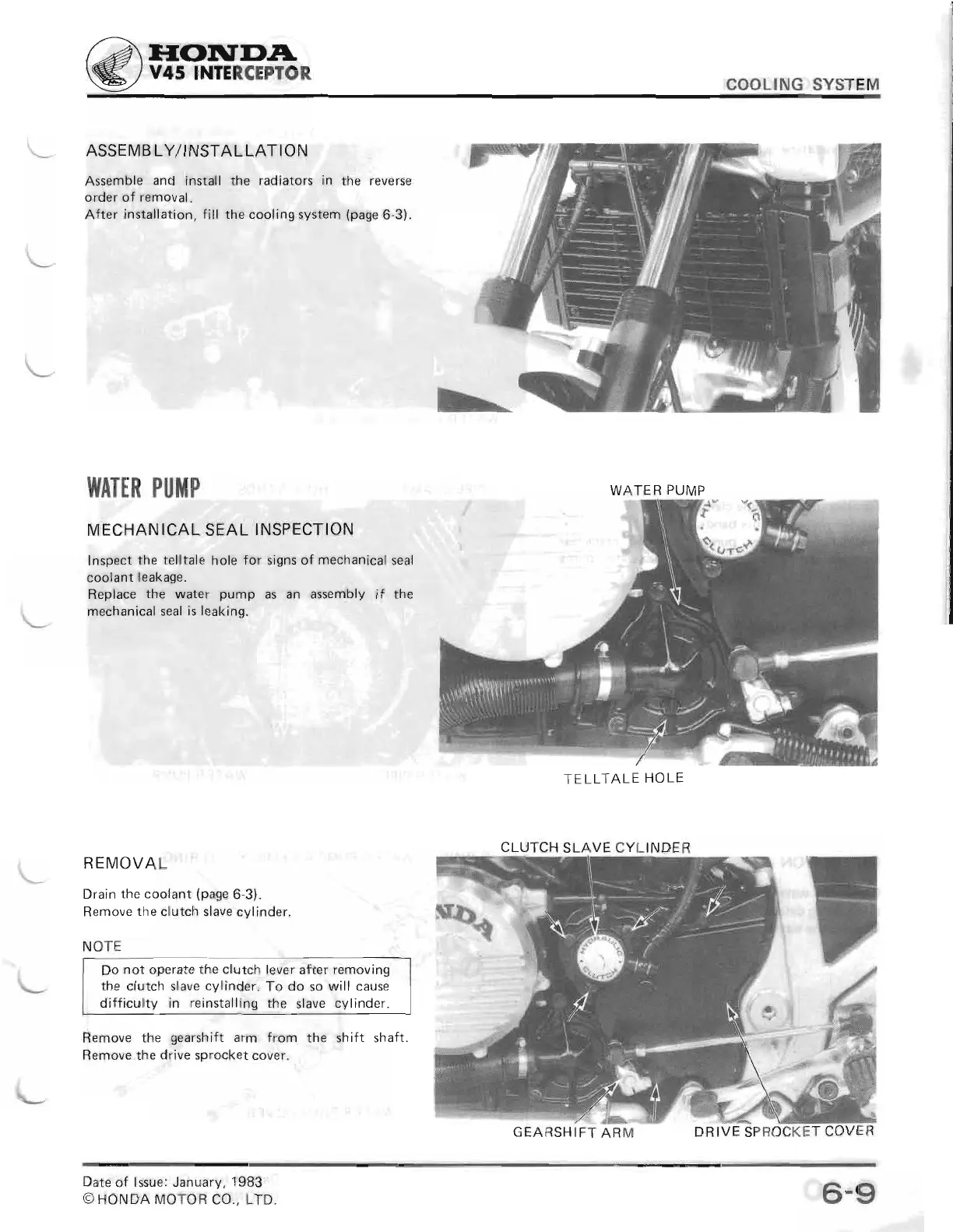

IIOTTTf,DA
V45 INTERCEPTOR
COOLING
SYSTEM
ASSE
MB LY/
I
NSTAL
LAT
I
ON
Assemble
and
install
the
radiators in the
reverse
order of
removal.
After
installation,
fill
the cooling system
(page
6'3).
tryATER
PU]I|P
MECHANICAL
SEAL
INSPECTION
Inspect
the
telltale
hole
for
signs
of
mechanical seal
coolant
leakage.
Replace
the
water
pump
as an
assembly if
the
\
mechanical
seal
is
leaking.
REMOVAL
Drain
the coolant
(page
6-3).
Remove
the clutch slave
cylinder.
NOTE
Do
not operate
the clutch
lever after removing
the clutch slave cylinder. To
do
so
will cause
difficulty
in
reinstalling the slave
cylinder.
Remove
the
gearshift
arm
from
the shift
shaft.
Remove the
drive
sprocket
cover.
ryq
WATER
PUMP
TELLTALE
HOLE
CLUTCH SLAVE CYLINDER
#4
;qis:
I
L-
GEARSHIFT ARM
DRIVE SPROCKET
6-9
Date of lssue:
January, 1983
O HONDA MOTOR CO.,
LTD.
