IilONTXDA
VT7OOI750
INTERCEPIOR

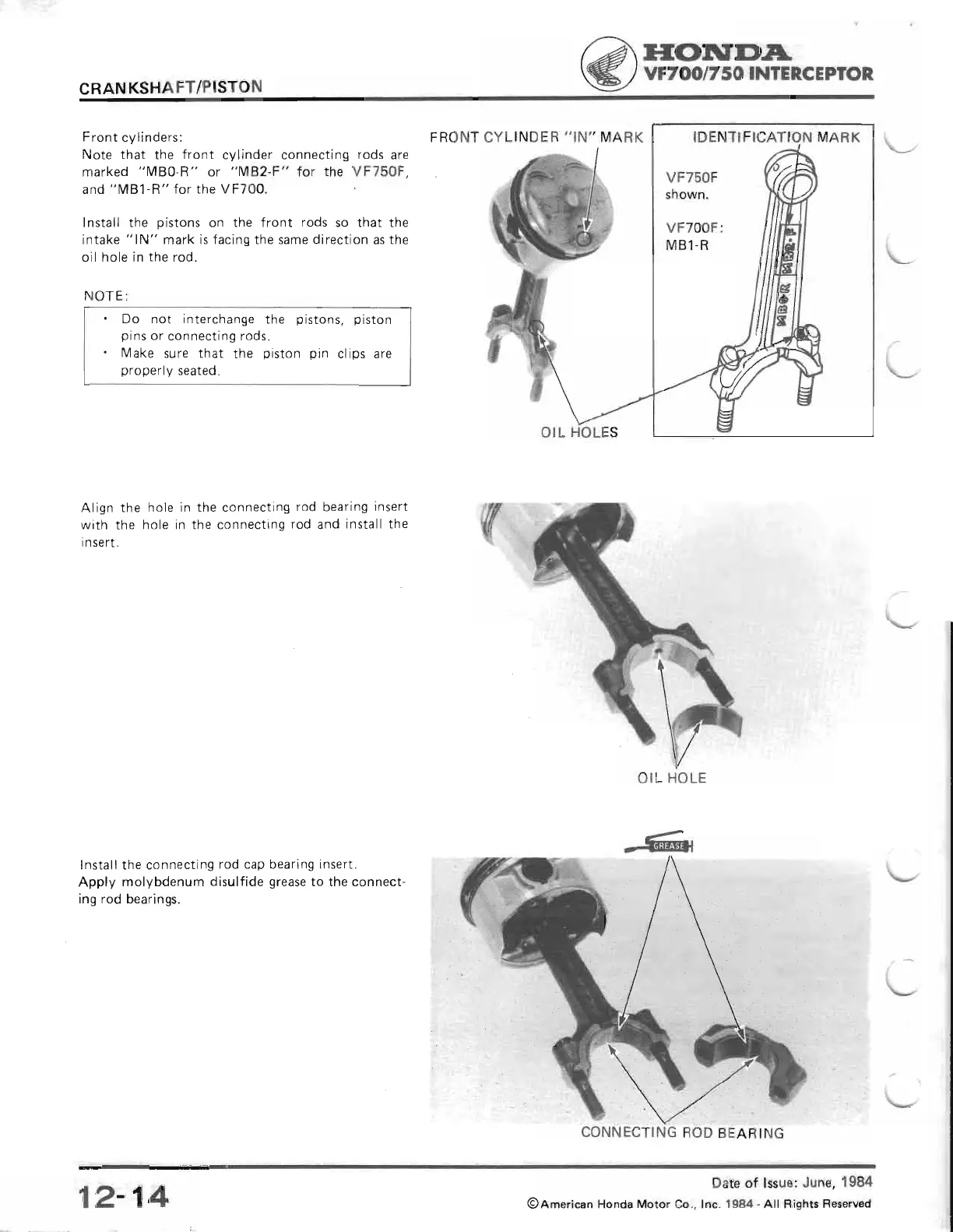

CRANKSHAFT/PISTON
Front
cylinders:
FRONT
Note
that the
front
cylinder connecting
rods
are
marked
"MBO-R"
or
"MB2-F"
for
the
VF750F.
and
"M81-R"
for
the VF700.
Install
the
pistons
on the
front rods
so
that
the
intake
"lN"
mark is
facing
the same
direction
as
the
oil
hole
in the
rod.
NOTE:
'
Do
not
interchange
the
pistons,
piston
pins
or connecting rods.
'
Make
sure that the
piston pin
clips
are
properly
seated.
Align the
hole in the
connecting
rod
bearing
insert
with the
hole in the connecting
rod
and
install the
i nsert.
Install the connecting
rod
cap bearing
insert.
Apply molybdenum disulfide
grease
to
the
connect-
ing rod bearings.
CYLI
ND E R
IDENTIFICATION MARK
VF75OF
shown.
V
FTOOF:
MB1.R
OIL
HOLE
CONNECTING
ROD
BEARING
Date of
lssue: June,
1984
@American
Honda Motor
Co., Inc.
1984
-
All Rights
Reserved
12-
14
