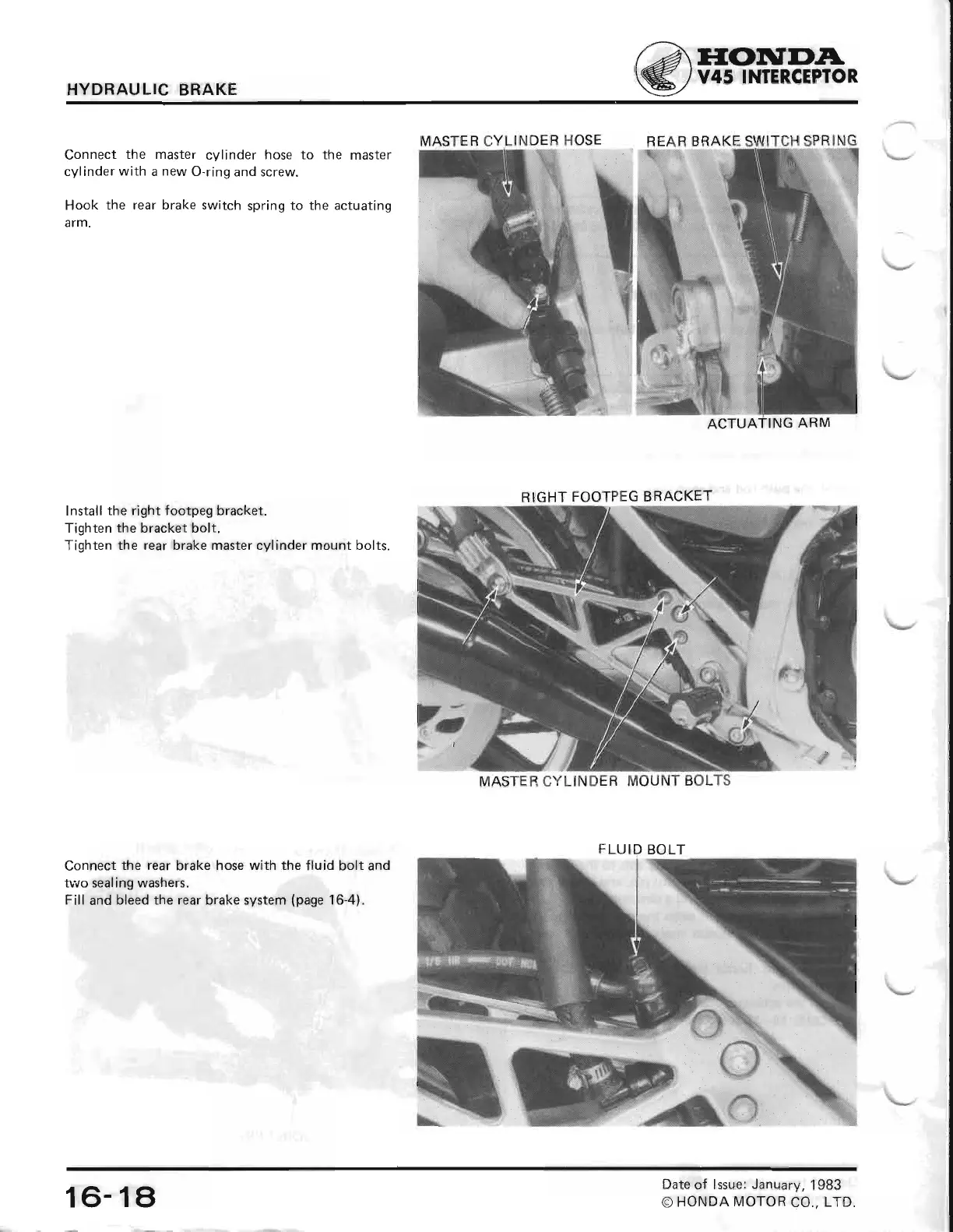

V45 INTERGEPTOR,
HYDRAULIC
BRAKE
Connect
the master cylinder
hose to the master
cylinder
with a new
O-ring
and screw.
Hook the
rear brake
switch
spring to the actuating
arm.
Install
the right
footpeg
bracket.
Tighten the bracket bolt.
Tighten
the rear brake
master
cylinder
mount
bolts.
Connect
the rear brake hose with the
fluid
bolt and
two sealing
washers.
Fill
and
bleed the rear
brake
system
(page
16-4).
MASTER
CYLINDER
HOSE
BRAKE
TCH SPRING
ACTUATING
ARM
RIGHT
FOOTPEG
BRACKET
MASTER
CYLINDER
MOUNT
BOLTS
FLUID
BOLT
16-
18
