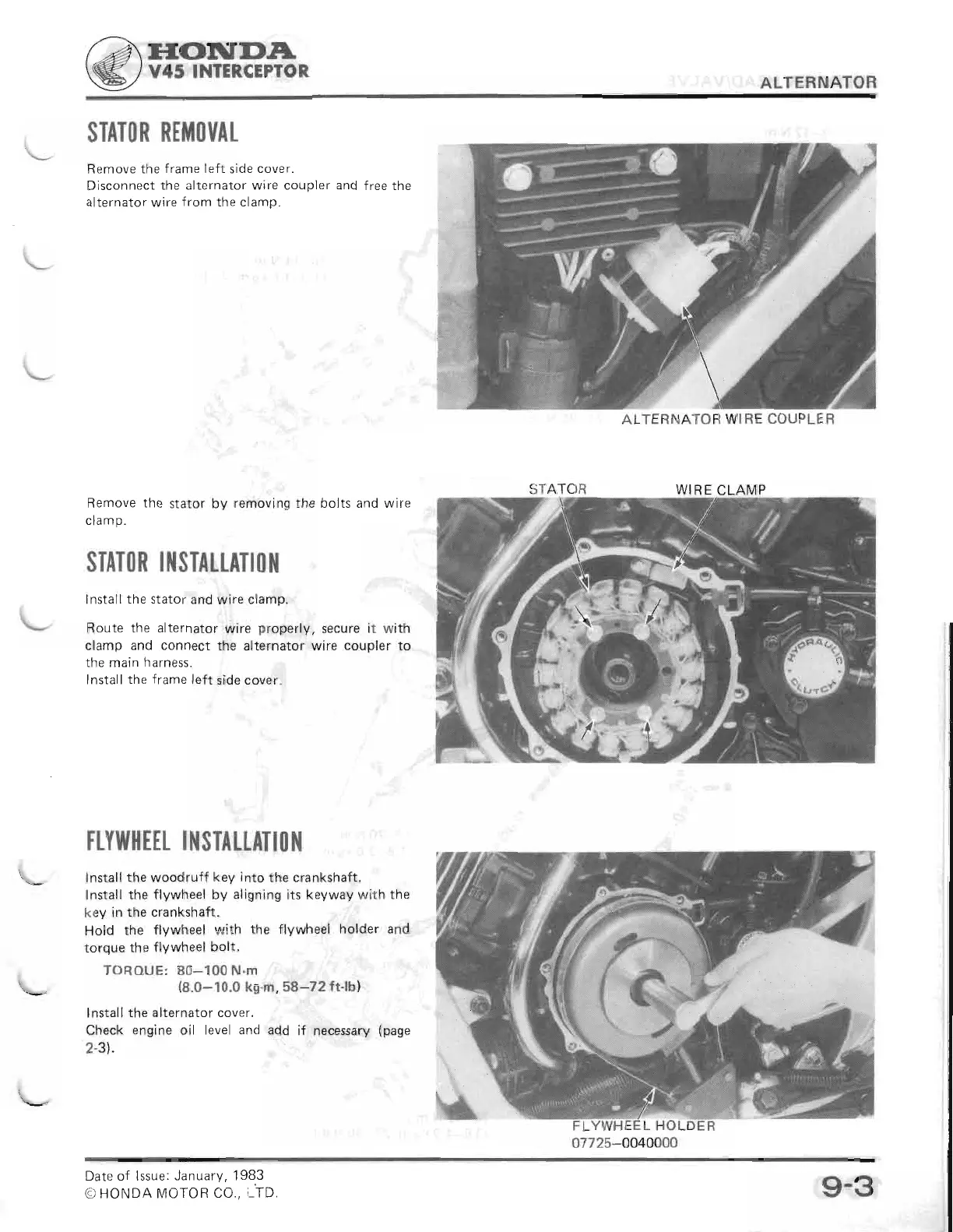

ALTERNATOR
STATOR
RE]||OI'AL
Remove
the frame left side cover.
Disconnect
the alternator
wire coupler and
free
the
alternator
wire
from
the clamp.
Remove the stator
by removing the bolts and wire
ctamo.
STATOR I]{STALIATIOl{
Install
the stator
and wire
clamP.
\-
Route the alternator
wire
properly,
secure
it with
clamp and connect
the alternator wire coupler to
the main
harness.
lnstall the
f rame left side cover.
TLY[|J]|ETL I ]{STATLATIO
N
Install
the woodruff key
into the crankshaft.
lnstall
the
flywheel by aligning
its keyway with the
key in
the crankshaft.
Hold
the
flywheel
with
the
flywheel
holder
and
torque
the
flywheel
bolt.
TOROUE:
80-100
N.m
(8.0-10.0
ks-m, 58-72
ft-lb)
lnstall the alternator cover.
Check
engine
oil level
and add if necessary
(page
2-3t.
WIRE CLAMP
ALTERNATOR
WI RE COUPLER
STATOR
07725-0040000
9-3
Date of lssue:
January,
1983
