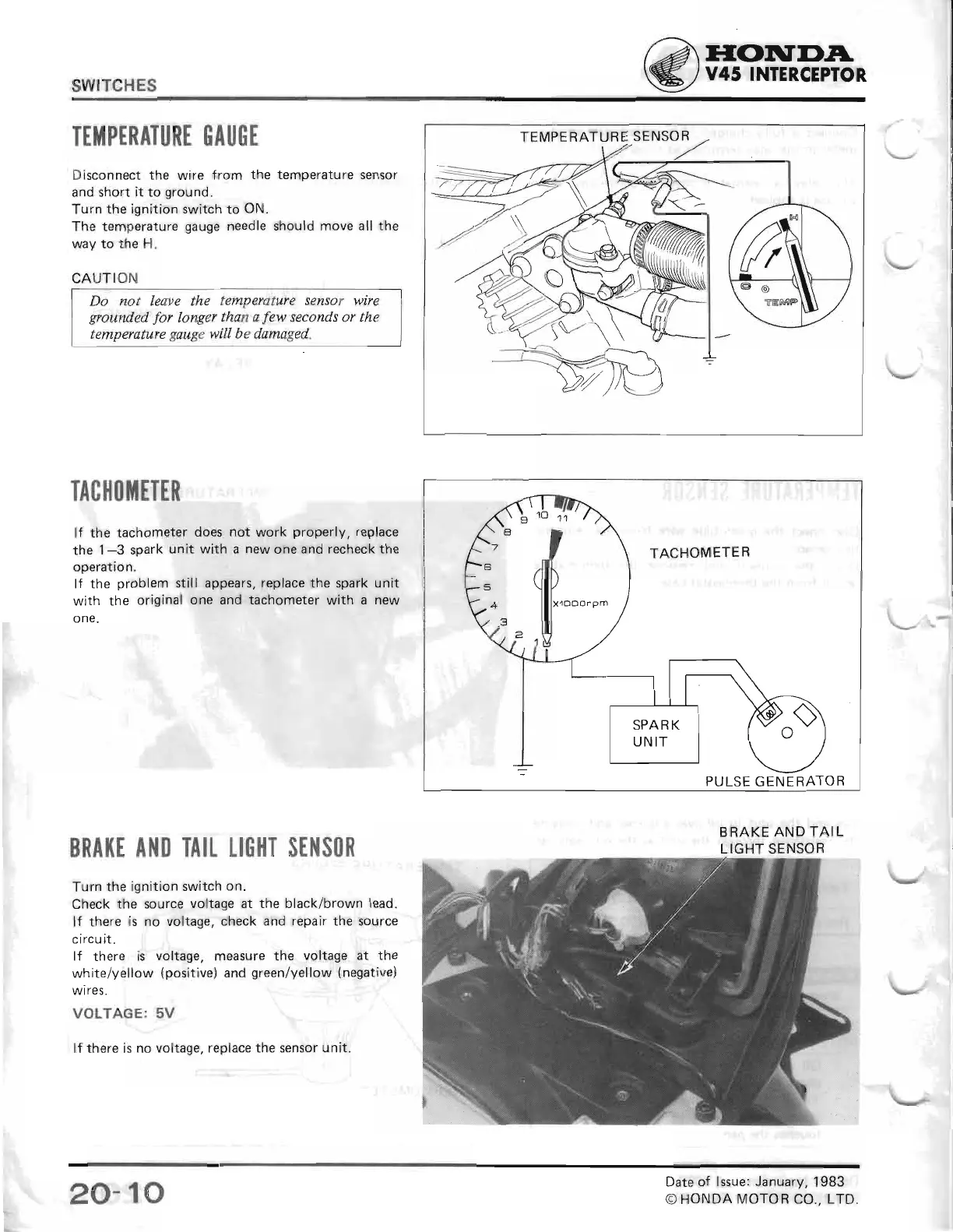

SWITCHES
TE]I|PERATURT GAUGT
Disconnect the wire
from
the temperature
sensor
and
short
it
to
ground.
Turn the ignition
switch to ON.
The temperature
gauge
needle
should
move all the
way
to the H.
CAUTION
Do
not leave the temperature sensor
wire
grounded
for
longer than a
few
seconds or the
temperature
gauge
will be
damaged.
TACl|OMETER
lf the tachometer does
not
work
properly,
replace
the 1-3
spark unit with a new
one
and recheck the
oPeration.
lf the
problem
still appears, replace the spark unit
with
the
original
one and tachometer
with
a new
one.
BRAI(T
AND TAIt LIG]|T SENSOR
Turn
the
ignition switch
on.
Check
the source
voltage at
the black/brown lead.
lf there
is no voltage, check
and
repair
the source
circu it.
lf there
is
voltage, measure
the
voltage at the
white/yellow
(positive)
and
green/yellow
(negative)
wires.
VOLTAGE:
5V
lf there
is no voltage, replace the sensor
unit.
TEMPERATURE
SENSOR
TACHOMETER
4
lllxlooorPm
PULSE
GENERATOR
BRAKE
AND
TAIL
LIGHT SENSOR
