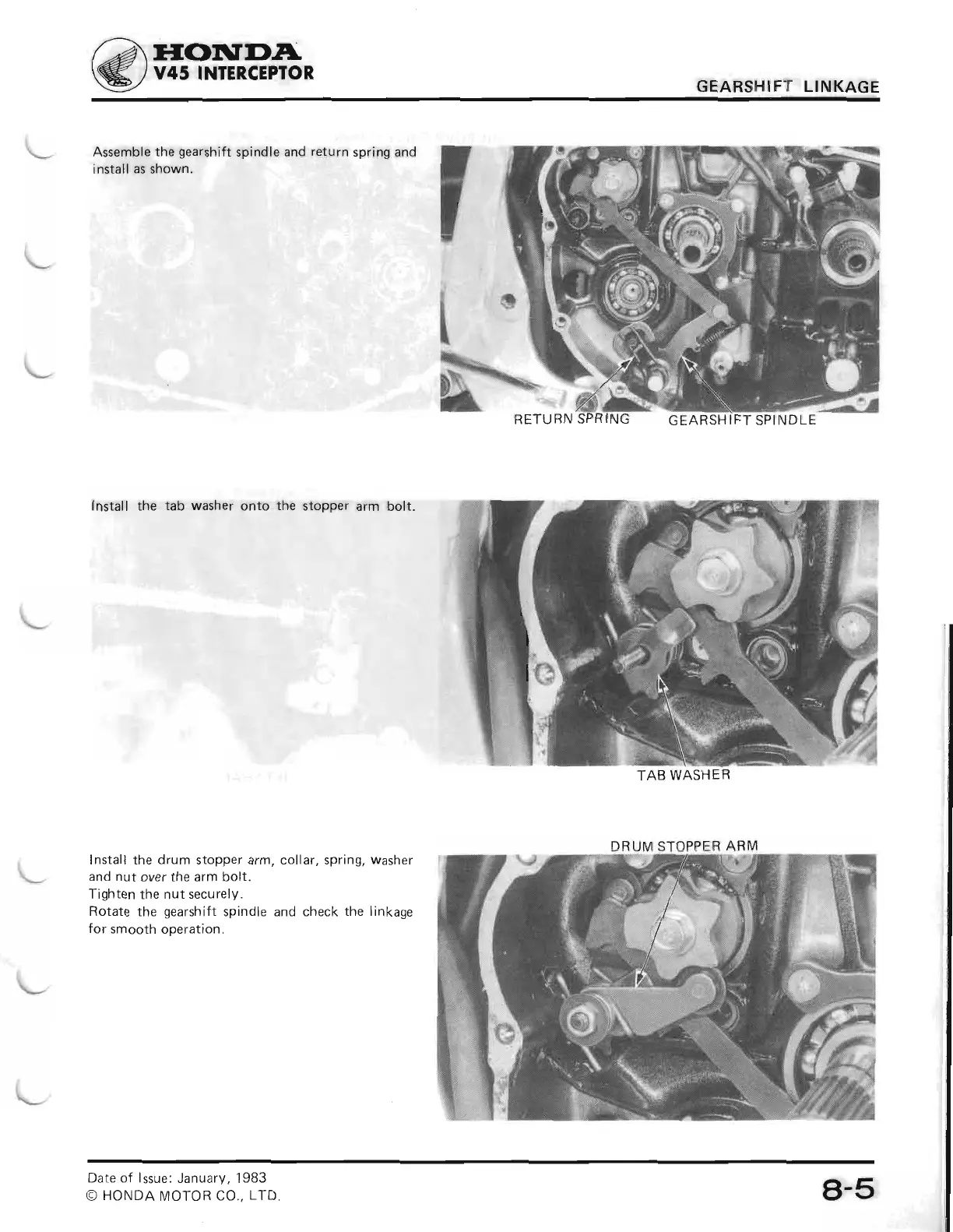

Honda InterceptorVF700F - VFR7500121.PDF

IIONTf,DA
V45
INTERCEPTOR
GEARSHIFT
LINKAGE
Assemble
the
gearshift
spindle
and
return spring
and
install
as shown.
lnstall
the
tab washer
onto
the
stopper
arm bolt.
Install
the
drum stopper
arm, collar,
spring,
washer
and
nut over the arm
bolt.
Tighten
the nut securely.
Rotate
the
gearshift
spindle
and check
the
linkage
for
smooth
operation.
RETURN
SPRING
GEARSHIFT
SPINDLE
$
TAB
WASHER
DRUM
STOPPER
ARM
8-5
Date of
lssue:
January, 1983
O
HONDA
MOTOR CO.,
LTD.
