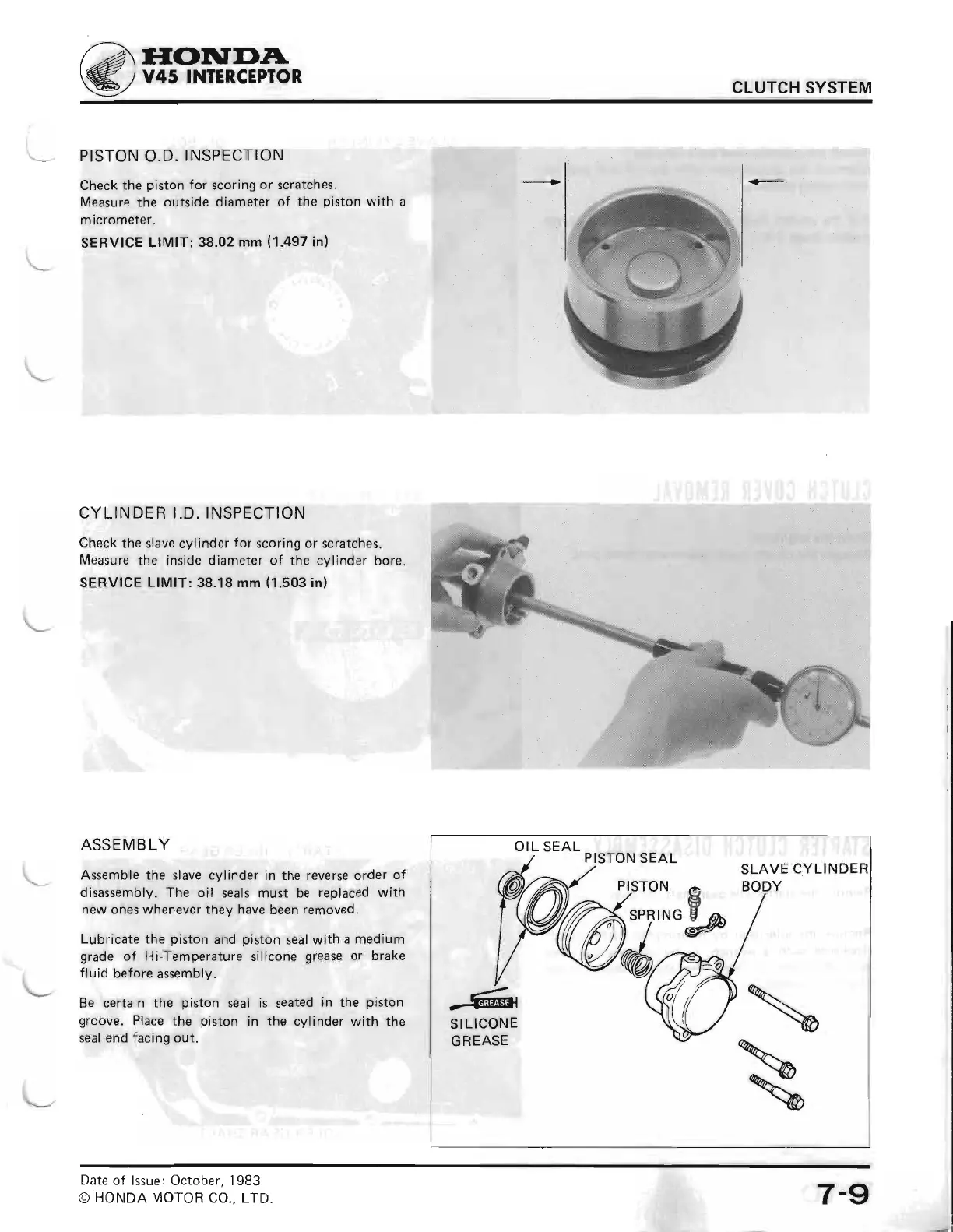

CLUTCH
SYSTEM
PISTON O.D.
INSPECTION
Check
the
piston
for
scoring
or scratches.
Measure the outside
diameter
of the
piston
with
a
m icrometer.
SERVICE
LIMIT: 38.02
mm
(1.497
in)
CYLINDER I.D. INSPECTION
Check
the slave cylinder
for
scoring or scratches.
Measure
the
inside diameter of
the cylinder bore.
SERVICE LIMIT:
38.18
mm
(1.503
inl
ASSEMBLY
Assemble
the slave cylinder in the reverse
order of
disassembly.
The
oil
seals
must be
replaced
with
new ones
whenever thev have
been
removed.
Lubricate the
piston
and
piston
seal
with a
medium
grade
of Hi-Temperature silicone
grease
or
brake
fluid
before
assembly.
Be certain the
piston
seal
is
seated
in
the
piston
groove.
Place
the
piston
in the
cylinder
with the
seal end
facing
out.
OIL
SEAL
PISTON
SEAL
SLAVE
CYLINDE
BODY
\
k
SILICONE
G
REASE
