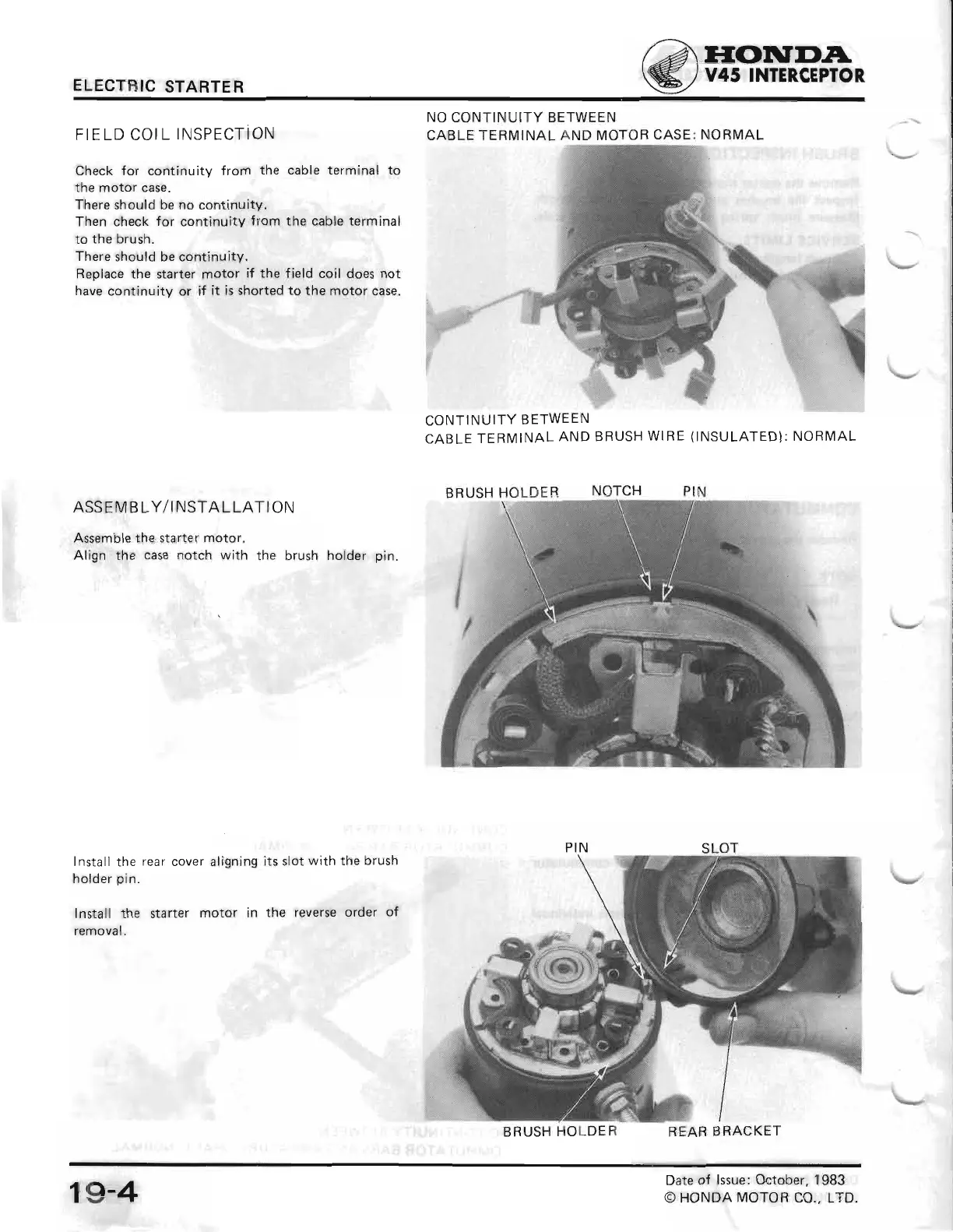

ELECTRIC
STARTER
FIELD COIL
INSPECTION
Check
for
continuity
from
the cable terminal to
the
motor case.
There should be no
continuity.
Then
check for
continuity
from
the cable terminal
to the brush.
There
should
be
continuity.
Replace the
starter motor if the field coil
does
not
have
continuity or if it is
shorted to the
motor
case.
ASSEM B
LY/I NSTA
L LATI ON
Assemble
the starter motor.
Align the
case notch with
the
brush
holder
pin.
NO
CONTINUITY BETWEEN
CABLE TERMINAL AND MOTOR CASE: NORMAL
CONTINUITY
BETWEEN
CABLE
TERMINAL
AND
BRUSH
WIRE
(INSULATED):
NORMAL
BRUSH
HOLDER
NOTCH
PIN
PIN
REAR BRACKET
',+f#
"
Install the
rear cover
aligning
holder
pin.
Install
the
starter
motor
in
removal.
its slot
with the brush
the
reverse order
of
:".ij
qj
19-4
BRUSH
HOLDER
