CYLINDER
HEAD/VALVE
CAUTION
.
Follow
this
procedure
from
beginning
to
end, even if
you
are only servicing one
cylinder head.
'
Check the camshaft
marks
so that
you
install each camshaft
in its
conect location.
'
The
marks on
the
camshaft mean:
EX RR, ER: Rear cylinder exhaust
IN RR, IR:
Rear
cylinder
intake
EX FR, EF: Front cylinder exhaust
IN FR, IF:
Front
cylinder
intake
.
The camshaft
sprockets are
interchangeable,

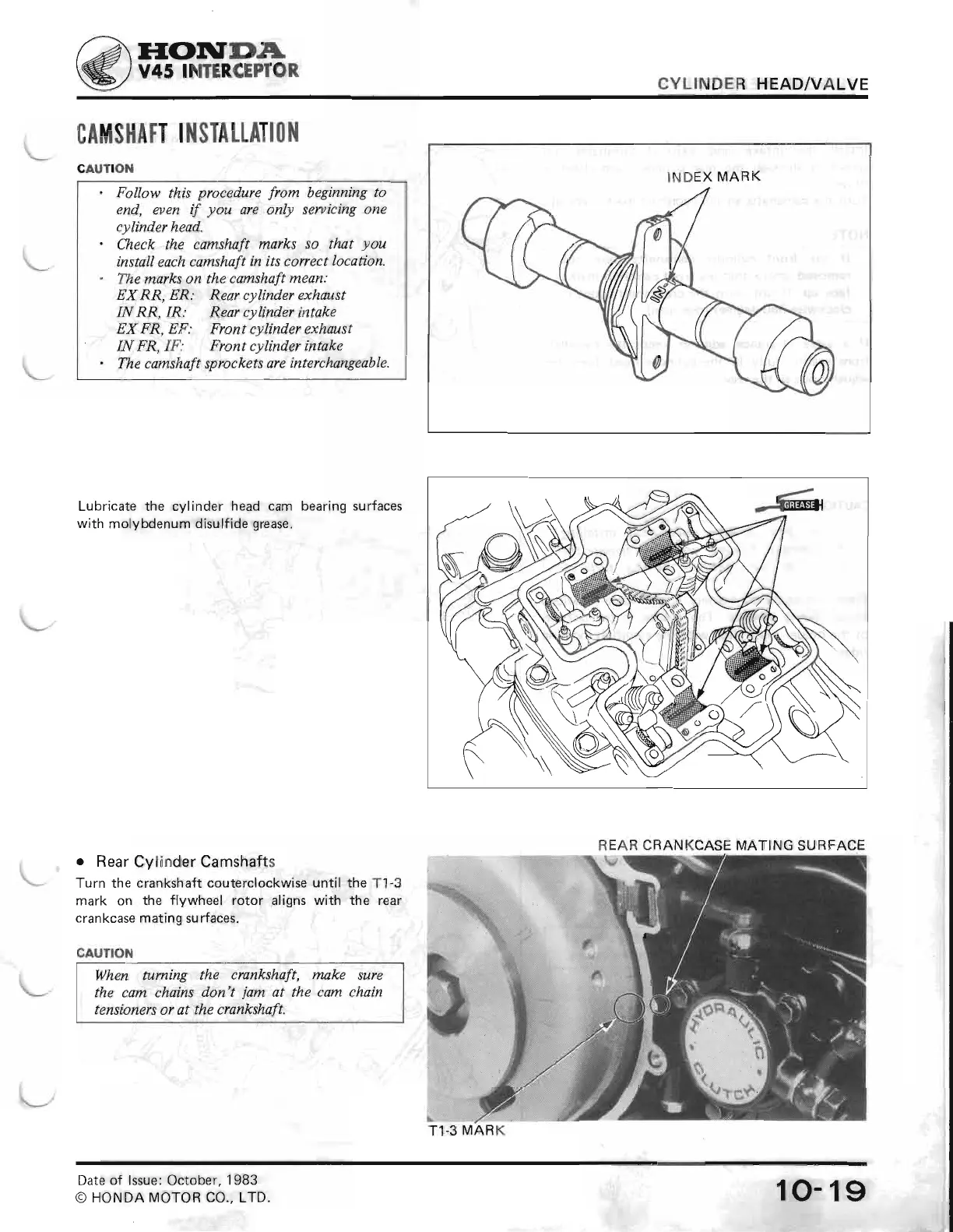

CAMSHATT
I1{STALLATION
Lubricate the
cylinder
head cam bearing surfaces
with
molybdenum disulfide
grease.
.
Rear Cylinder Camshafts
Turn the crankshaft couterclockwise
until the
T1-3
mark on the
flywheel rotor
aligns
with
the
rear
crankcase mating surfaces.
CAUTION
When
tuming
the
crankshaft, make
sure
the cam chains don't
jam
at the cam chain
tensioners or at the
crankshaft.
INDEX
MARK
REAR CRANKCASE
MATING
SURFACE
