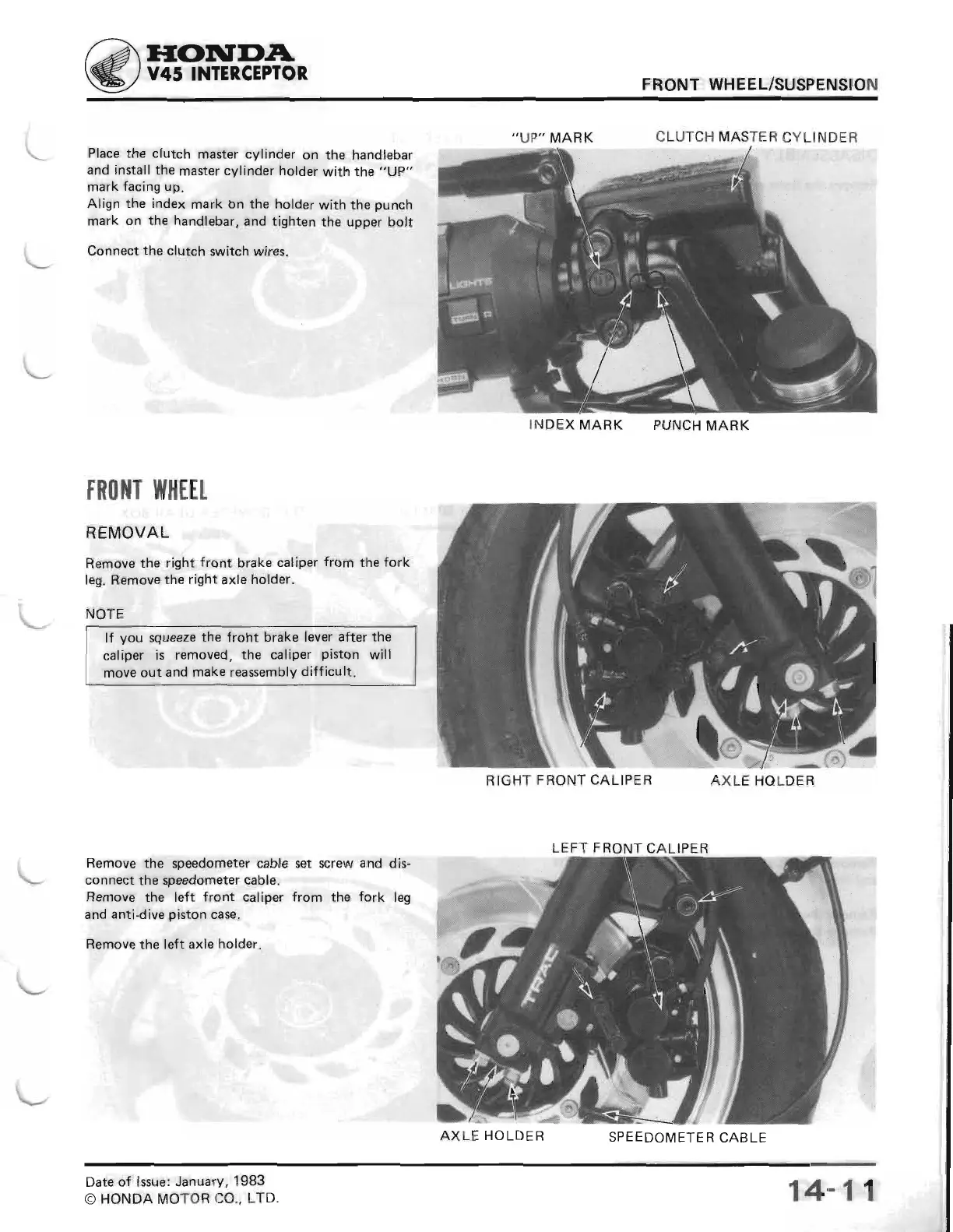

Honda InterceptorVF700F - VFR75001790022.PDF

IIONIXDA
V45
INTER,CEPTOR
\_
Place the clutch master cylinder on the handlebar
and install the master cylinder
holder
with the
"UP"
mark
facing up.
Align the
index
mark
bn the holder
with
the
punch
mark on
the handlebar, and tighten the upper
bolt
,
Connect
the clutch switch wires.
TROl{T
IT]|EET
REMOVAL
Remove
the
right
front brake
caliper
from the
fork
leg.
Remove
the
right
axle
holder.
NOTE
lf
you
squeeze
the
froht
brake lever
after
the
caliper
is
removed,
the
caliper
piston
will
move
out
and
make
reassembly
difficult.
,,UP"
MARK
RIGHT
FRONT CALIPER
FRONT
WHEEL/SUSPENSION
CLUTCH
MASTER
CYLINDER
AXLE HOLDER
Remove
the speedometer
cable
connect the
speedometer
cable.
Remove the
left
front caliper
and
anti-dive
piston
case.
Remove
the
left axle
holder.
set
screw and
dis-
from the
fork leg
INDEX
MARK PUNCH
MARK
LEFT
FRONT CALIPER
AXLE
HOLDER
SPEEDOMETER
CABLE
Date
of
lssue:
JanuarY,
1983
O
HONDA
MOTOR
CO.,
LTD.
14-11
