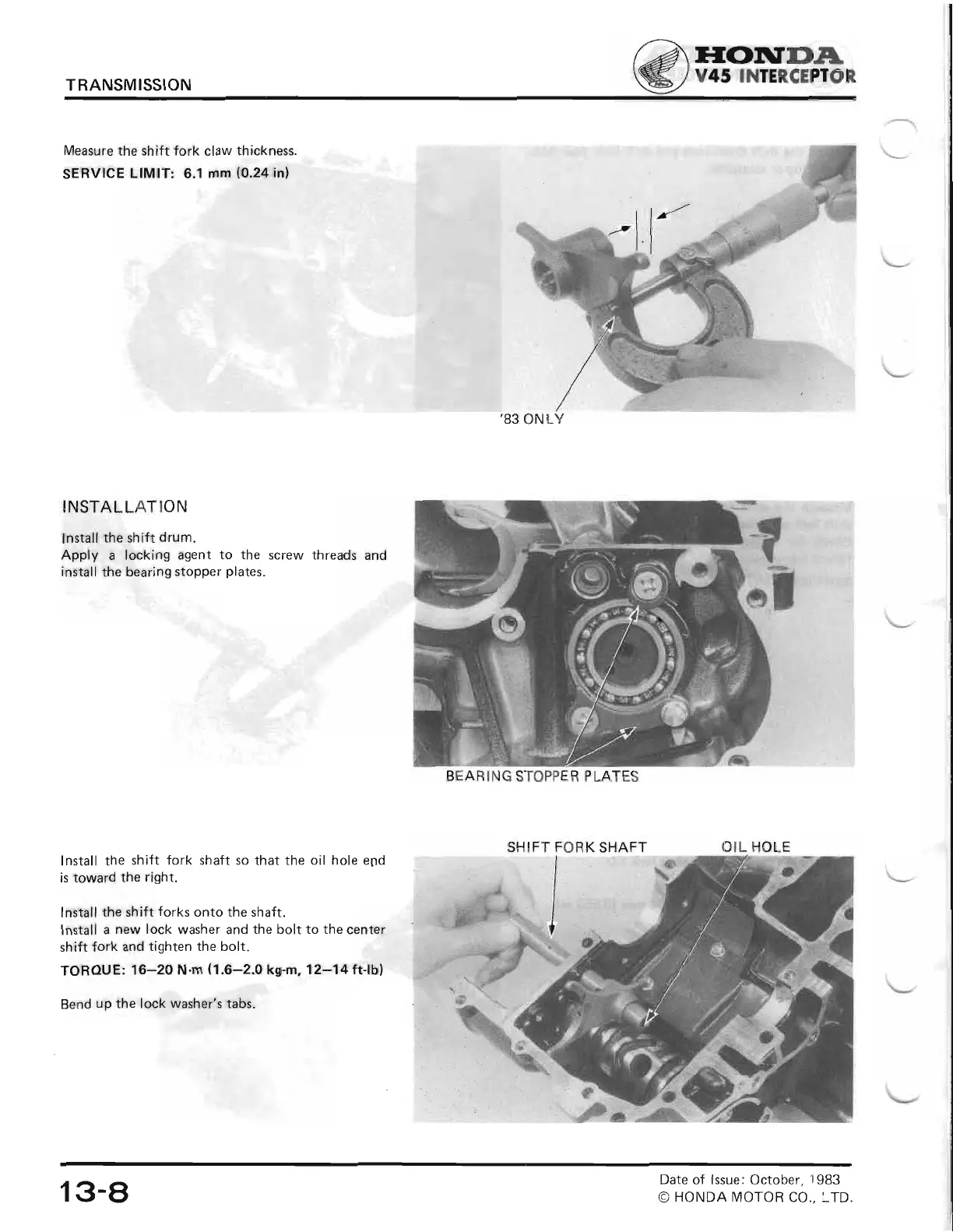

TRANSMISSION
rrorvxDA
V45 INTERCEPTOR
Measure
the shift fork
claw thickness.
SERVICE
LIMIT:
6.1
mm
(O.24inl
INSTALLATION
lnstall
the shift drum.
Apply a locking
agent to the
screw threads
and
install
the bearing
stopper
plates.
lnstall the
shift
fork
shaft so that the oil
hole
egrd
is
toward the right.
Install the
shift
forks
onto the shaft.
Install a new
lock
washer and the bolt to the center
shift
fork
and tighten the bolt.
TOROUE:
16*20 N.m
(1.6-2.0
ks-m,
12-14
ft-lb)
Bend
up the lock washer's tabs.
,83
ONLY
SHIFT
FORK
SHAFT
BEARING STOPPER
PLATES
OIL
HOLE
13-8
